StreamLight stinger - Maintenance and Specifications; Replacement Parts List

Length Weight Material Bulb Battery Maximum Charge Rate Charge Rate Continuous Charge Time Charge Time
Output (Fast Charger)
Run Time (Fast Charger)
Stinger
®
7 3/8” 10.3 oz. Aircraft T 1 1/2 Bi-Pin 3 Sub ‘C’ Up to 15,000 800 mA 180 mA 1 hour 10 hours 2.5 hours
Aluminum Xenon Welded Stick Candlepower
Stinger
®
HP
™
8 1/4” 12.2 oz. Aircraft T 2 1/2 Bi-Pin 3 Sub ‘C’ Up to 40,000 800 mA 180 mA 1 hour 10 hours 2.5 hours|
Aluminum Xenon Halogen Welded Stick Candlepower
Stinger XT
™
7.7” 11.1 oz. Aircraft T 1 1/2 Bi-Pin 3 Sub ‘C’ Up to 15,000 800 mA 180 mA 1 hour 10 hours 2.5 hours
Aluminum Xenon Welded Stick Candlepower
Stinger
®
XT HP
™
8 5/8” 14.6 oz. Aircraft T 2 1/2 Bi-Pin 3 Sub ‘C’ Up to 40,000 800 mA 180 mA 1 hour 10 hours 2.5 hours
Aluminum Xenon Halogen Welded Stick Candlepower
PolyStinger
™
7 3/8” 8.7 oz. Super Tough T 1 1/2 Bi-Pin 3 Sub ‘C’ Up to 15,000 800 mA 180 mA 1 hour 10 hours 2.5 hours
Nylon Xenon Welded Stick Candlepower
UltraStinger
®
11 3/4” 1.1 lbs. Aircraft T 2 1/2 Bi-Pin 5 Sub ‘C’ Up to 75,000 800 mA 180 mA 1 hour 10 hours 2.5 hours
Aluminum Xenon Welded Stick Candlepower
Replacement Parts
Item Quantity Part No. Description
1 1 750158 Tail Cap Assembly, Stinger XT & XT HP
2 1 750058 Tail Cap, Stinger XT & XT HP
750057 Tail Cap/Vent, Stinger, HP & UltraStinger
760057 Tail Cap/Vent, PolyStinger
3 1 850020 Battery Neg. Spring, Stinger XT & XT HP
4 1 750061 Switch Boot, Stinger XT & XT HP
5 1 850018 Switch Assembly, Stinger XT & XT HP
6 1 700025 O-Ring, Tail Cap (All)
7 1 75175 Battery; Stinger, HP, PolyStinger, XT & XT HP
77175 Battery, UltraStinger
8* 1 750009 Lens (Stinger, Polystinger, & XT)
20160 Lens, Stinger HP, UltraStinger & XT HP
9 1 75956 Facecap/Reflector Assembly, Stinger, HP, Ultra, XT & XT HP
76956 Facecap/Reflector Assembly, PolyStinger
10 1 750017 O-Ring, Head (All)
11 1 75914 Bulb; PolyStinger, Stinger & XT
78914 Bulb, UltraStinger
78915 Bulb, Stinger HP & XT HP
12* 1 Switch Module Assembly (w/item # 13, 14 & 17)
75140 Stinger, PolyStinger, UltraStinger & HP
75125 Lamp Holder, Stinger XT & XT HP
(w/item # 13, 14 & Ground Contact)
13 2 750006 Screw, Contacts (All)
14 1 750005 Charge Plate; Stinger, Ultra, HP, XT & XT HP
15 1 750277 Sleeve, Stinger HP, XT & XT HP
760015 Sleeve, PolyStinger
16 1 750075 Head/Barrel, Stinger XT & XT HP
750055 Head/Barrel, Stinger & HP
775055 Head/Barrel, UltraStinger
760555 Body/Sleeve, PolyStinger Black
760055 Body/Sleeve, PolyStinger Yellow
760855 Body/Sleeve, PolyStinger OD Green
17* 1 750016 Switch Gasket, Stinger, HP, PolyStinger & UltraStinger
18 1 775001 Reflector, UltraStinger, Stinger HP & XT HP (see detail B)
*Special tools required for assembly.

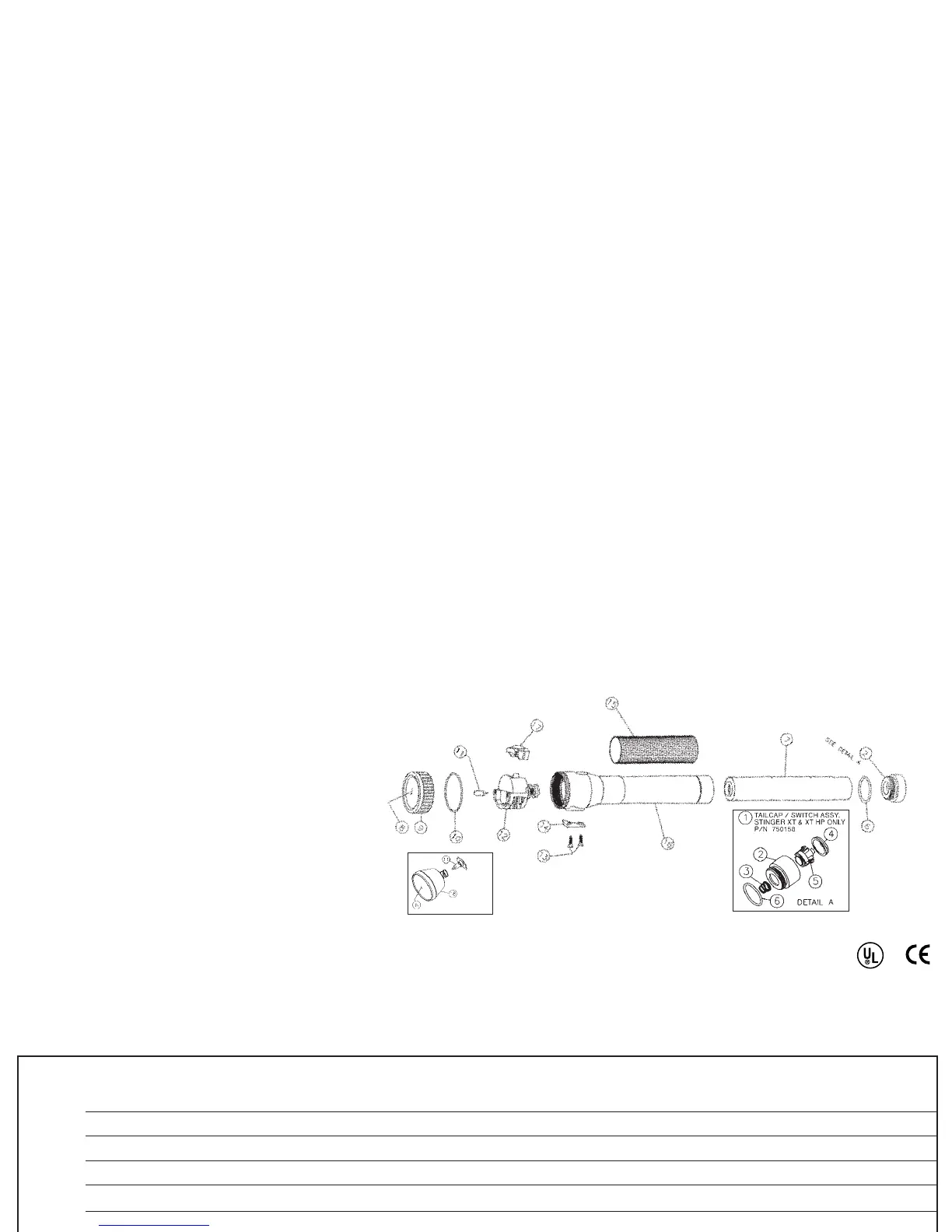

DETAIL B
* Stinger and PolyStinger Only
*
