Technical Parameters
Voltage Measurement Range: 6-18V DC.
Unit Operation/Buttons
8. Engine system operates normally
without fault codes
9. Engine system is abnormal and
there is pending fault code
10. Engine system has fault, and check
engine light is on.
Features and Functions
Main Menu
When the OBDII plug is connected to the vehicle OBDII socket the main menu will display on
the unit - to begin diagnostics turn the ignition key of the vehicle to standby.
Voltmeter function and battery level indicator.
Cranking System Test; Analyze the state of
the cranking system, display the cranking
voltage,and the cranking time.
Graphs of the waveform of the Cranking
System.
Charging System Test; Analyze the state of
the charging system, waveform of the ripple
test, unload and load voltage.
Easily determines the cause of the Check
Engine Light (MIL).
Turns off Check Engine Light (MIL), clears
codes and resets monitors.
Displays DTC definitions on unit screen.
Views freeze frame data.
Displays monitor and I/M readiness status
(emissions).
Identifies pending codes.
Read live PCM data stream.
Displays live O2 sensor test data.
Graphs data (1996 and newer).
Reads, stores & playbacks live sensor data,
DTC data and freeze frame data.
Performs modules present test.
Retrieves vehicle information (VIN, CIN
and CVN).
Supports CAN (Controller Area Network) and
all other current.
OBD-II protocols.
Built-in OBD-II DTC lookup library.
Large easy-to-read backlit LCD screen.

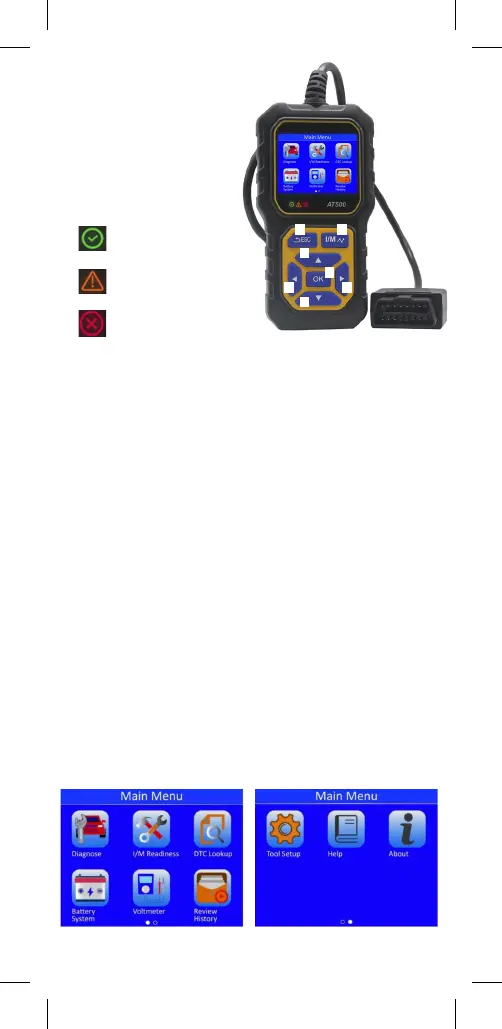

1. ESC: exit
2. I/M: quick enter I/M
Readiness
3. Up
4. Down
5. Left
6. Right
7. OK – Enter
