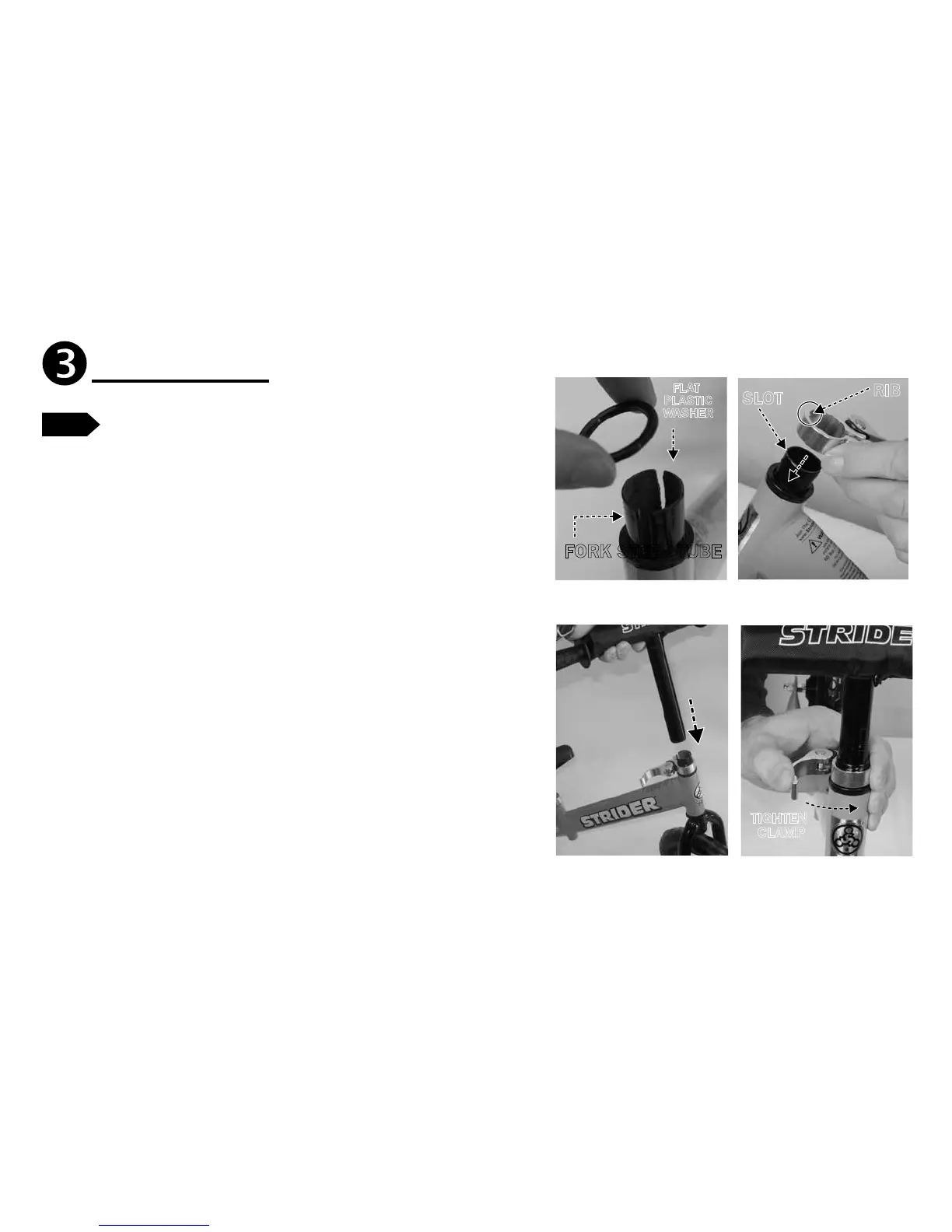

INSTALL HANDLEBAR
Fig 5.
Fig 6.
Fig 7.
Tip: Place front wheel between knees while kneeling on floor to steady the bike.
1. Install the flat plastic washer over fork steer
tube (Fig 5).
2. Install the Quick Clamp with lever open (Fig
6). Rib on clamp goes in slot on front of fork
steer tube (bolt should be towards back, lever
on right.).
3. Insert handlebar into steer tube at desired
height (Fig 7) For small child, put handlebar low;
older child, put handlebar higher. Note the
minimum insertion marking on handlebar. Always keep at
least 50mm inserted into fork steer tube.
4. Clamp the handlebar most of the way, making
sure it is aligned with the wheel, then close
clamp lever (Fig 8). Handlebar should be held
firmly in place.
Fig 8.
FLAT
PLASTIC
WASHER
FORK STEER TUBE
SLOT
RIB
TIGHTEN
CLAMP
