KNOW YOUR ICE AUGER
The safe use of this product requires an understanding of the information on the product and in this owner’s manual
as well as a knowledge of the project you are attempting. Before using this product, familiarize yourself with all
operating features and safety rules.
DIRECTION CONTROL SWITCH (FORWARD/REVERSE)
Your ice auger has a direction control switch (forward/reverse) for changing the direction of auger.
OPERATING LOCK LEVER
Setting this operating lock lever in the OFF position helps reduce the possibility of accidental starting when not in
use. When you want to use this auger, you must pull up on the operating lock lever (deadman’s switch) lock-
out trigger first. Then, press down the POWER button. Keeping both engaged simultaneously.
LED WORKLIGHTS
The two LED worklights, located on the bottom of the two handles, illuminate when the operating lock lever
and POWER button are engaged. This provides extra light for increased visibility. LED lights remain on for 30
seconds after switches are released.
BATTERY CONNECTOR
The battery connector is used to connect Powerhead with the Battery.
HANDLE
DIRECTION CONTROL SWITCH
(FORWARD/REVERSE)
POWER HEAD
LED WORKLIGHTS
AUGER SPIRAL
40V 5AH BATTERY
40V BATTERY CHARGING BASE
OPERATING LOCK LEVER
HEX WRENCH
COLLAR BOLT
BATTERY
CONNECTOR
ASSEMBLY
PACKING LIST
1 Powerhead
1 Collar Bolt
2 Hex Wrenches
1 40v 5Ah Battery (Model# LFV-B/LFV-BEU�
1 40v Battery Charging Base (Model# LFV-CB/LFV-CBEU)
1 Auger Spiral
UNPACKING
Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list
are included.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
W A R N I N G
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a
product that is not properly and completely assembled could result in serious personal injury.
W A R N I N G
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious personal injury.
W A R N I N G
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
Do not attempt to modify this product. Any such alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal injury.

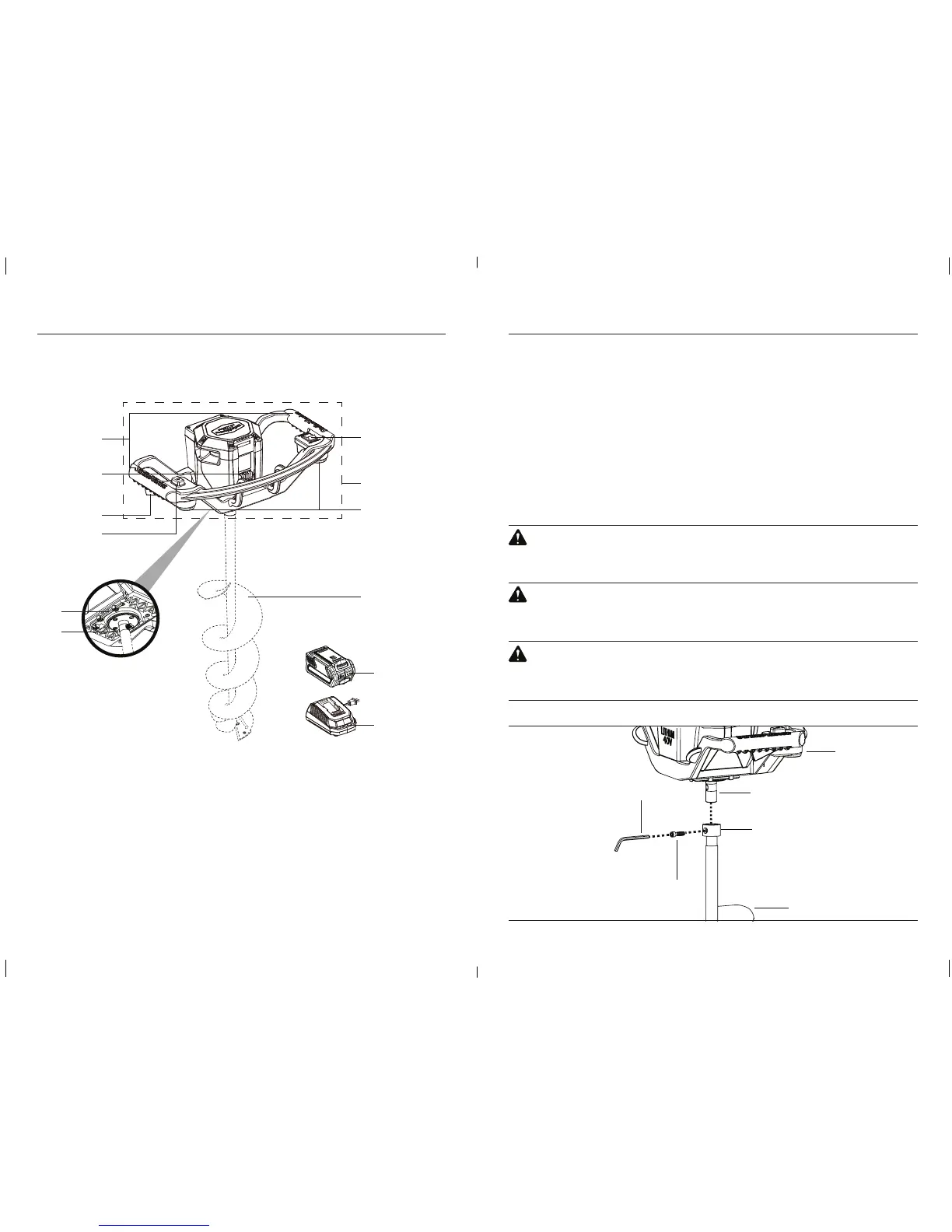

KNOW THE PARTS OF THE POWERHEAD
POWERHEAD
DRIVE SHAFT
COLLAR
COLLAR BOLT
HEX WRENCH
AUGER SPIRAL
To Next Page
