28 MA_141_142_A10-6-7-3-6-5_130617_en
5.3 Mounting and setting instructions for
STROBEL gathering device No. 314.0399
(see operating instructions – Working instructions)
The gathering device EV (Fig. 14) is fixed to the machine housing by two
screws 171.0607. In the housing you will find two threads which are closed by
two blind screws if the EV is not used.
When mounting EV note, that, after swivelling down guide 186.0195, this must
stop abt. 1 mm below the cup edge and abt. 5 – 6 mm on the right side of the
needle.

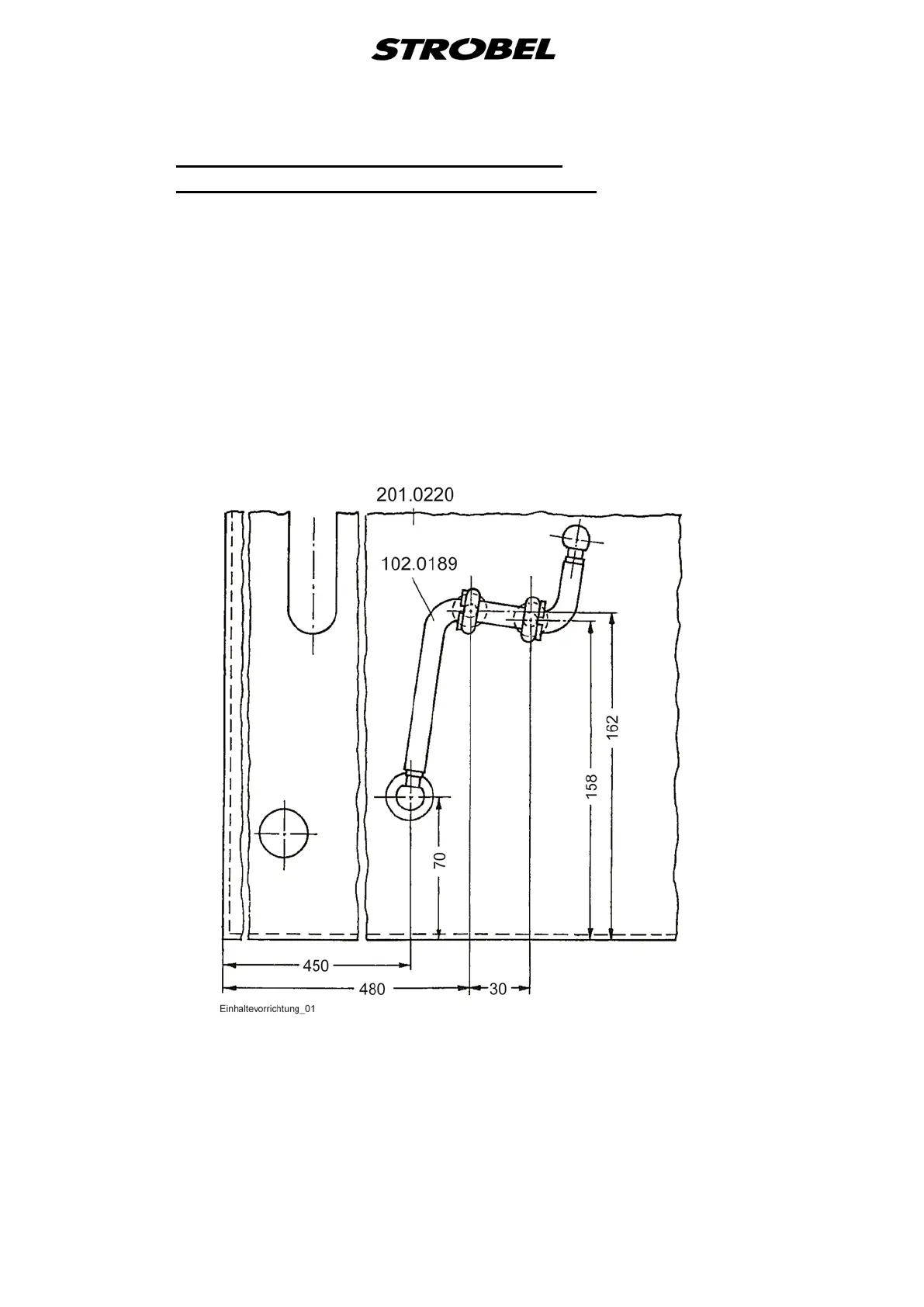

When mounting the EV to a machine originally supplied without EV, drill a
24 dia. boring for rod 133.0286 in the table top, according to Fig. 13.
Fig. 13
