Strobel VEB100-1 Mechanic's Instructions

35 MA_VEB100-1-2-2W-4-5_A3-1_190627_en.doc
3.7 Presser
ATTENTION!
Switch off the machine electrically!
There are different plunger shapes - round and roof-shaped - available for the 103
series to guarantee the best quality for each sewing process.
Exception: Cl. VEB100-4.
The VEB100 is equipped with a rigid, roof-shaped presser of radius 24.5 mm.
3.7.1 Replacing the presser shaft (Fig. 12)
- Remove cloth support arm extension.
- Remove cover 112.0062.
- Release clamp screw (1) at lever (6).
- Release set collar (5) and pull out the plunger shaft.
Remounting in the reverse sequence.
Readjust the left feed plate (12N) (26 N Cl. VEB100-4).
Set the plunger shaft free of any play.

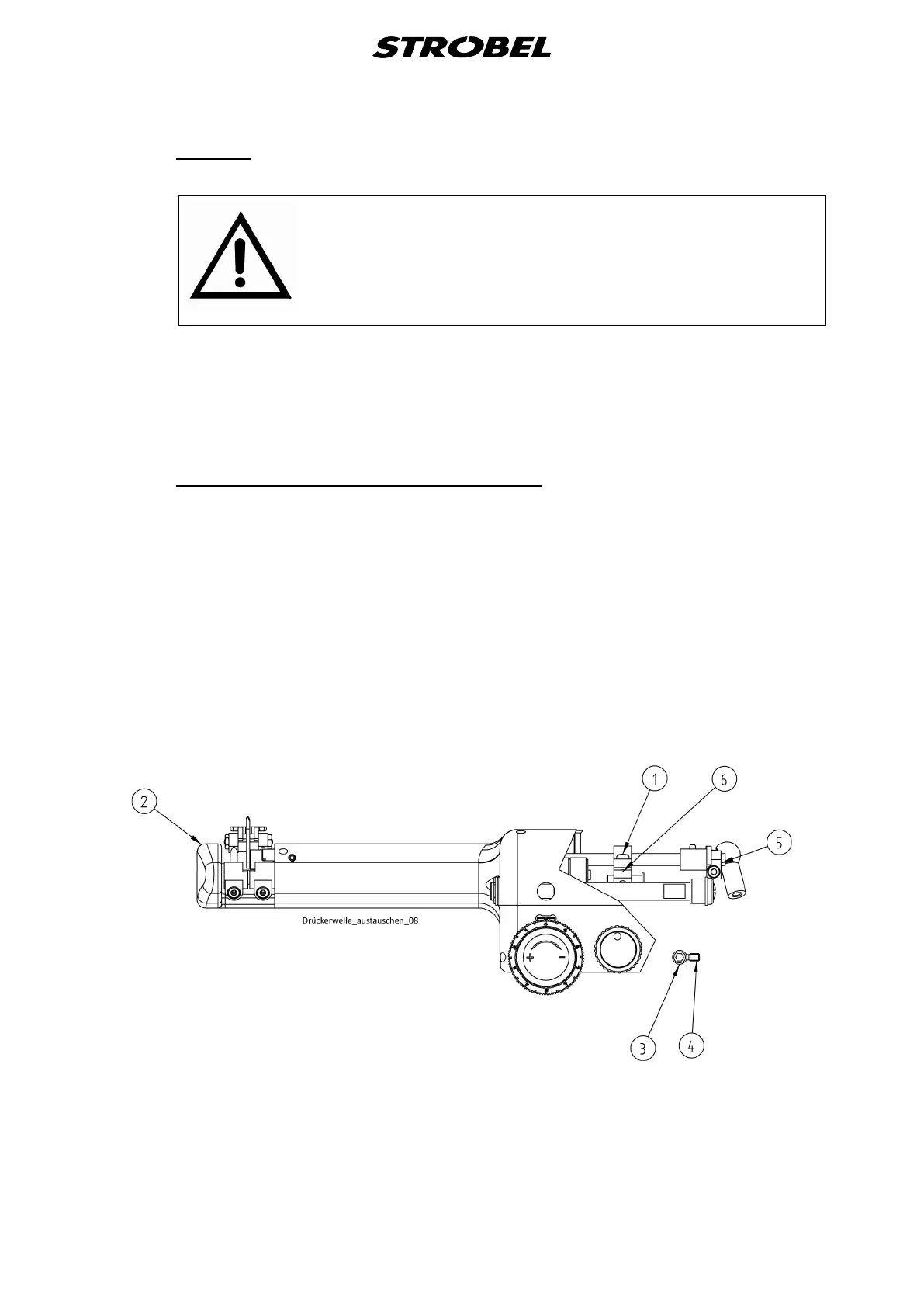

Fig. 12
