ENGLISH

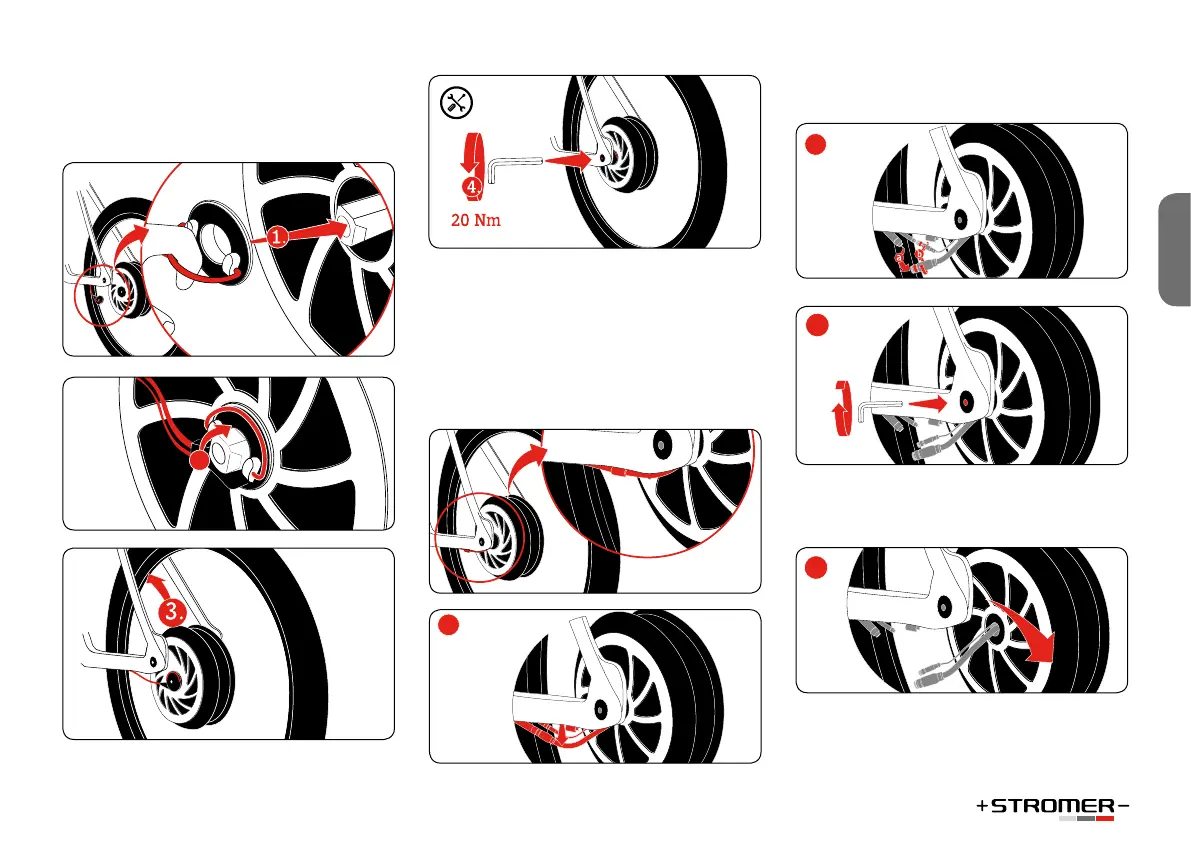

Reattaching the wheel
Proceed in reverse order of the removal to rein-
stall the wheel. Reattach the motor connector to
the hub before reinstalling the rear wheel.
Safely attach the running wheel in the frame or
fork, using the quick-release axle. The fastening
torque for the quick-release axles is 20 Nm.
Rear wheel removal and mounting for
the ST1X
Removal
• Pull the cable with plug down from the cable
guide (1).
• Unscrew both plugs and separate them (2).
• Loosen the quick-release axle by turning it
counterclockwise. Hold the wheel tightly to
keep it from falling. (3)
• Take the wheel down from the mounts. Also re-
move the chain from the sprocket (4).
