WARNING!
W
HEN THE DIFFERENTIAL LOCK IS ACTIVATED
(P
IC
.
5
B
)
BRAKES
ARE NOT WORKING SEPARATELY FOR LEFT AND RIGHT WHEEL
–
THERE
IS NO STEERING FUNCTION
!
Gear changing
- there are 7 gears available on MAESTRAL – 3 forward and 3 backward. Fourth
gear is possible only when the motor is in front and serves only for transport with
trailer or moving the machine to the working place. When we rotate the handle
bar the fourth gear is blocked! We choose the desired gear with lever on the left
side – No.8, the moving direction we choose with lever forward – backward on
the right side of the machine – No.5.
When changing gears you must use the clutch! Reduce the gas and
choose the desired gear with the lever (Pic. 8).

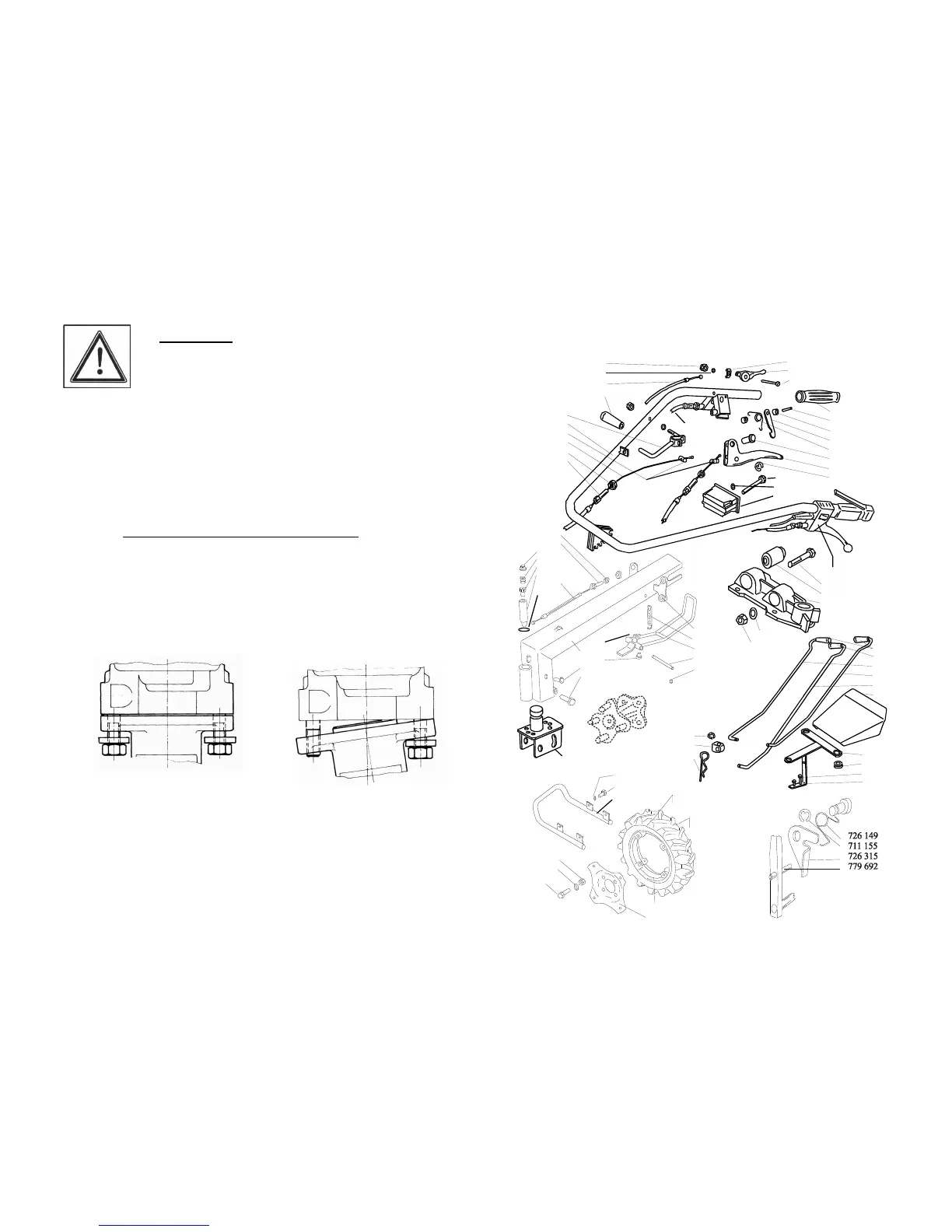

Mounting the attachments
- you mount the attachments on the basic machine with two (2) nuts (Pic. 13, 20)
- when mounting the machine must not run (safety switch released)
- when activating the attachments with lever 5 you must use the clutch (Pic. 8)
- by attachments with quick connection you change the attachments with pulling
out the cork and than change the attachment
Correct False
Pic. 20
-6-
7 1 0 5 2 6
7 4 3 2 0 9
7 4 4 4 8 3
7 1 7 8 2 2
7 1 9 8 0 1
7 2 4 5 0 7
7 2 2 6 4 7
7 4 3 7 6 6
7 5 7 1 1 0
7 2 7 5 2 1
7 1 0 5 2 9
7 1 0 6 1 9
7 1 0 6 0 7
7 1 0 4 4 8
7 1 1 1 6 5
7 7 9 6 9 6
7 5 7 1 1 3
7 5 6 9 1 5
7 1 1 1 5 5
