Structural Concepts Oasis Mobile Series - Condenser Package Layout: Model Co65 R and Co67 R Only

22

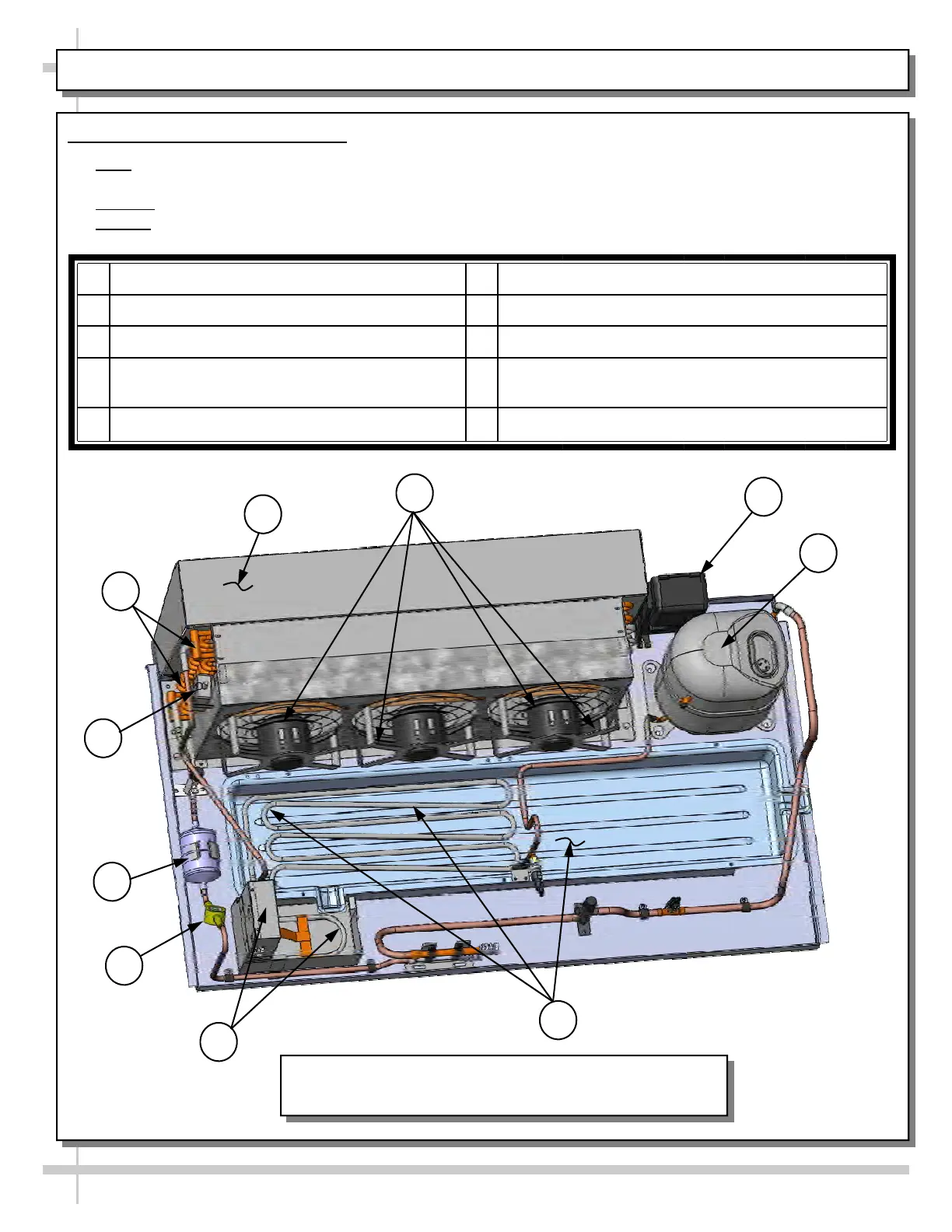

CONDENSER PACKAGE LAYOUT: MODELS CO65R AND CO67R ONLY
Typical Configurations, Continued
 Note: Unit shown below is for Model CO65R and CO67R only. Your model’s condenser package layout
may vary.
 Caution: Only certified refrigeration/electrical engineers or contractors are to access condenser unit.
 Access: Remove front grille by lifting up and off (no screw removal is required). Slide out.
4
6
10
7
1
3
2
1 Embraco® Compressor Start Components 6 Filter / Drier
2 Refrigeration Pump 7 Automatic Condenser Coil Cleaner Driver
3 Hot Gas Condensate Pan & Serpentine Rods 8 Condenser Coil Tubing
4 Electrical Coil Overflow Condensate Pan 9
Condenser Coil Shroud (Optional: May House
Clean Sweep™ Automatic Condenser Coil Cleaner)
5 Sight Glass 10 Fan Motors & Fan Shroud
EnergyWise Refrigeration Package for Model CO67R Shown.
See Accompanying Sheets for Other Models
5
8
9
