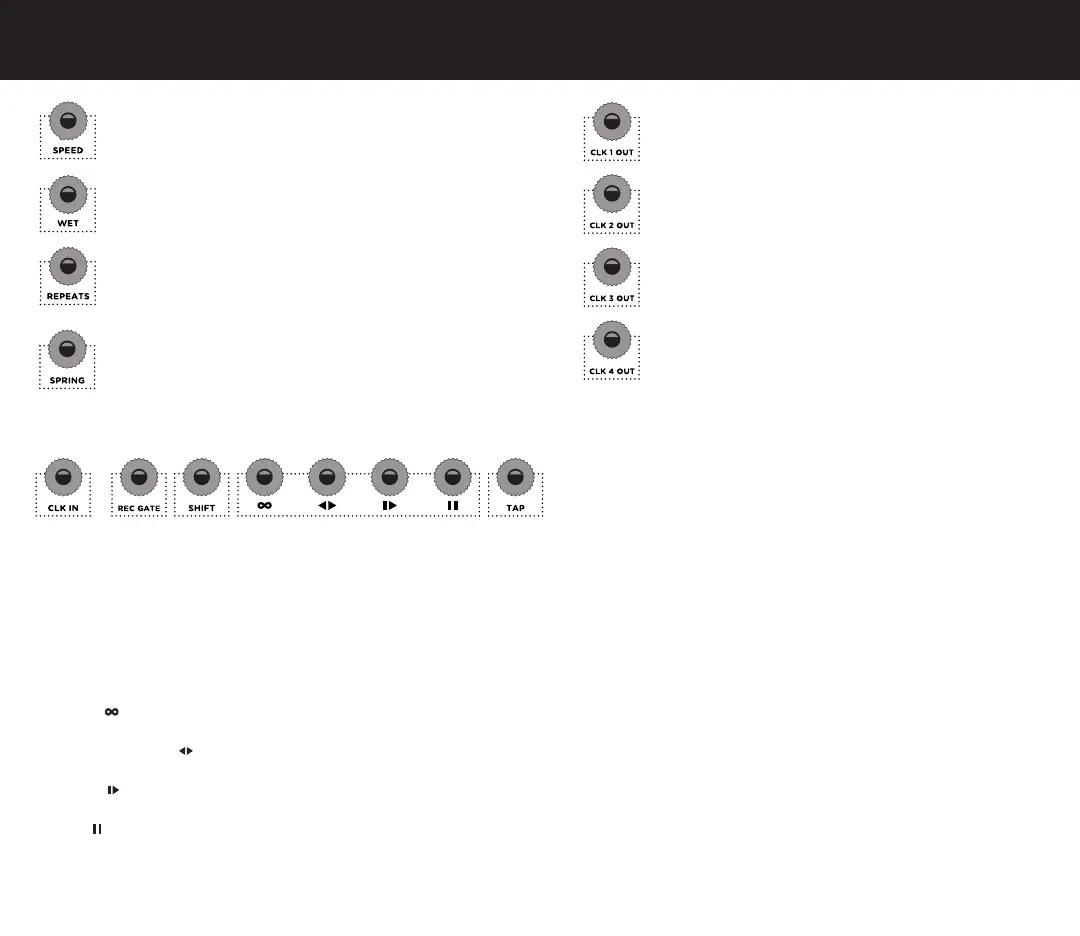

CV INPUTS (05V RISING EDGE TRIGGER)
CLK IN: Sets the delay time in quarter notes. (0 – 5v rising edge trigger) Clock
period range – 50ms to 15s.
REC GATE: Toggles the record head ON and OFF, REC LVL LED lit BLUE when
input signal to the delay line is muted.
SHIFT: Toggles the SHIFT effect for the Playback heads on and off.
INFINITE ( ): Toggles INFINITE transport control on and off.
FORWARD/REVERSE ( ): Toggles the FORWARD/REVERSE transport function.
RESTART ( ): Engages the RESTART transport function.
PAUSE ( ): Toggles the PAUSE transport function.
TAP: Controls the function of the physical TAP button. Sets delay time in ECHO
mode. Sets splice in/out/clear in LOOP mode. Sets sample record start/stop/clear
in SAMPLE mode.
CONTINUOUS CV INPUTS (5V TO +5V)
The knob corresponding to the continuous CV inputs acts as an
offset that is mixed with the CV input.
SPEED: Controls the tape speed. (-3V to +3V, calibrated for
1V/octave).
WET: Modifies the WET level.
REPEATS: Modifies the REPEATS level.
SPRING: Modifies the SPRING reverb level.
CONTROL VOLTAGES
CV CLOCK OUTPUTS
CLK 1- 4 OUTs: Send clock outputs of Playback heads 1-4.
Dependent on the HEADS switch setting and the ECHO/LOOP/
SAMPLE mode setting. Output clocks are always at 50% duty
cycle and are phase aligned with incoming Clock or Tap signals.
Examples are for a clocked or tapped delay time of 1000ms.
ECHO MODE
EVEN:
CLK 1 OUT: 1/16 note clock output (ex. 250ms)
CLK 2 OUT: 1/8 note clock output (ex. 500ms)
CLK 3 OUT: dotted 1/8 note clock output (ex. 750ms)
CLK 4 OUT: 1/4 note clock output (ex. 1000ms)
TRIPLET:
CLK 1 OUT: 1/16 note triplet clock output (ex. 167ms)
CLK 2 OUT: 1/8 note triplet clock output (ex. 333ms)
CLK 3 OUT: 1/4 note triplet clock output (ex. 667ms)
CLK 4 OUT: 1/4 note clock output (ex. 1000ms)
SHIFT:
CLK 1 OUT: 1/8 note triplet clock output (ex. 333ms; 3x speed)
CLK 2 OUT: 1/8 note clock output (ex. 500ms; 2x speed)
CLK 3 OUT: 1/2 note clock output (ex. 2000ms; half speed)
CLK 4 OUT: 1/4 note clock output (ex 1000ms; full speed)
In LOOP and SAMPLE modes, CLK1, CLK2, and CLK3 are the
same as in ECHO mode, but CLK4 is the loop or sample length
clock output.
