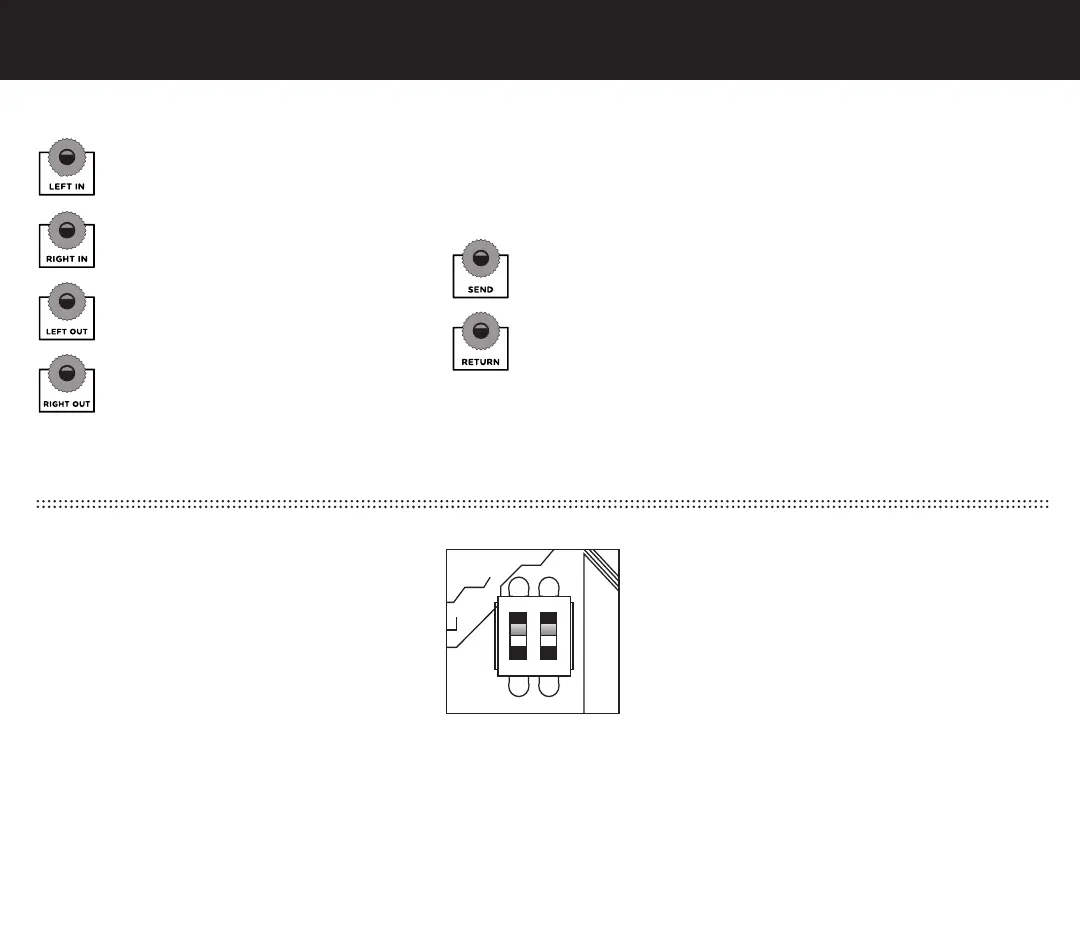

S1-S2 DIP SWITCHES (REAR PANEL)
AUDIO INS AND OUTS
S1 - FEEDBACK CV MODE:
ON: Allows CV trigger control of the FEEDBACK ON/OFF
buttons when transport CV jack is plugged in while Transport
LED is OFF. Also provides CV control of the Transport
controls when a CV jack is plugged in when Transport LED is
RED. Each transport CV can be assigned to either Transport
or Feedback ON/OFF.
OFF: Standard CV control of transport whenever transport CV
jacks are plugged in. (DEFAULT is OFF.)
S2 - DUAL SPLIT MODE:
ON: Selects Dual Split mode where LEFT audio IN/OUT is a
mono four head tape delay, and RIGHT audio IN/OUT is mono
spring reverb.
OFF: Standard stereo IN/OUT with the delay signal feeding
into the Spring reverb. (DEFAULT is OFF.)
INS AND OUTS FEEDBACK LOOP
LEFT/RIGHT IN: Left and Right audio
inputs. Use LEFT IN for mono input.
SEND: Summed input signal + delay repeats are sent out to be
processed by other devices.
LEFT/RIGHT OUT: Left and Right audio
outputs. If only one output is connected,
Delay output sums to mono.
RETURN: Externally processed signal is returned and fed to
the Record Head.
Delay repeats are summed to mono when both SEND/RETURN jacks are
connected; dry signal retains stereo image.
An insert between the summed input signal + delay repeats and the Record
Head. Can be used for sending delays and loop playback out to be processed
by external effects via the SEND jack, and looped back into Magneto via the
RETURN jack.
