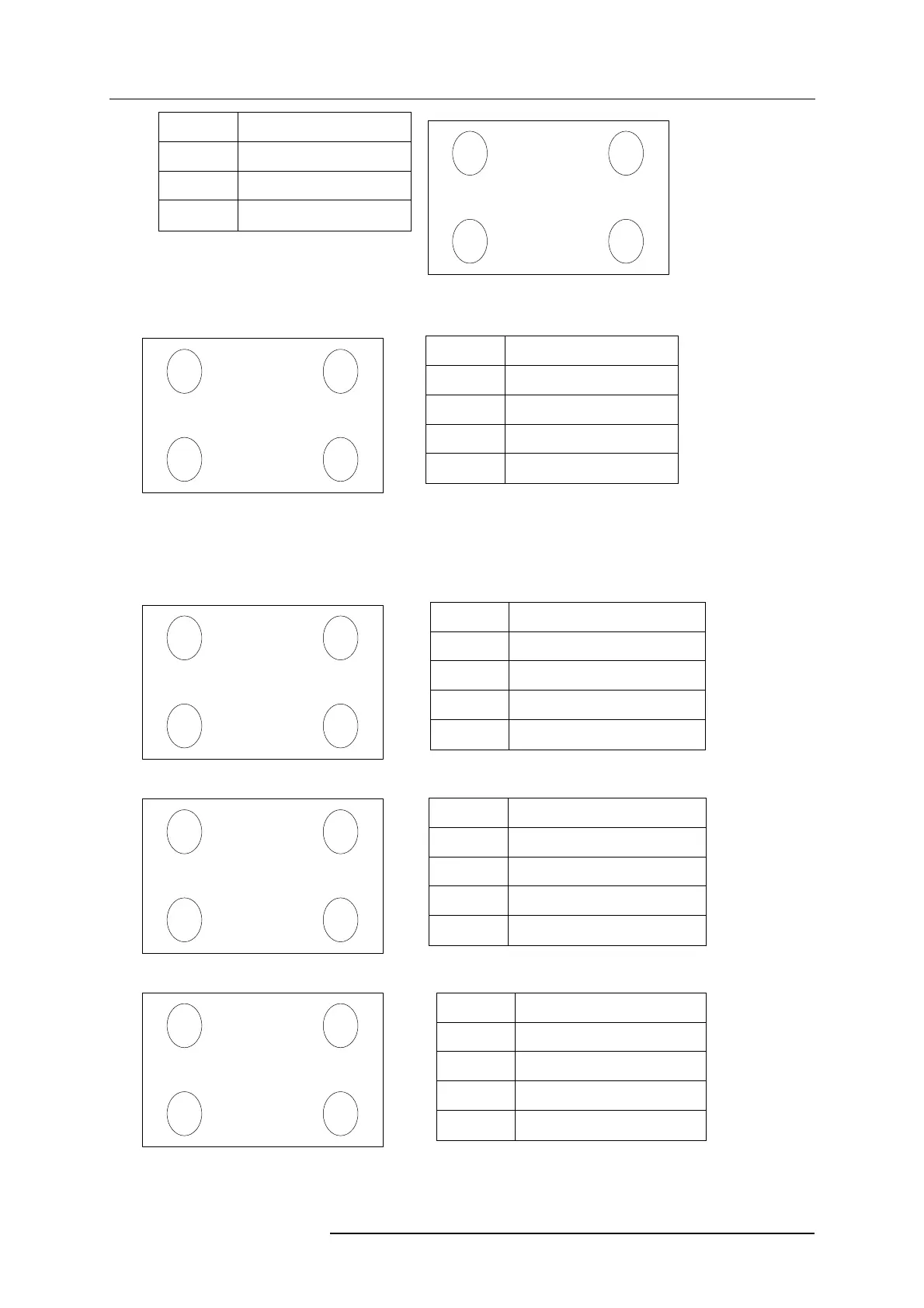

STS 1600 - Relay Configurations Y13, Y14, Y16, Y17, Y6

Rev. 2.0
20
10-DA Dehumidification Y11
2 3+
1 4-
Relay:Drying Y17
10-DA Drying Y17
2 3+
1 4-
Relay:Heating Y13
10-DA Heating Y13
4- 1+
3+ 2-
Relay:Heating Y16
25-DA Heating Y16
4- 1+
3+ 2-
Relay:Heating Y6
25-DA Heating Y6
4- 1+
3+ 2-
Relay:Heating Y14
Y11-1 T4-K1
Y11-2 DA-Y10-1
Y11-3 Y13-3,Y16-3
Y11-4 PLC-Y11
Connection Location
Y17-1 T2-L2
Y17-2
Quick Connector
Y17-3 Y16-3,Y6-3
Y17-4 PLC-Y17
Connection Location
Y13-1 Y16-1
Y13-2 Heating Lamp--Live Wire
Y13-3 DA-Y10-3,Y11-3
Y13-4 PLC-Y13
Connection Location
Y16-1 Y13-1,T2-K2
Y16-2 Heating Lamp--Live Wire
Y16-3 Y11-3,Y17-3
Y16-4 PLC-Y16
Connection Location
Y6-1 Heating Lamp--Live Wire
Y6-2 T2-K2
Y6-3 Y17-3,P1-V+2
Y6-4 PLC-Y6
