- 16 -
Cont ...

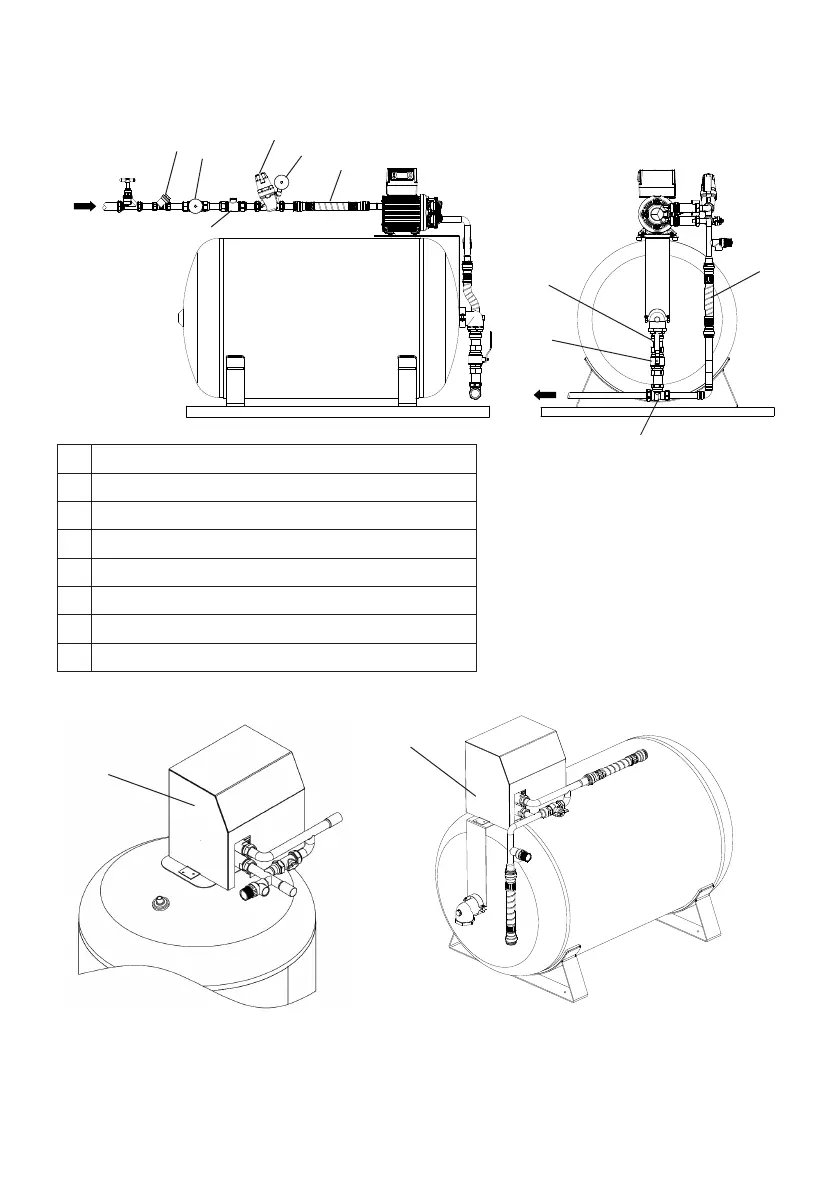

Horizontal vessel
- completed installation
An attenuation cover (A) is available as an option should the unit need to be installed in
a particularly noise sensitive area.
1 Inline strainer
2 Pressure gauge (upstream)
3 Double check valve
4 Pressure reducing valve
5 Pressure gauge (fitted to pressure reducing valve)
6 Mainsboost vessel connector
7 Lever isolating valve
8 28 mm x 28 mm x 22 mm tee
Vertical
Fig. 23
A
Inlet
Outlet
1
2 (T-piece
not supplied
4
5
Flexible
hose
6
7
8
Flexible
hose
3
Fig. 22
Horizontal
Fig. 24
A
