Studer variotrack User Manual

98
 BAT   PV 
INPUT 0-150Voc
(0-75 Voc @ 12Vdc)
12/24/48V
2’
! 80V

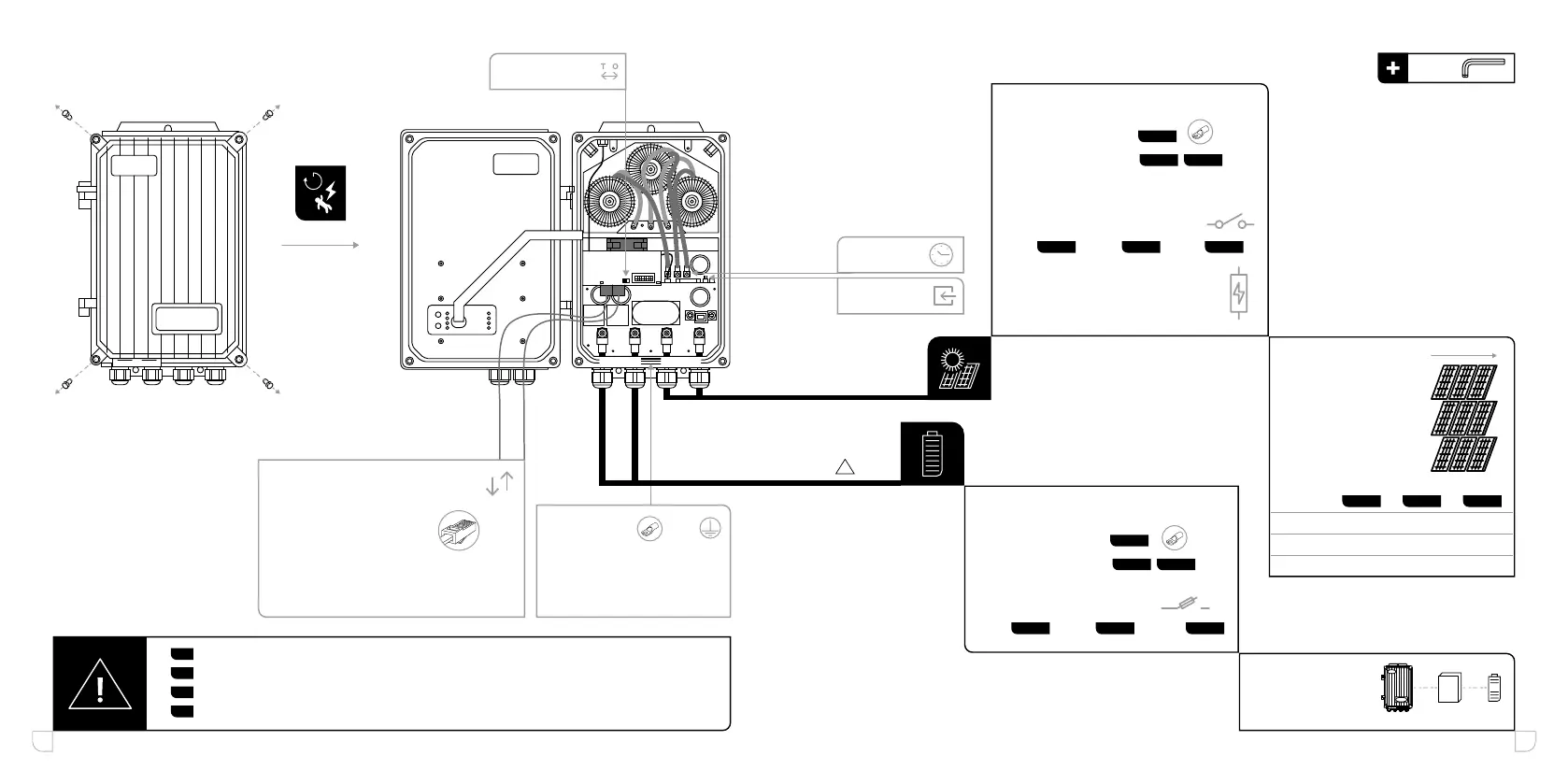

Wiring
Communication
• 2x RJ 45 black at cable :
rcc 02/03 / multi-units :
xtender, vt, vs, bsp, xcom
• 1x RJ 11 black at cable for accessories :
bts 01, arm 02
PV connection
• 10mm
2
cable M5, 5Nm
vt 40
• 25mm
2
cable M6, 5Nm
vt 65 vt 80
Protection device (PV side)
Switching device, max solar current
• 35A
vt 40
/ • 60A
vt 65
/ • 75A
vt 80
Overvoltage protection, SPD (150Vdc)
In series, up to 150Voc
(75 Voc @ 12Vdc)
In parallel, see
recommended power*
EN
The device must be installed in accordance with local standards and regulations in force.
FR
L’appareil doit être installé conformément aux normes et réglementations locales en vigueur.
DE
Das Gerät muss gemäß den geltenden örtlichen Normen und Vorschriften installiert werden.
ES
El dispositivo debe instalarse de acuerdo con las normas y regulaciones locales vigentes.
Earthing
• 16mm
2
cable
• The solar generator must be
class II isolated
remote entry
RTC battery
bus termination
5mm
Battery
vt 40 vt 65 vt 80
12V 625W 1000W 1250W
24V 1250W 2000W 2500W
48V 2500W 4000W 5000W
Battery connection
• 16mm
2
cable M5, 5Nm
vt 40
• 25mm
2
cable M6, 5Nm
vt 65 vt 80
Protection device (battery side)
• 50A
vt 40
/ • 80A
vt 65
/ • 100A
vt 80
Lithium batteries
communication
BMS CAN
xcom CAN
CAN Li
