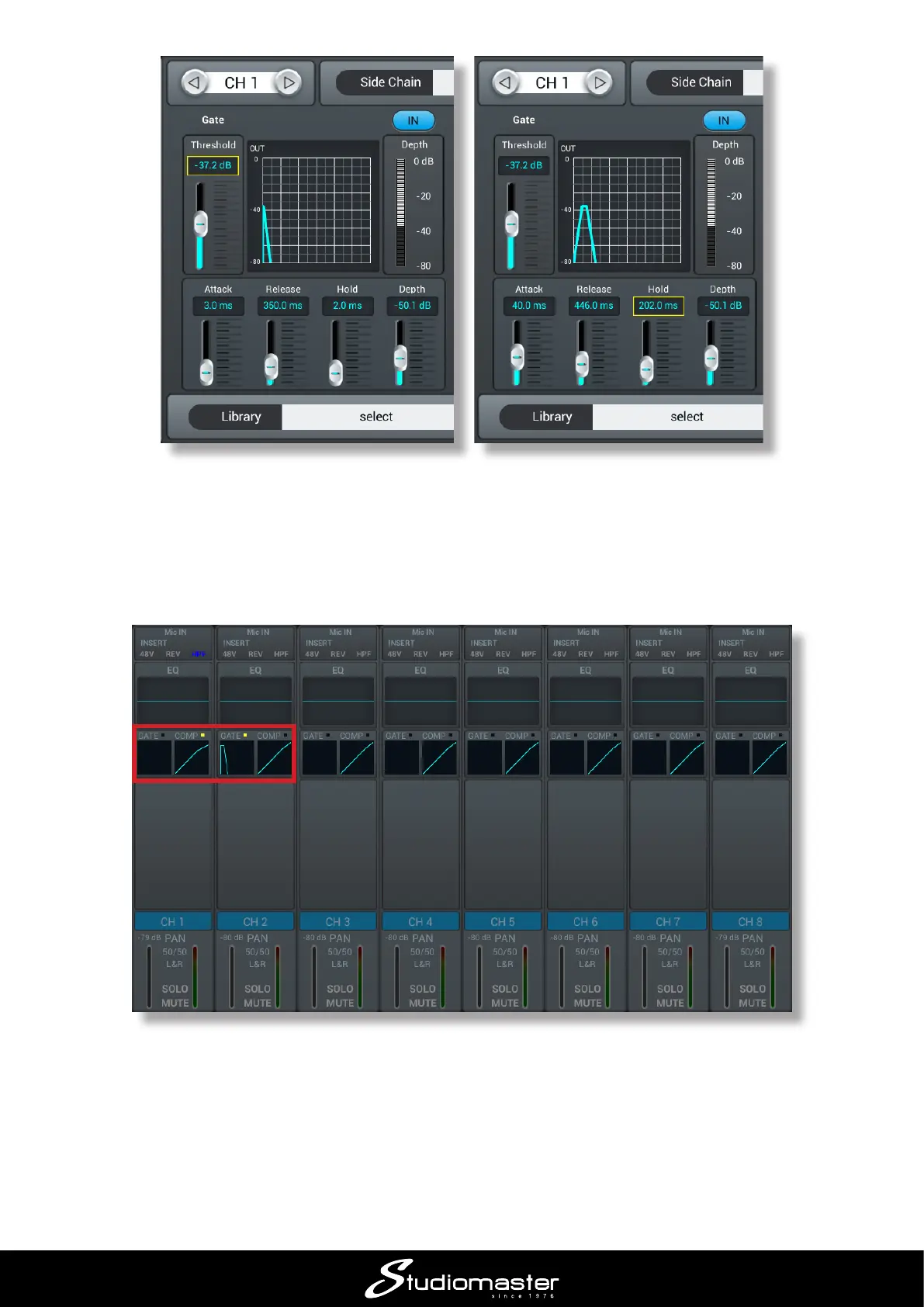

The Depth meter to the right of the graph shows you what the gate is doing; the meter will show
0 dB when the gate is triggered and -80 dB when fully closed: note that it also gives you a clear
idea of how the Attack, Hold and Release settings aect the operation.
Note that a miniature version of the dynamics section graphs for each input is displayed on the
main channel page.
