Furthermore, check that:
• There’s room enough for an easy installation and maintenance of the unit: please check dimensional drawings,
with particular attention to the accessibility of water / refrigerant connections and wiring. There must be a clearance
of 0.8 m from both front and back sides of the unit for installation and maintenance.
• Air circulates correctly, avoiding any short circuit, re-circulation or by-pass.
• Avoid any obstacle in the air flow.
• Unit base is perfectly horizontal so that the unit will operate correctly and that condensate will drain properly. Units
have adjustable supports for this purpose.
6.2 Preliminary operations
• Open the front panel with a male triangular wrench to check unit data plate. Then close it again.
• Open the rear panel with a male triangular wrench. You will find unit documentation. Read it carefully and prepare
for connection of cooling circuit.
• Once the unit is placed for good, adjust its supports to have the base in a perfectly horizontal position. Supports
are adjustable to a maximum height of 80 mm.
• Locate passage positions of refrigerant / chilled water pipes, as well as of condensate discharge, electric cables,
humidifier connections (when present).

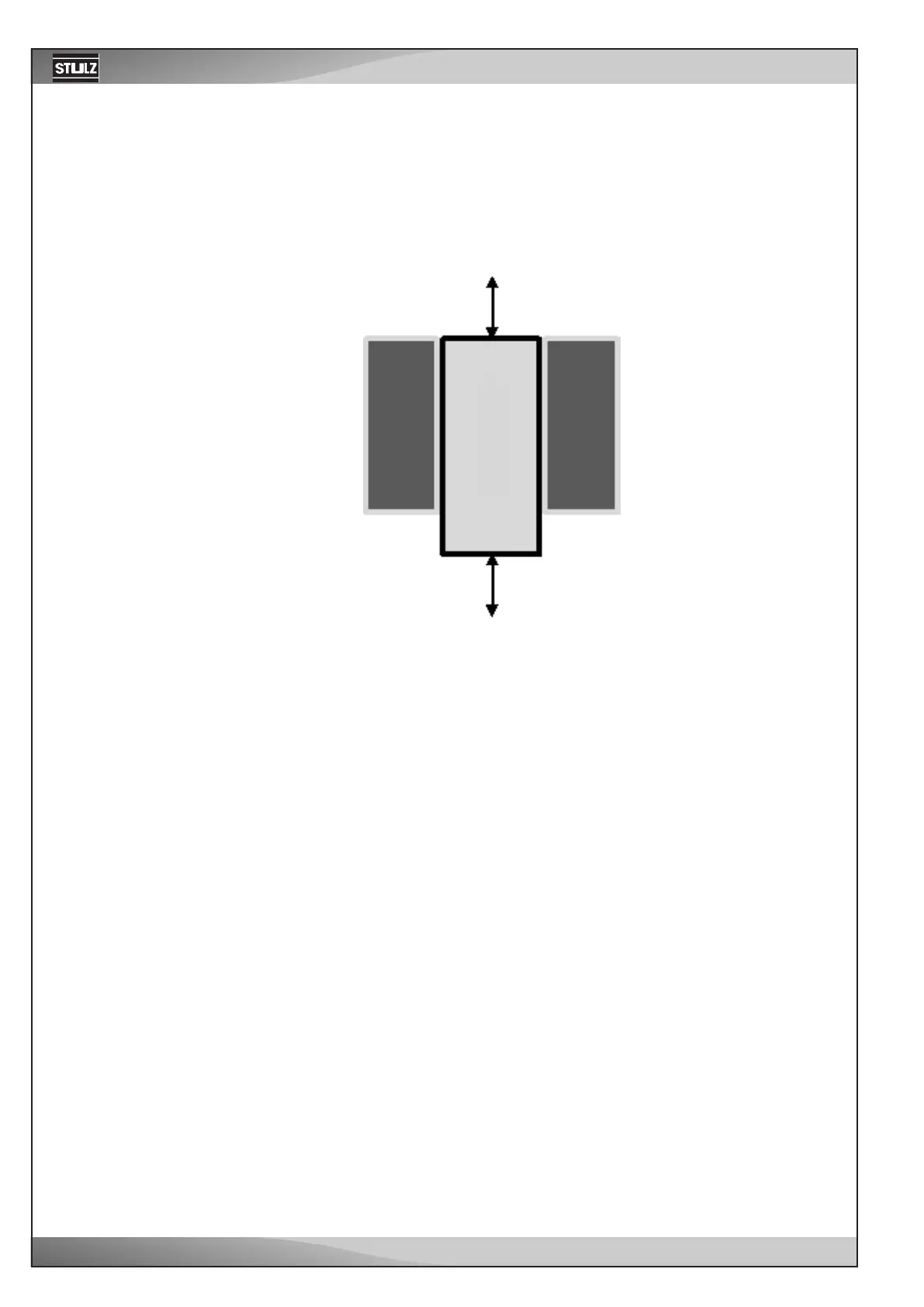

Minimum rear clearance 0.8 m
Minimum front clearance 0.8 m
