CYBERWALL™ INSTALLATION, OPERATION AND MAINTENANCE MANUAL
The installer must install a customer-supplied drain hose or pipe to the end of the condensate drain pipe. No
P-trap is required.
Drain lines must not be exposed to freezing temperatures. The diameter of the drain lines should be the full
size of the connection.
NOTE
Pour some water into both condensate drain pans prior to start-up. This fills the traps and prevents air
from being drawn up the drain lines.
CAUTION
Do not use chloride-based water conditioning additives in condensate drain pans. They will corrode the
coil fins.
Facility Power Connection
The bottom module has a nameplate installed. Examine the nameplate to determine the operating voltage,
frequency and phase of the system to verify they are as expected before making electrical connections.
The nameplate provides the full load amps (FLA), the current the unit will draw under full design load, the
minimum circuit ampacity (MCA) for wire sizing, and the maximum fuse or HACR (Heating, Air Conditioning,
Refrigeration) breaker size (MAX FUSE/CKT BKR) for circuit protection.
Manufactured By
Dayton, Tenn, USA
www.stulz-ats.com
Cage Code OB716
Tel: (301) 620-2033
Fax: (301) 620-1396
Sales Order Number: 479429
10
Model Number: C AH-664-060K-C-O-H
Item Number: 2 07548
Serial Number: xxxxxxxxxxxx
Electrical Data:
SCCR: 65kA RMS Symmetrical
Volta
e: 460 Phase: 3 Hz: 60
No. Wires: 4 (Includin
Ground)
FLA: 6 1.3 MCA: 6 3.8
Max Fuse/Ckt. Bkr (HACR type per NEC): 70 A
Heater: - kW (Nominal)
Humidifier: - kW (Nominal)
AC Induction Motor (1):HP:7.5 FLA: 9.8
AC Induction Motor (2):HP:7.5 FLA: 9.8
AC Induction Motor (3):HP:7.5 FLA: 9.8
AC Induction Motor (4):HP:7.5 FLA: 9.8
AC Induction Motor (5):HP:7.5 FLA: 9.8
AC Induction Motor (6):HP:7.5 FLA: 9.8
Max. Out
ut Air Tem
erature: - ºF
Blower/Fan Ext. Static Press.: 0 .2 in. w.g.
Max. Inlet Hot Water Temp.: - ºF
Hot Water or Steam Pressure: - psig
Minimum Installation Clearance: 0.0 in.
Remote Condenser Type: -
Suitable for Indoor: Outdoor: Use
Date of Manufacture: 9/22
Q.A. Acceptance:
SATS
1
NAMEPLATE LOCATED INSIDE
ELECTRICAL DOOR OF LOWER
MODULE.

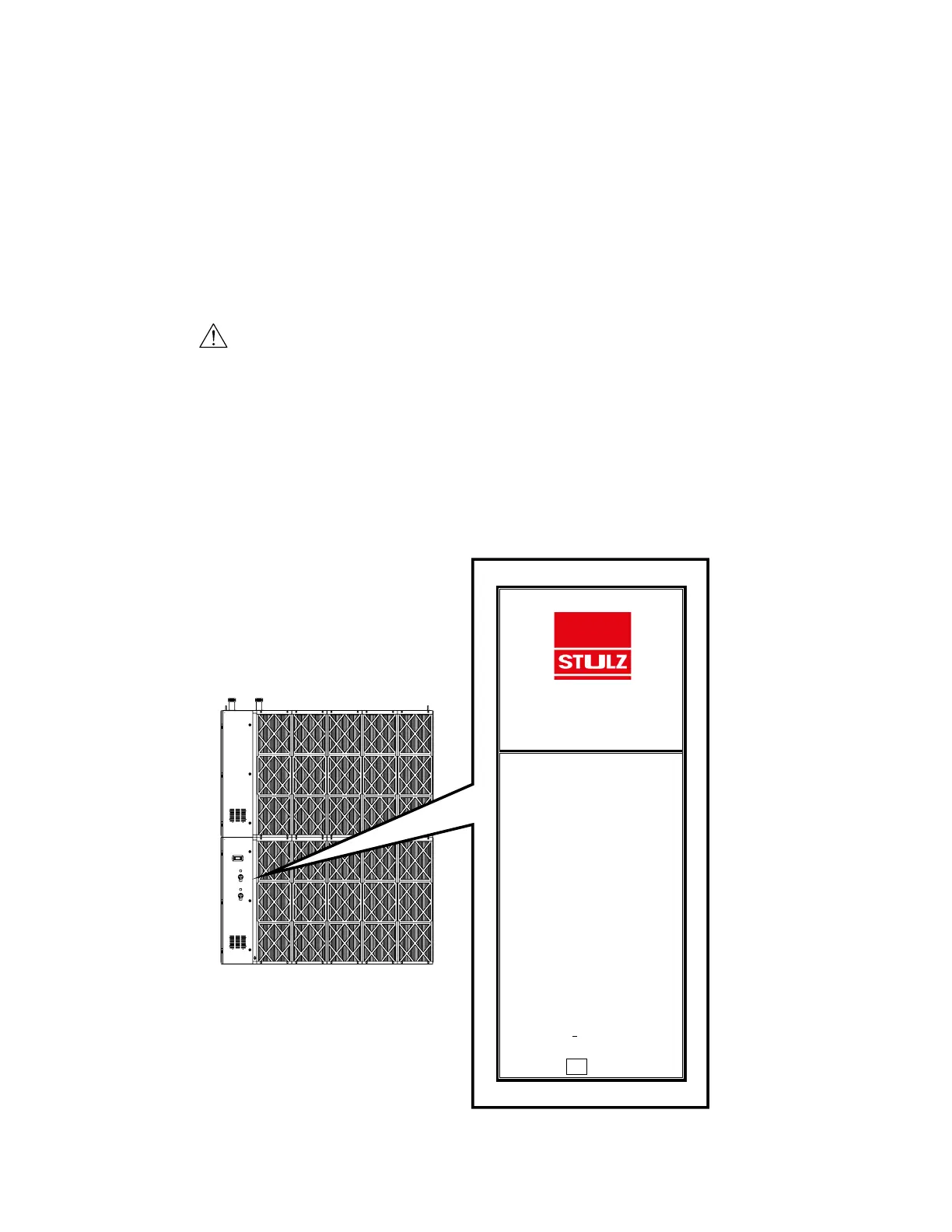

Figure 10. Example CyberWall™ Nameplate
