6.2 Opening the A/C unit

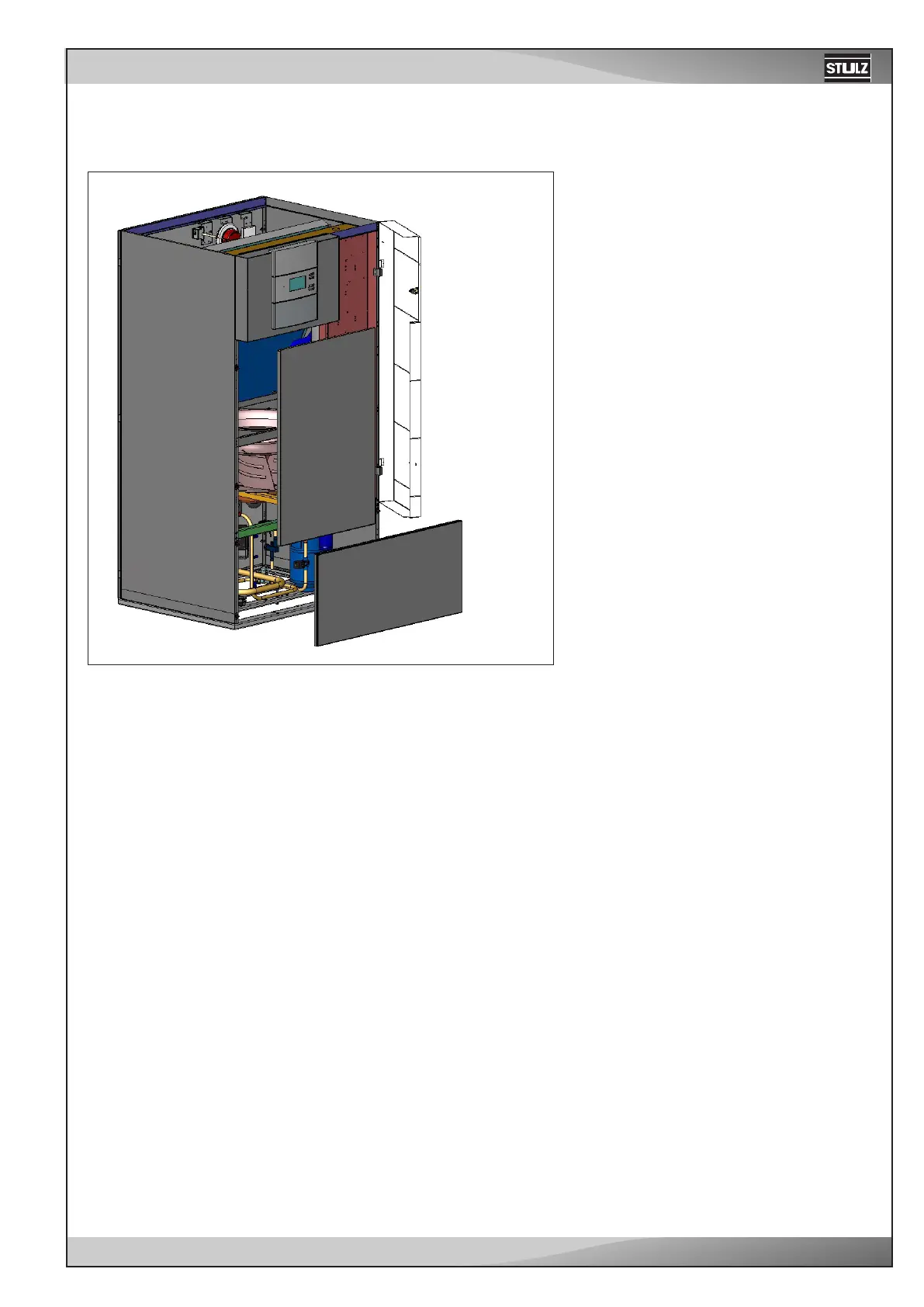

The A/C unit is opened by opening the elec-
trical compartment door and by removing
two front panels
The panel in front of the low temperature sec-
tion is secured by ball pins and can be remo-
ved without auxiliary equipment. To remove
the front panel in front of the air section, first
open the electrical compartment door using
the male triangular wrench provided.
All maintenance measures can be performed
from the open front of the A/C unit.
6.3 Connection of the piping
6.3.1 Refrigerant piping (A units)
To design the piping between the A/C unit and the condenser follow the instructions in chapter "2. Refrigerant piping"
of document "General-DX". This document is available in the e-Stulz area.
6.3.1.1 Design
