Water Line
For model IW-30CI, approximately 3' (.9 m) of
1
/4" plastic
tubing is connected to the unit with a preassembled
1
/4"
compression connection under the unit. The water line t-
ting connection kit, provided with the unit, contains a
1
/4"
compression union tting for connection to the household
water line.
Purge the water line prior to nal connection to the unit. This
will remove any debris that may be present in the tubing
from installing the new water line. Connect the plastic tubing
from the unit to the house water supply line with the tting
connection kit provided. Locate the water line in the notch
as shown in the illustration below. Check all water line t-
tings for leaks.
IMPORTANT NOTE: If a reverse osmosis system used, it is
recommended that the water ltration system be bypassed
by removing the lter.
IMPORTANT NOTE: Water lines can not be exposed to
freezing temperatures.
WATER LINE
CONNECTION
NOTCH

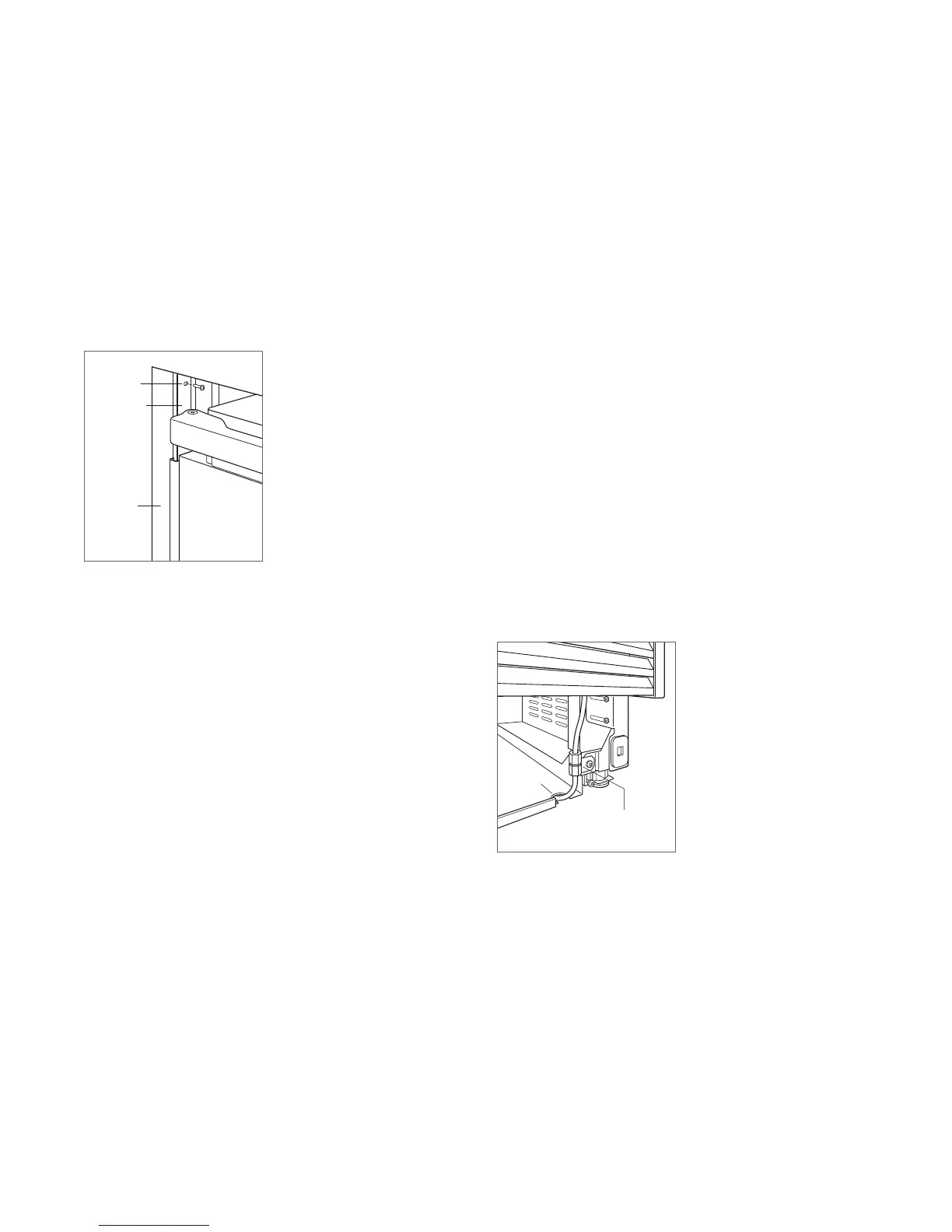

Water line (IW-30CI).
Alignment
ANCHORING
Adjust the depth of the unit to t ush with surrounding
cabinetry. Once aligned, verify doors and drawers open
properly, then install screws in each side trim.
FRONT OF
UNIT
CABINETRY
FACE
FRAME
PANEL
THICKNESS
SCREW
SIDE TRIM
Anchoring.
