400 Series
400 Series
Installation Information
2-5
Door Stop Adjustment (Models 427 & 427R)
The models 427 and 427R have a 90° door stop cam
built into the hinge system. The 90° door stop cam is
located in the center portion of the hinge. To adjust it,
use a standard straight-blade screwdriver to rotate the
cam until you reach the stop point. (See Figure 2-12)
NOTE: You must make this adjustment at both bottom
and top hinge.
Door Stop Installation (Model 430)
For the model 430, optional 90° and 105° door stops
are available, free of charge from Parts Distributors
and/or Product Distributors. The part number for the
90° stop is #DS90, and the part number for the 105°
stop is #DS105.
To install a door stop on a model 430, the door must be
closed. Slide the door stop cam up onto bottom hinge
pin. The stub on the door stop fits into the hole on the
cabinet hinge. Retain door stop by pushing the E-Ring
into the groove at the end of the bottom hinge pin, mak-
ing sure that the E-ring is clipped securely into the
groove. (See Figure 2-13)
NOTE: Complete instructions accompany the part
when ordered.

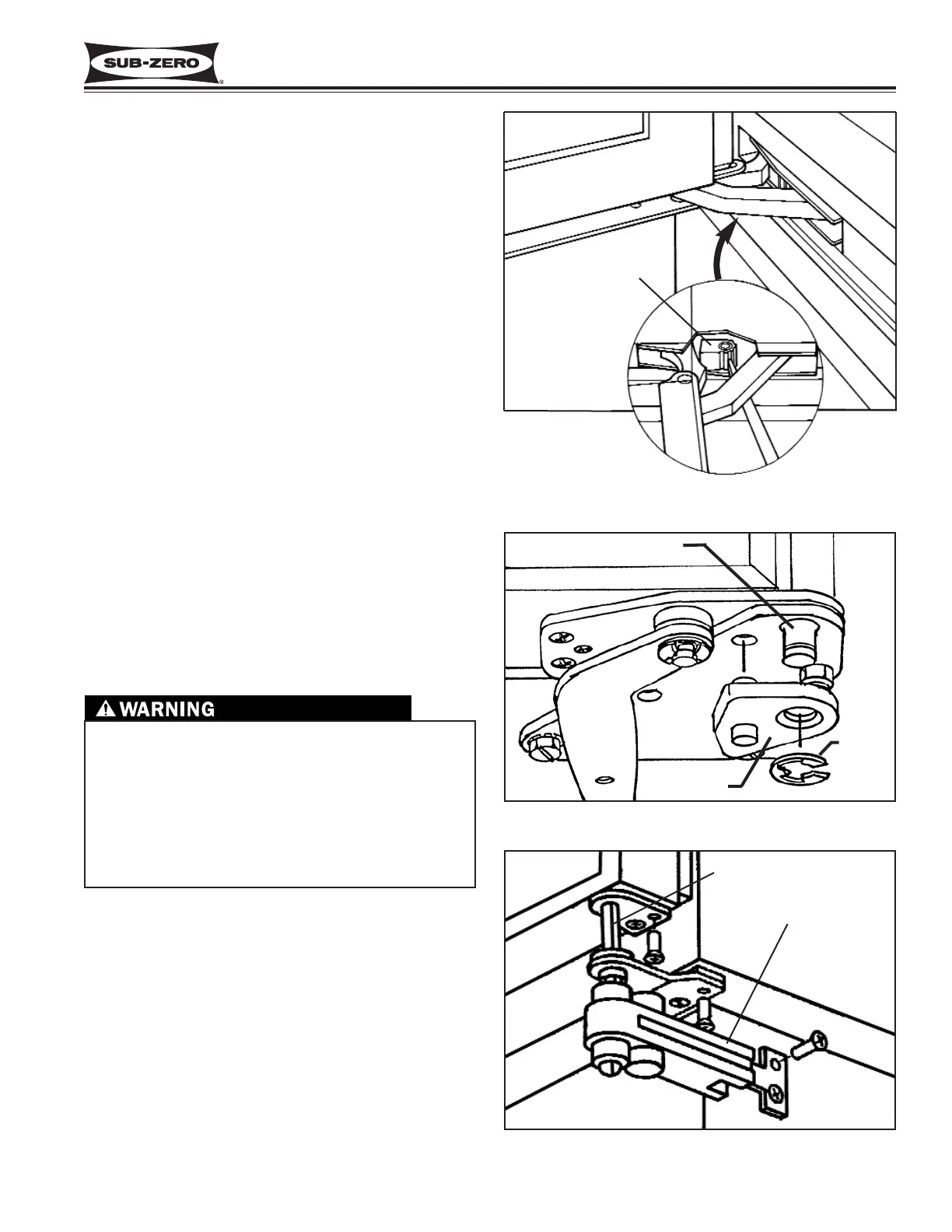

Figure 2-12. Model 427, 427R
Door Stop Adjustment
Figure 2-13. Model 430
Door Stop Installation
E-Ring
Door Stop
Hinge Pin
METAL DOOR PANELS MAY HAVE SHARP EDGES
WHICH COULD INFLICT SERIOUS PERSONAL
INJURY. PROTECTIVE GLOVES SHOULD BE
WORN WHEN HANDLING PANELS.
DOOR PANELS MAY BE HEAVY OR UNSTABLE. IF
THEY WERE TO FALL, THEY COULD CAUSE SERI-
OUS PERSONAL INJURY. CARE SHOULD BE
TAKEN WHEN HANDLING.
Door Panel Removal and Installation (All Models)
Carbon, Platinum and Stainless Steel Door Panel
Removal and Installation (Model 424)
NOTE: Models 424G/B, 424HAG/B, 424S/B, 424G/P,
424HAG/P, 424S/P, 424G/S, 424HAG/S, 424S/S,
424FS/G, 424FS/HAG and 424FS/S are are shipped
from the factory with decorative steel panels and han-
dles in place.
In order to remove the door panel, the door will need to
be removed from the unit. To do this, you will need to
pull the unit out approximately 6” from the rough-in
opening to gain access to the door closer.
Figure 2-14. Model 424 Door Closer
90° Stop Cam
Door Closer
Hinge Pin
To Next Page
