400 Series
400 Series
Installation Information
2-8
NOTE: The screwdriver inserted in the holes of the
door closer arm and the bottom cabinet hinge will be
used to pry the door closer arm back into position when
reattaching the door closer to the bottom door hinge.
Open the door fully and extract the hinge-side trim
mounting screws located just behind the vertical rib of
the hinge-side trim, then remove the hinge-side trim.
(See Figure 2-21) Extract the screws from the top door
hinge. Lean the door away from the unit slightly and lift
the door out of the bottom cabinet hinge. Lay the door
down and remove the bottom door hinge. (If a lock
and/or screws are present on the bottom handle side,
remove them.) Remove the panel mounting screws
from the hinge side of the door. Locate the Poly-tape
under the gasket on the handle side which covers the
handle mounting screw holes. (See figure 2-15)
Remove the tape, then extract the handle mounting
screws and pull the handle from the front of the door.
Now, lift the stainless steel panel from the hinge side
first, pivoting it off of the handle side of the door. (See
Figure 2-22)
To install a stainless steel panel, reverse the steps
above.
Framed & Overlay Door Panel Removal and
Installation (Model 430)
NOTE: Framed and overlay panels are attached to the
door of a 430G/F, 430HAG/F, 430G/O, 430HAG/O,
430S/F and 430S/O by sliding the 1/4” thick edge of the
panel under the door trim. On the handle side of mod-
els 430G/O and 430S/O, additional screws passing
through the door frame from the rear, into the panel
may have been used for increased support. On the
430G/O, 430HAG/O, and 430S/O, the handle may also
be attached through the door frame, or just through the
panel.
To remove a framed or overlay panel, you must first
remove the handle, or trim on handle side if overlay
application. Using a piece of tape stuck to the center of
the magnetic trim molding, pull the trim molding out at
the midpoint to expose the handle mounting screws
(See Figure 2-23). Remove the mounting screws and
pull the handle, or trim on handle side, from the door.
You should be able to slide the panel towards the han-
dle side, and out from under the door trim at this time.
If the panel will not slide from under the door trim, panel
mounting screws and/or handle mounting screws may
have been used. Open the door and locate the Poly-
tape under the gasket. This tape covers the panel

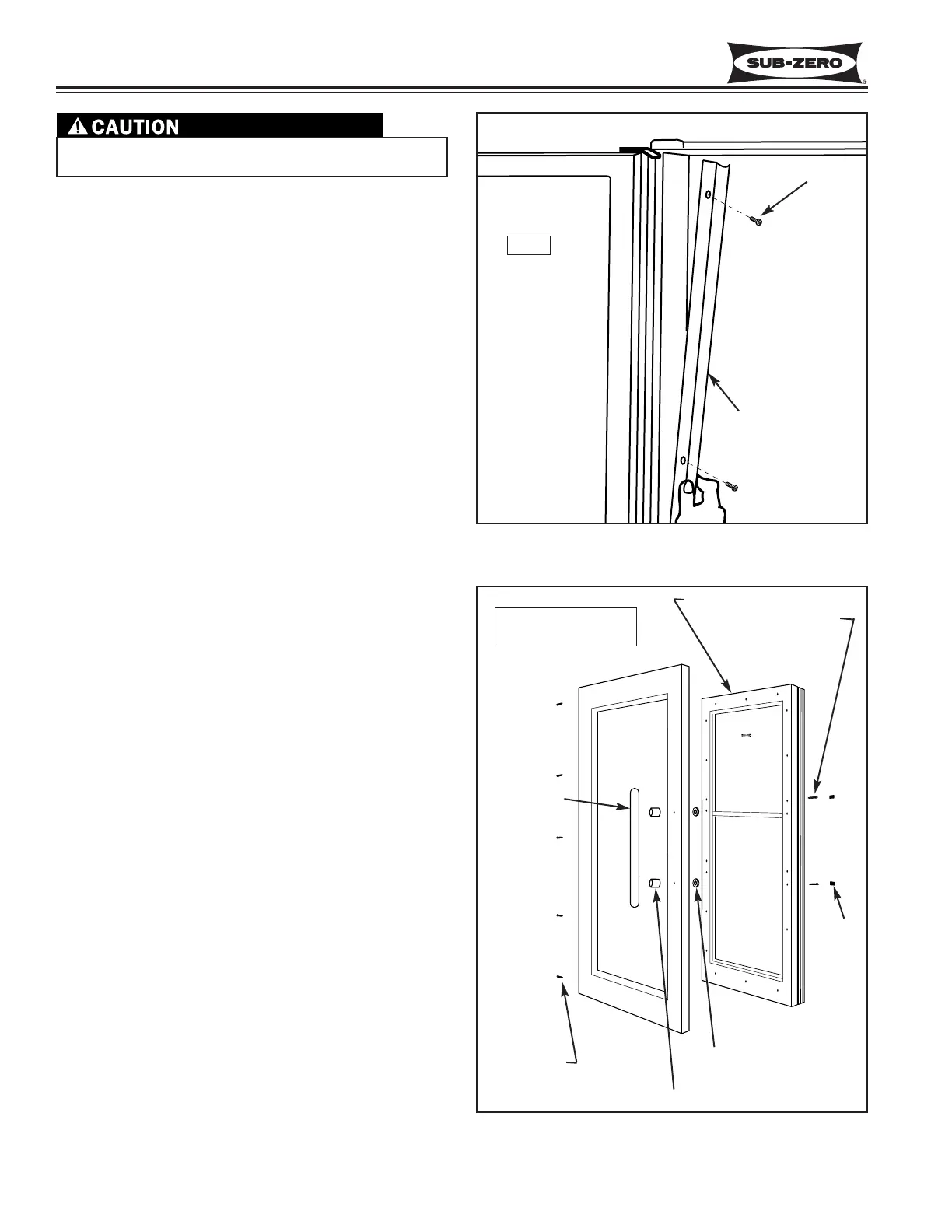

Figure 2-21. Model 430
Hinge-Side Trim Removal
Figure 2-22. Model 430 Stainless Steel
Door Panel Removal
Hinge-Side Trim
Screw
Door
Panel
Poly
Tape
Door Assy
Handle
Screw
(Door Hinges &
Screws - not shown)
Handle
Door closer is spring loaded and may recoil quickly
when detached.
Hinge-Side
Panel Mounting Screw
Handle Stand-off
Panel Spacer/Washer
To Next Page
