Model WS-30 Installation 53
subzero.com
Side Panels
IMPORTANT NOTE: S
ide panels will need to be installed
before the unit is placed in its final position.
When installing a model WS-30 with a custom side panel,
an accessory kit is required. Stainless steel and white
enamel side panels are available through your authorized
Sub-Zero dealer. Refer to instructions included with the
side panel kit when installing these side panels. To obtain
local dealer information, visit the showroom locator
section of our website, subzero.com.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
CUSTOM SIDE PANEL INSTALLATION
The custom side panel will need to be a minimum of 24"
(610) deep and
1
/2" (13) thick. Refer to the custom side
panel dimensions illustration for additional specifications.
Routing will be necessary for the side panel to fit flush
against the side of the unit. Refer also to the routing detail
illustration.
IMPORTANT NOTE: The overall height on the side panel
will vary with the height of the grille being used. Make sure
you know your finished height before cutting any panels.

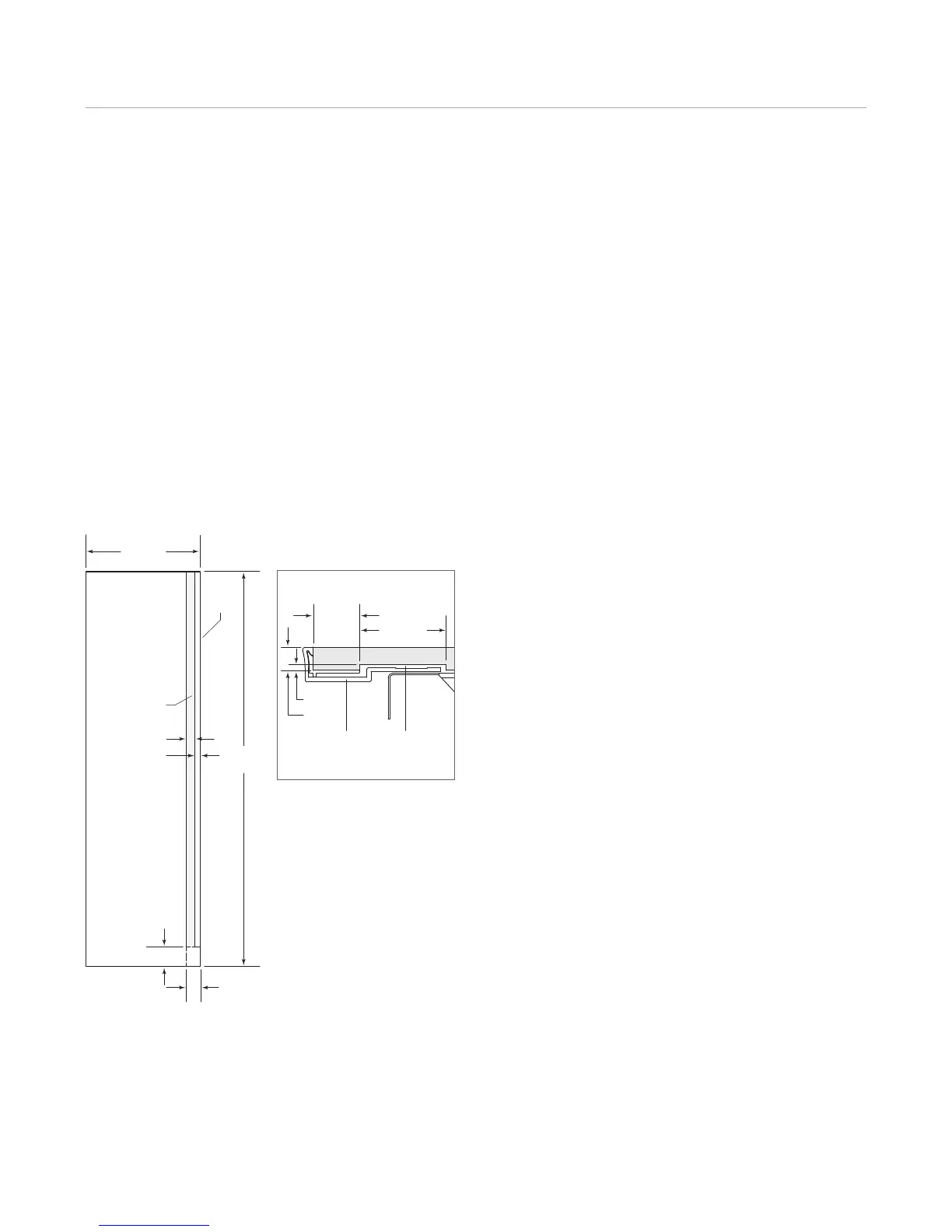

Routing detail.
MAIN
FRAME
SIDE PANEL
ROUTING
1" (25)
1
7
/8" (48)
1
/8" (3)
1
/2" (13)
84"
(2134)
24" (
610)
OPTIONAL
TOE KICK
CUT-OUT
4" (102)
1
7
/8"(48)
1" (25)
ROUT TO
1
/8" (3)
FRONT
O
F SIDE
PANEL
2
5
/8"
(67)
Custom side panel dimensions.
