6
|
Sub-Zero Customer Care 800.222.7820
WINE STORAGE
Electrical

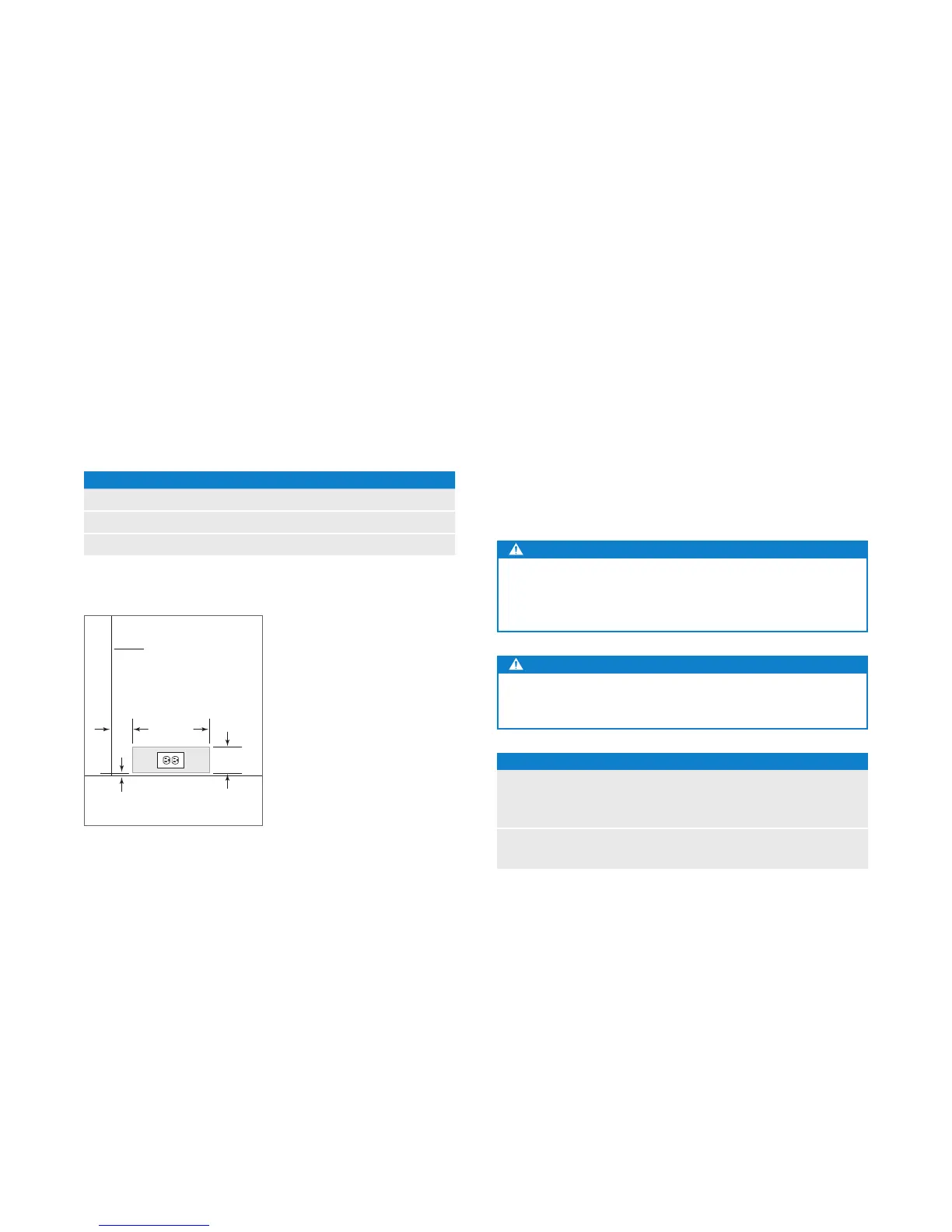

The electrical supply should be located within the shaded
area shown in the illustration below. A separate circuit, ser-
vicing only this appliance is required. A ground fault circuit
interrupter (GFCI) is not recommended and may cause
interruption of operation.
If the unit will be connected to a home security system,
allow 36"
(914) of excess wiring for proper connection.
IMPORTANT NOTE: For models 427G and 427RG, it is
critical the electrical outlet be positioned with the grounding
prong to the right of the thinner blades.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp
Receptacle 3-prong grounding-type
13" (330)
1
/4"
(6)
4
1
/2"
(
114
)
LEFT SIDE
OF OPENING
FLOOR
2
1
/2"
(64)
Models 427G and 427RG.
Custom Panels
For integrated applications, custom door/drawer panels and
handle hardware must be provided. Finish all sides of the
custom panels. They may be visible when the door/drawer
is open or through the window of the glass door.
The custom door panel will attach directly to the door with
screws through a series of pre-drilled holes. For model
427RG, drawer panels will attach using mounting brackets
supplied with the unit. Refer to the panel requirements chart
below and integrated panel dimensions on the following
page.
The thickness of the custom panel can vary. A minimum
5
/8" (16) thick panel is required, but the thickness can be
increased provided it does not exceed the weight limit. The
depth of each model is 24"
(610). Allow for panel thickness
when planning the nished opening depth.
CAUTION
When using a
3
/4" (19) or thicker panel with a reveal less
than
1
/4" (6), panel may cause damage to the unit when
door is opened to 105°. Use the built-in 90° door stop.
CAUTION
As reveals between cabinetry and the unit decrease,
severe nger pinching can occur while door is closing.
PANEL REQUIREMENTS
PANEL WEIGHT MAX
Door 20 lb (9 kg)
Drawer (427RG) 12 lb (5 kg)
PANEL THICKNESS MIN
All Panels
5
/8" (16)
To Next Page
