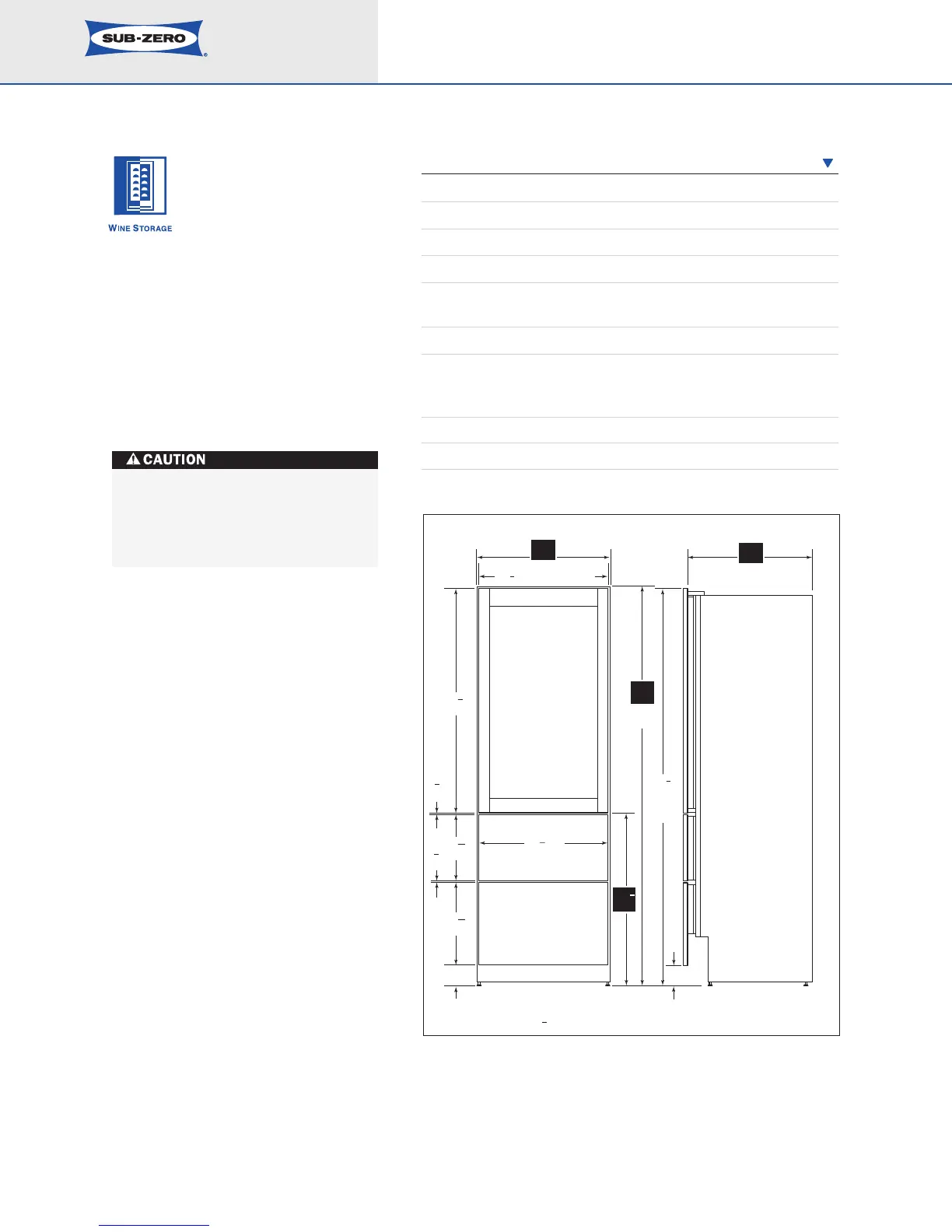

Sub-Zero 427R Planning Information

Planning Information
Wine Storage Model 427R
Cabinetry dimensions shown in the
standard full-view glass door application.
Dimensions in parentheses are in
millimeters unless otherwise specified.
8
IMPORTANT NOTE: Wine Storage
models with a solid door are available
a
s a special order and require 90 days
for delivery. When ordering panels for
a solid door unit, follow the overall
panel dimensions indicated in the
chart, rail and stile dimensions do not
apply.
A solid panel must not be
installed on a glass door unit, as
this may cause moisture to form
behind the panel.
* INCH (13) ADJUSTMENT IN LEVELING LEGS
MODEL 427R CABINETRY DIMENSIONS
1
2
DRAWER PANEL
FRONT VIEW SIDE VIEW
1
8
(3)
16
11
16
(424)
13
9
16
(345)
1
8
(3)
(UNIT DIMENSION)
*34
1
2
(877)
80
(2032)
27
(686)
24
(610)
(679)
3
4
26
DOOR PANEL
(679)
3
4
26
79
7
8
(2029)
FINISHED OPENING
45
3
8
(
1153)
4
(102)
TOE KICK
4
(102)
TOE KICK
FINISHED
OPENING
TRIMMED
DOOR
MODEL 427R PANEL SPECIFICATIONS
Door Panel (W x H) 26
3
/4" (679) x 45
3
/8" (1153)
Width of Top Rail 3
3
/4" (95) min
W
idth of Bottom Rail 3"
(76) m
in
Width of Stiles 2
1
/4" (57) min
Door Panel Weight Limit Glass Door – 20 lbs (9 kg)
Solid Door – 40 lbs (18 kg)
Top Drawer Panel (W x H) 26
3
/4" (679) x 13
9
/16" (345)
Bottom Drawer Panel (W x H)
4"
(102) toe kick – 26
3
/4" (679) x 16
11
/16" (424)
6" (152) toe kick – 26
3
/4" (679) x 14
11
/16" (373)
Drawer Panel Weight Limit 12 lbs (5 kg) each
P
anel Thickness
5
/8" (16) min
