Sub-Zero 427R Planning Information

Planning Information
Wine Storage Model 427R
Dimensions in parentheses are in
millimeters unless otherwise specified.
9
FRAMED CABINETRY APPLICATIONS
F
ramed cabinetry applications present you with different
questions to address. The illustrations on this page show
common applications of framed cabinetry. These are not
meant to be the only alternatives, but are suggestions from
designers around the country. Also refer to the full-scale
illustrations at the end of this section for specifics on door
o
penings.
IMPORTANT NOTE: The depth of the Model 427R is 24"
(610) from the front of the unit to its back. You must allow
for the thickness of the panel you are applying when
planning for the finished rough opening depth if you want
the front panel to be flush with surrounding cabinetry. You
may have to move the unit back into drywall or bring the
cabinets forward to achieve a flush fit. Refer to the illustra-
tions on this page.
The Illustration on the following page gives dimensions for
a Model 427R installed within a framed cabinetry beaded
inset a
pplication. Review the illustration, giving particular
attention to the overall panel specifications. Also refer to
the full-scale illustrations at the end of this section for
specifics on door openings.

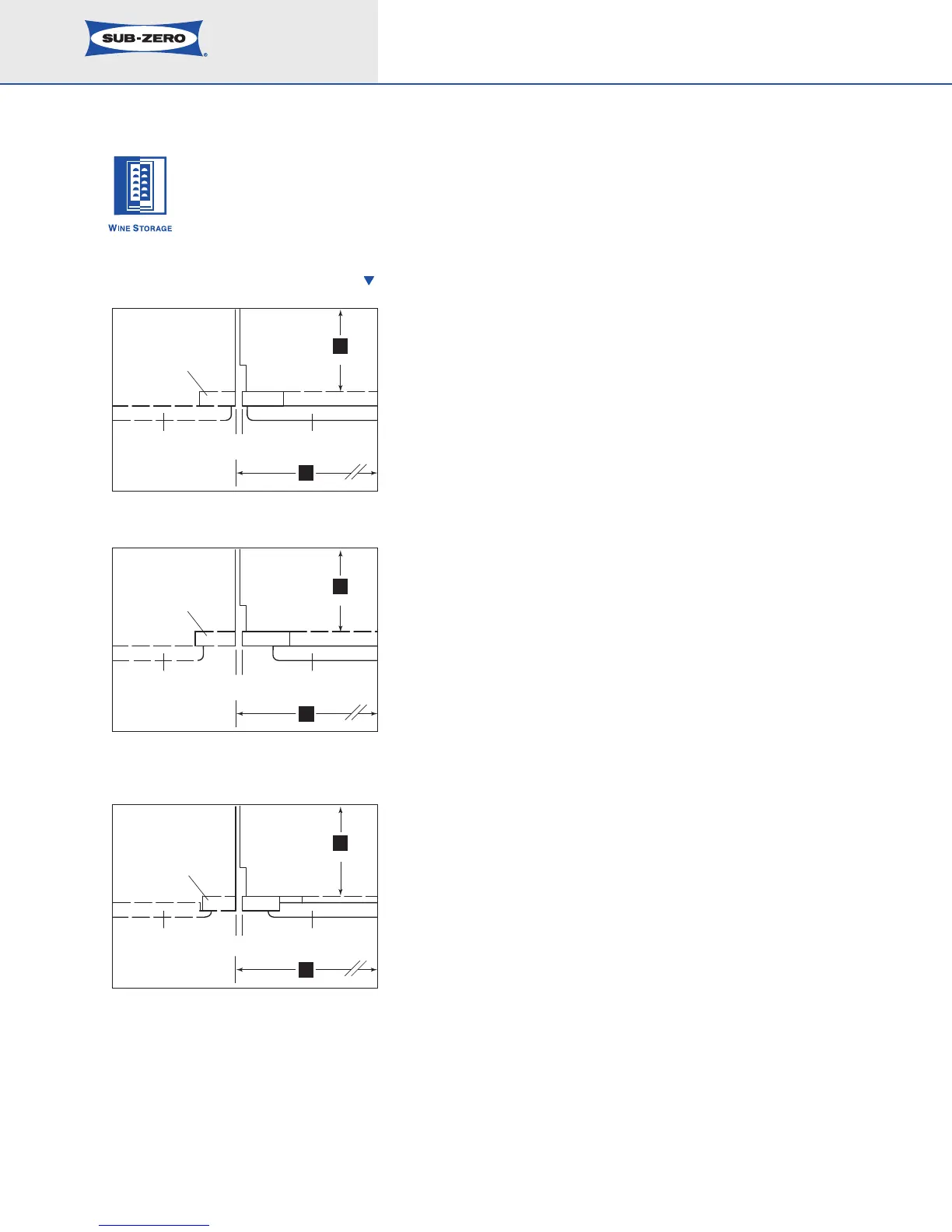

FRAMED CABINETRY
Traditional Frame –
3
/8" (10) offset
(top view).
Traditional Frame – standard overlay
(top view).
Traditional Frame – full overlay (top view).
SUB-ZERO
UNIT
P
ANEL
C
ABINET
D
OOR
CABINET
FRAME
TO WALL
24
(
610)
T
1
/8" (3)
REVEAL
1
2
7
(
686)
PANEL
C
ABINET
DOOR
CABINET
FRAME
SUB-ZERO
UNIT
S
TO WALL
24
(
610)
T
1
/8" (3)
REVEAL
1
27
(
686)
2
PANEL
CABINET
DOOR
CABINET
FRAME
SUB-ZERO
UNIT
TO WALL
24
(610)
1
1
/8" (3)
REVEAL
2
27
(686)
2
