Dimensions in
parentheses are in
millimeters unless
otherwise specified.
WINE STORAGE
60
IMPORTANT NOTE: The glass door opening of
the standard Models 427 and 427R is designed
to be exposed to room air circulation. Decorative
overlays on the glass should be kept to a
minimum. While the cabinet front stiles are a
minimum of 2
1
/4" (57) for both Models 427 and
427R, the top and bottom rails are different.
Rails and stiles can be increased in size but
should not exceed cabinet manufacturers‘
standard width. They cannot exceed overall door
panel dimensions specified, as they would inter-
fere with the operation of the door. The back
sides of rails and stiles that will be visible
through the glass door will need to be finished.
Also, the inside edges of the frames must be
finished to match the front surface.
IMPORTANT NOTE: The inside edges of the
rough opening will need to be finished as they
will be exposed when the doors are open.
INTEGRATED PANEL SPECIFICATIONS
Model 427
Door Panel Width 26
3
/4" (679)
Door Panel Height 75
7
/8" (1927)
Min Width of Top Rail 3
3
/4" (95)
Min Width of Bottom Rail 8" (203)
Min Width of Stiles 2
1
/4" (57)
Door Frame Panel Weight Limit 20 lbs (9 kg)
Solid Door Panel Weight Limit 40 lbs (18 kg)
Min Panel Thickness
5
/8" (16)

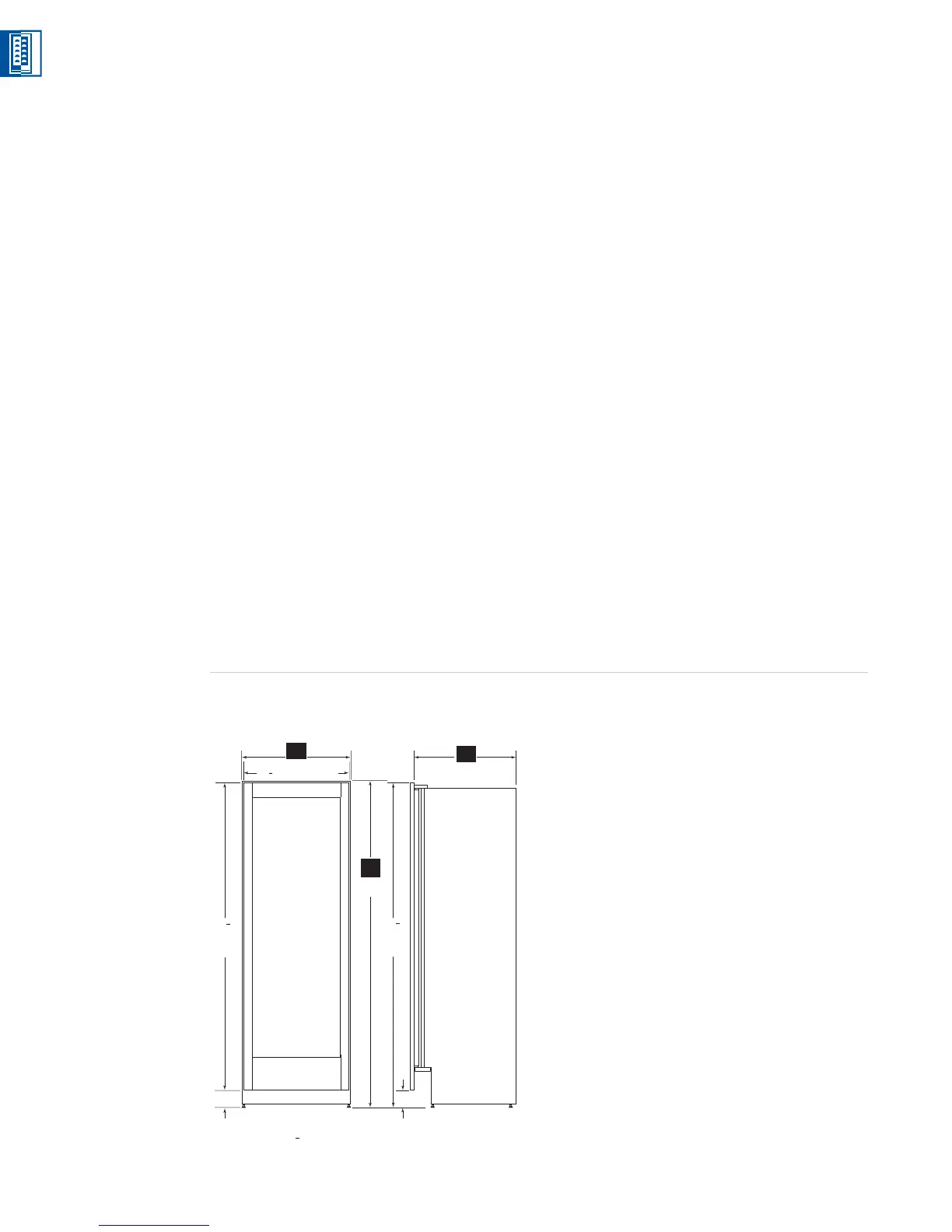

CABINETRY DIMENSIONS
Model 427
INTEGRATED PANELS –
MODELS 427 | 427R
The integrated full panels or frame panels for
glass doors for these models will follow some of
the identical planning processes used with the
Integrated line. The installation of the door
panels is completely different, however. Rather
than using the mounting hardware we used with
the Integrated line, door panels for both Models
427 and 427R will be applied with screws
applied through our door.
The drawer panels for the Model 427R will be
applied using the Integrated technique of
mounting brackets.
Refer to the Overall Dimensions and Cabinetry
Dimensions illustrations for Models 427 and
427R to give you a better idea of the exact space
our unit needs and how the panel fits in relation-
ship with the unit.
IMPORTANT NOTE: The depth of Models 427
and 427R is 24" (610) from the front of the unit
to its back. You must allow for the thickness of
the panel you are applying when planning for the
finished rough opening depth if you want the
front panel to be flush with surrounding cabi-
netry. You may have to move the unit back into
the drywall or bring the cabinets forward. Refer
to the Integrated Refrigeration section.
ACCESSORIES
Optional accessories
are available
through your
Sub-Zero dealer. To
obtain local dealer
information, visit the
Showroom Locator
section of our
website,
subzero.com.
