Sub-Zero 427R Design Guide

WINE STORAGE
61
INTEGRATED PANELS –
MODELS 427 | 427R
IMPORTANT NOTE: The dimensions of these
panels and stiles are assuming the models finish
off at 80" (2032) in height overall and have a 4"
(102) toe kick for the Model 427. If you finish off
at 84" (2134), for instance, you must add 4"
(102) additional to the overall height of the panel
and remember to add 4" (102) to the top rail.
Likewise, if you allow for a 6" (152) toe kick for
the Model 427, you must subtract 2" (51) from
the bottom rail.
Door panels for Models 427 and 427R can grow
beyond the 80" (2032) height to accommodate
any size door as long as you stay below door
panel weight limit of 20 lbs (9 kg) for glass door
units and 40 lbs (18 kg) for solid door units.
Refer to the specifications under Door Panel
Height on page 47 of the Integrated section.
IMPORTANT NOTE: The toe kick area on the
Model 427 cannot be larger than 6" (152), and
no larger than 9" (229) for the 427R. The toe
kick area for either model cannot be less than
4" (102).

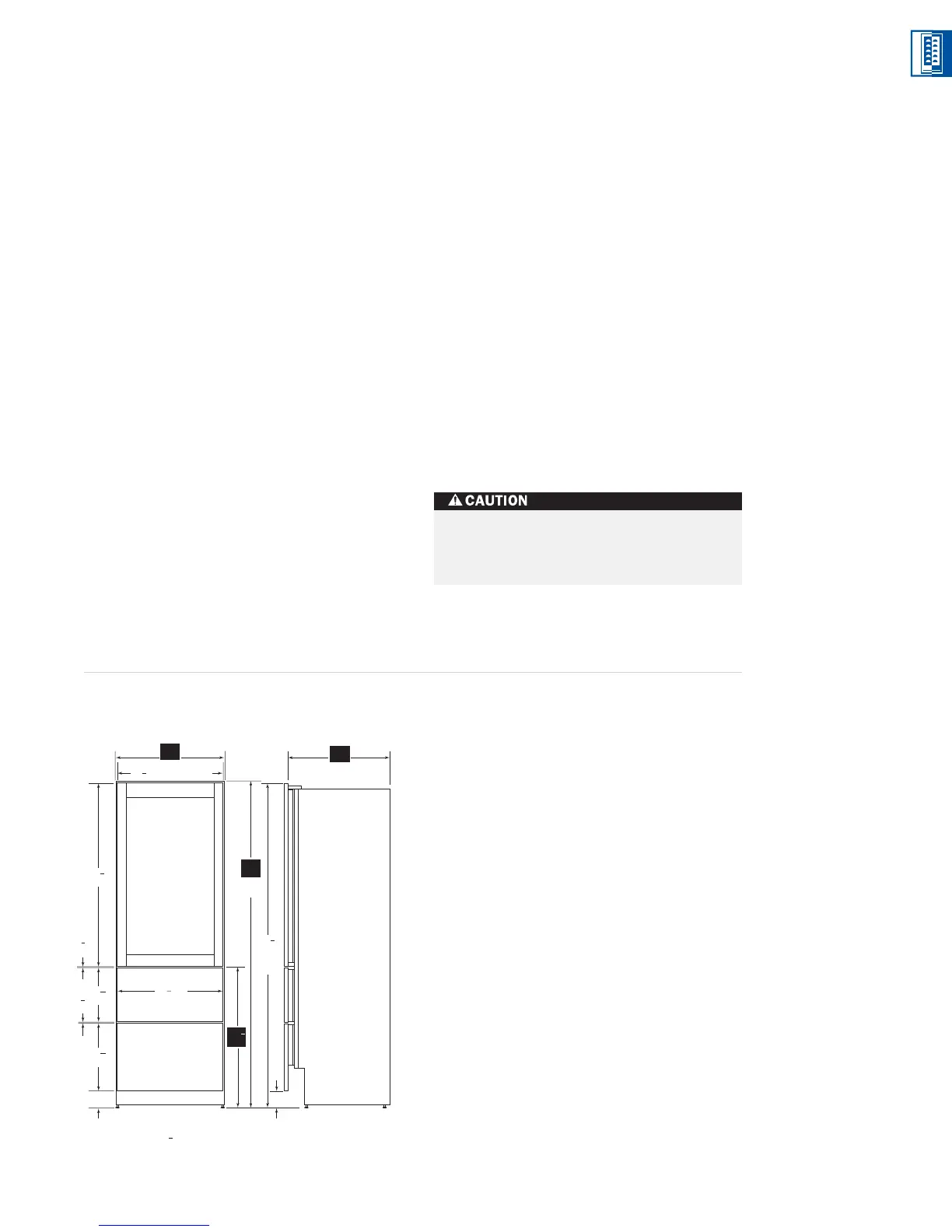

In the Overall Dimensions illustrations, note the
location of pre-drilled holes for optional handle
hardware. Refer to page 64 for specifics about
installing handle hardware on this overlay
application.
IMPORTANT NOTE: If you are installing
Sub-Zero‘s optional lock kit on a Model 427 or
427R, you may have to order door panels that
exceed the 80" (2032) finished height. Consult
the lock kit installation instructions and see if
your panels will allow for an adequate installa-
tion. To obtain these instructions, check our
website, subzero.com.
IMPORTANT NOTE: In the panel specifications
for Model 427R, the bottom drawer panel height
is based on a 4" (102) toe kick. If you want to
show a 6" (152) toe kick, you must subtract 2"
(51) from the bottom drawer panel height.
IMPORTANT NOTE: Wine Storage models with a
solid door are available as a special order and
require 90 days for delivery. When ordering
panels for a solid door unit, follow the overall
panel dimensions indicated in the chart; rail and
stile dimensions do not apply.
A solid panel must not be installed on a
glass door unit, as this may cause moisture
to form behind the panel.
*
INCH (13) ADJUSTMENT IN LEVELING LEGS
1
2
DRAWER PANEL
FRONT VIEW SIDE VIEW
1
8
(3)
16
11
16
(424)
13
9
16
(345)
1
8
(3)
(UNIT DIMENSION)
*34
1
2
(877)
80
(2032)
27
(686)
24
(610)
(679)
3
4
26
DOOR PANEL
(679)
3
4
26
79
7
8
(2029)
FINISHED OPENING
45
3
8
(1153)
4
(102)
TOE KICK
4
(102)
TOE KICK
FINISHED
OPENING
TRIMMED
DOOR
CABINETRY DIMENSIONS
Model 427R
INTEGRATED PANEL SPECIFICATIONS
Model 427R
Door Panel Width 26
3
/4" (679)
Door Panel Height 45
3
/8" (1153)
Min Width of Top Rail 3
3
/4" (95)
Min Width of Bottom Rail 3" (76)
Min Width of Stiles 2
1
/4" (57)
Door Frame Panel Weight Limit 20 lbs (9 kg)
Solid Door Panel Weight Limit 40 lbs (18 kg)
Top Drawer Panel Width 26
3
/4" (679)
Top Drawer Panel Height 13
9
/16" (345)
Bottom Drawer Panel Width 26
3
/4" (679)
Bottom Drawer Panel Height 16
11
/16" (424)
Drawer Panel Weight Limit 12 lbs (5 kg) each
Min Panel Thickness
5
/8" (16)
INSTALLATION
To install integrated
panels, see the
detailed procedures
outlined in the
Sub-Zero Wine
Storage Installation
Instructions.
