DOORS AND DRAWERS
Refrigerator/Freezer Door Assembly
See Figures 2-1 thru 2-7. Door assemblies consist of the fol-
lowing parts:
• Door shell and liner with solid foam core
• Door gasket
• Door trim
• Door handle assy.
NOTE: Service replacement doors do not include handle
assemblies.
NOTE: The dairy assy. and door shelf assy. are independent
from the door assy.
NOTE: Models 501R, 501F, 511, 532, 542 & 561: Extended
Door Handle Packages are available for raised panel appli-
cations. Contact your parts or product distributor.
If either the door handle end caps should happen to crack or
break, order standard Handle End Cap Package, part no. 4-
20-049-0 or Extended Handle End Cap Package, part no. 4-
20-070-0.
NOTE: Model 590: If either the door handle end caps
should happen to crack or break, order 590 Handle End Cap
Package, part no. 4-20-092-0.

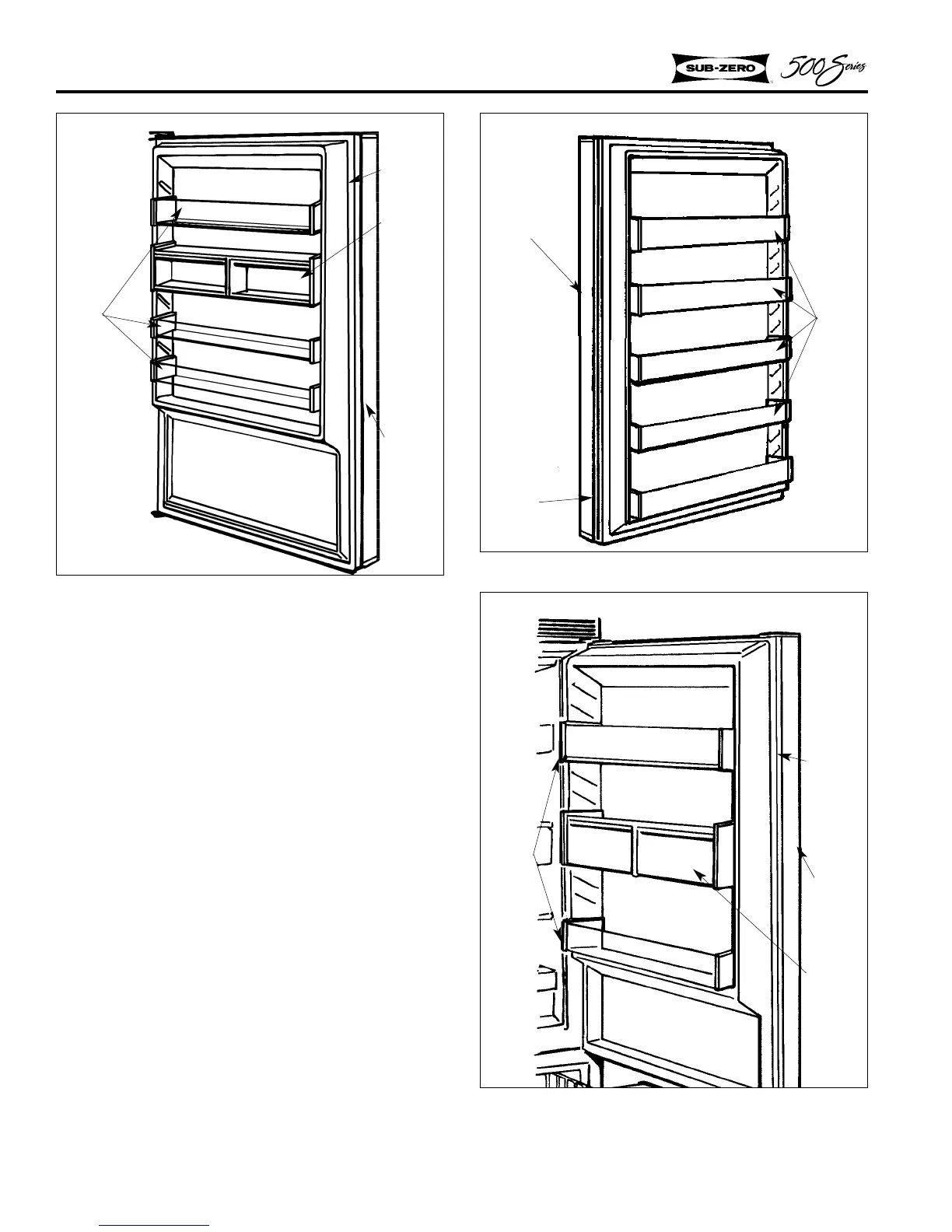

Figure 2-1. Refrigerator Door
Figure 2-2. Freezer Door
Figure 2-3. Refrigerator Door
Model 501R
Model 501F
Models 511, 550
Gasket
Handle
Assy.
Dairy
Assy.
Door
Shelf
Assy.
Gasket
Handle Assy.
Door
Shelf
Assy.
Gasket
Handle
Assy.
Dairy
Assy
.
Door
Shelf
Assy.
