BUILT-IN REFRIGERATION
28

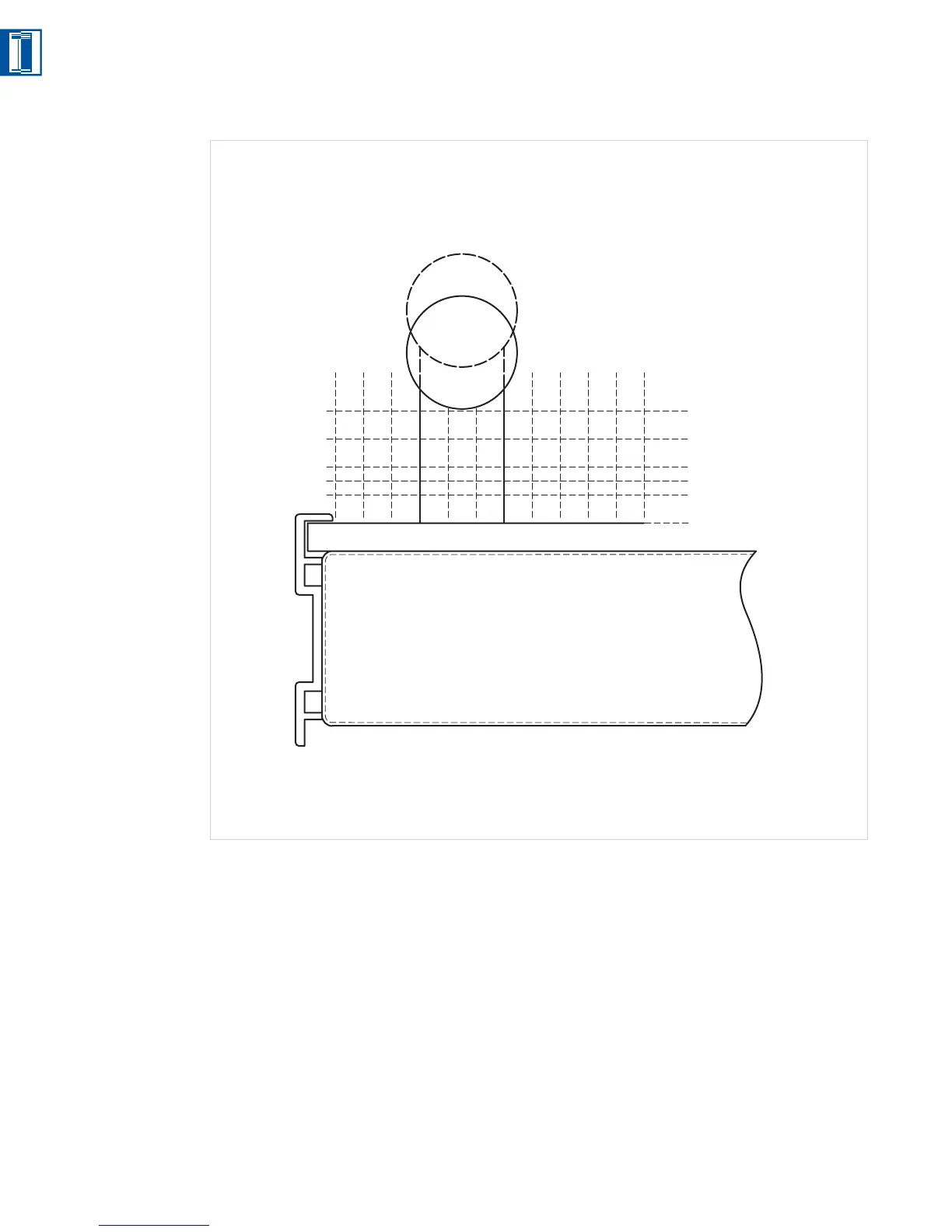

PANEL AND HANDLE PROFILE – OVERLAY AND STAINLESS STEEL APPLICATION
1
1
/4" (32) PANEL
1" (25) PANEL
1
/4" (6) PANEL
1
/2" (13) PANEL
3
/4" (19) PANEL
5
/8" (16) PANEL
DOOR
1
/4" (6) APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR
NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE
MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.
1"
2"
(51)
3"
(76)
STANDARD STAINLESS STEEL HANDLE
The full-scale illustration above shows
handle placement for the standard
stainless steel handle on the wrapped
stainless steel door and on overlay
panel applications shown in the dashed
line.
IMPORTANT NOTE: For overlay applica-
tions, the panel must be a minimum of
5
/8" (16) thick to support mounting the
handle hardware.
For overlay applications, mount door
handles close to the opening edge of
the door for ease of opening.
