Sub-Zero 601F Brochure & Specs

BUILT-IN REFRIGERATION
29
1
1
/
4
"
(32)
PA NE L
1"
(25)
PA NE L
*
1
/
4
"
(6)
PA NE L
1
/
2
"
(13)
PA NE L
3
/
4
"
(19)
PA NE L
130˚ DOOR OPENING
WITH 2" (51) FILLER STRIP
(TOP VIEW)
OPTIONAL
FRAMED EXTENDED
FULL-LENGTH HANDLE
STANDARD
FRAMED
FULL-LENGTH
HANDLE
DOOR CLOSED
DOOR OPEN @ 130˚
HINGE
2" (51)
FILLER STRIP
MAIN FRAME
ALLOW FOR FILLER LAP
BEHIND FLANGE
APPROX
PROFILE OF
STAINLESS
STEEL DOOR
AND HANDLE
OVERLAY PANEL
3/4" (19) THICK
(NOMINAL)
SUB-ZERO UNITSUB-ZERO UNIT
The full-scale illustration shows the
panel and handle profile for 130˚ door
opening with a 2" (51) filler strip.
Interference of door panels with
handles at maximum door swing may
require the use of an optional 90˚ door
stop available through your Sub-Zero
dealer.

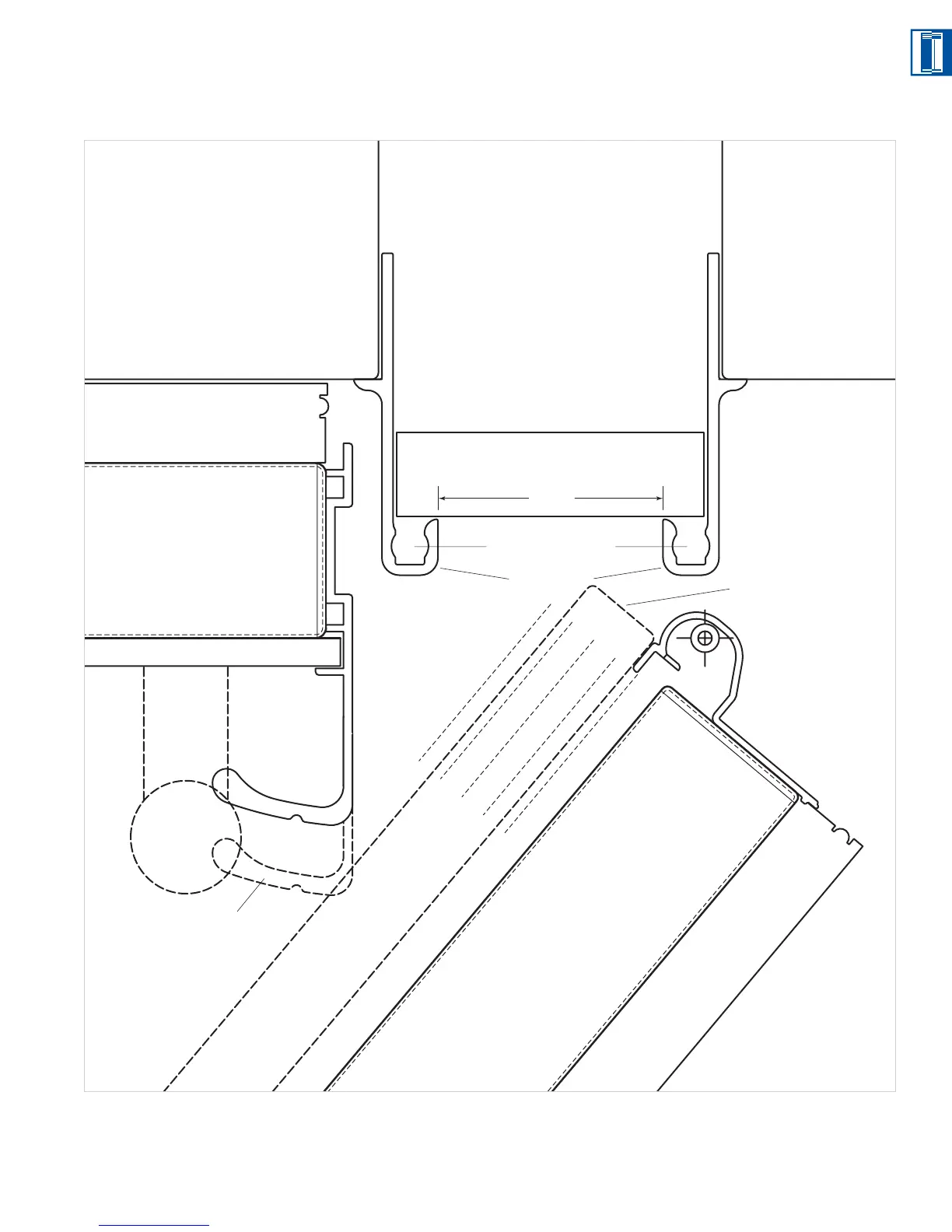

PANEL AND HANDLE PROFILE – 130˚ DOOR OPENING (TOP VIEW)
*Approximate thickness of wrapped
stainless steel door.

Sub-Zero 601F Specifications

General

Type	Freezer
Energy Star	Yes
Defrost Type	Automatic
Installation Type	Built-In
Ice Maker	Yes
Water Dispenser	No
Width	30 inches
Height	84 inches
Depth	24 inches
Finish	Panel Ready
