Sub-Zero 601F

73
Dimensions in parentheses are in
millimeters unless otherwise specified.
23
3
/4" (603)
TO BACK OF UNIT
23
7
/8" (606)
WIDTH OF UNIT
DOOR
TOP VIEW
BOTTOM HINGE EXTENDS
1
/4" (6)
FROM SIDE OF UNIT
UP TO
3
1
/2" (89) FROM FLOOR
MODEL 245 – LOWER HINGE

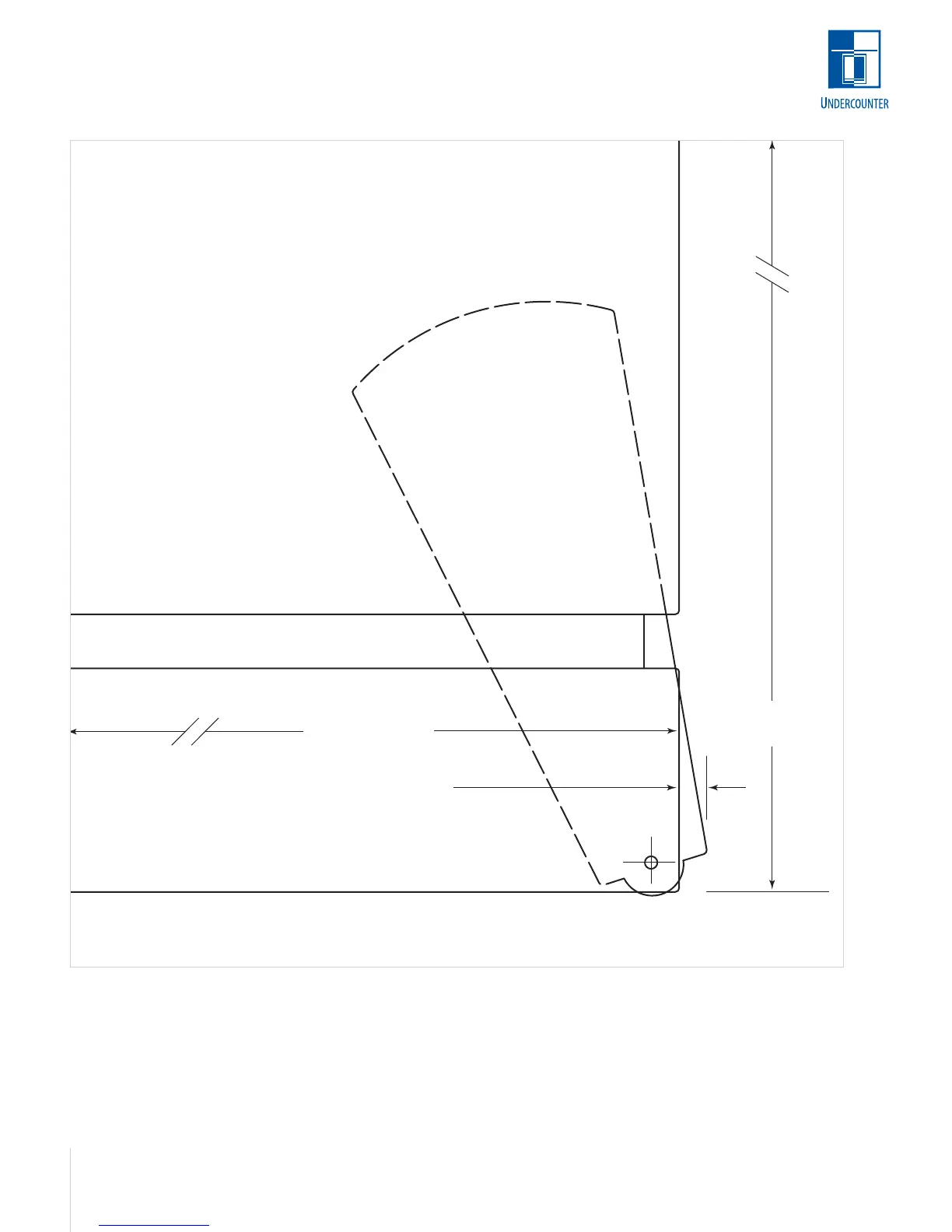

The full-scale illustration above shows
how the Model 245 lower hinge extends
out from the side of the unit in the area
of the kickplate.
