Dimensions in parentheses are in
millimeters unless otherwise specified.
74
*MODEL 249 OVERLAY
MUST EXTEND A MINIMUM
OF 1-13/16" (46) BEYOND
SURFACE OF ADJOINING
CABINETRY AND MUST BE
1" (25) FROM ADJACENT
CABINETRY TO ALLOW THE
MAXIMUM DOOR SWING
1
13
/16" (46)
3
/4" (19)
1"* (25)
DOOR CLOSED
DOOR PANEL
145˚*
DOOR PANEL
DOOR OPEN @ 145˚
145˚ DOOR OPENING
(TOP VIEW)
24" (610)
CABINETRY OPENING
OVERLAY PANELS – MODELS 249RP, 249FF(I) AND 249R

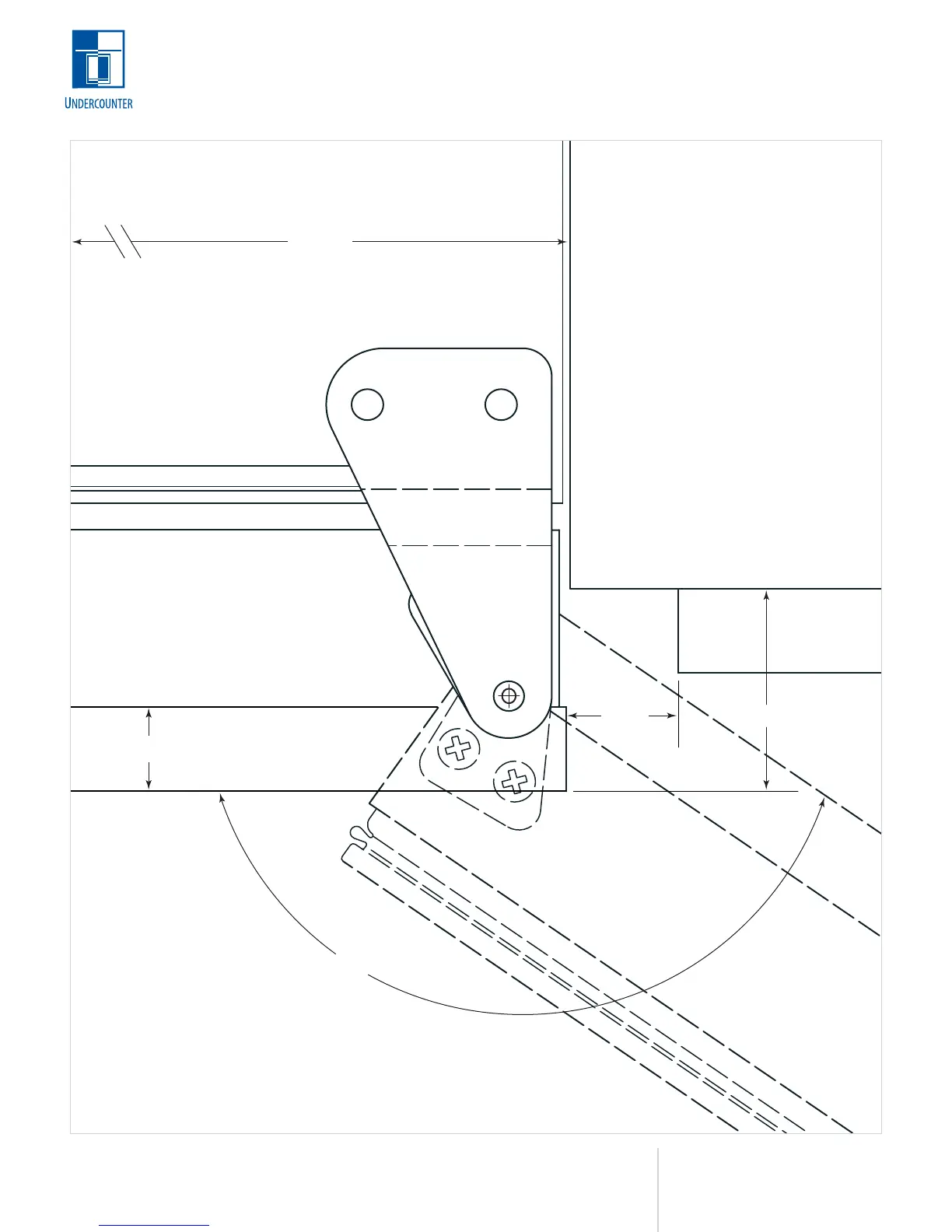

The full-scale illustration shows some
installation considerations you need to
make, and how the maximum door
opening may interact with adjacent
cabinets and countertops.
145˚ MAXIMUM DOOR OPENING
Full-scale (top view)
