18
90 DEGREE DOOR STOP
All 600 Series doors open to 130 degrees. For Model 611
and 650, if you would like to stop the door swing at 90
degrees, remove the door stop pin from the plastic package
located behind the grille and insert it into the space provid-
ed on the top hinge plate. See illustration 27. For Model
611G and 650G, remove the door stop pin from the plastic
package located behind the grille and insert it into the
space provided on the hinge plate. See illustration 28.
Tighten firmly with a screwdriver. Optional 90˚ or 105˚ door
stop kits for Models 601R, 601RG, 601F, 561, 661, 642, 680,
685, 632, 690 and 695 are available through your Sub-Zero
dealer.

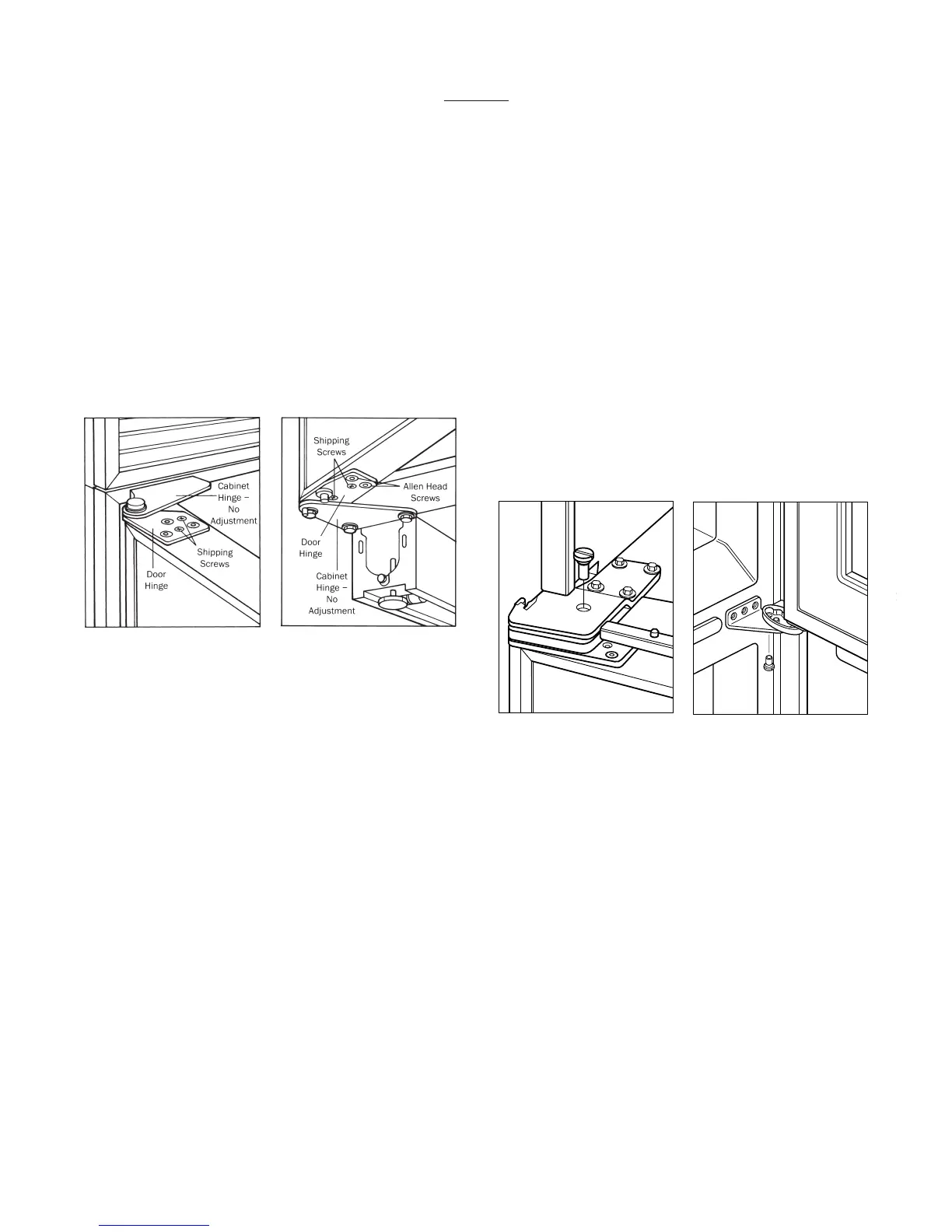

ADJUSTING THE HINGES
Now check to make sure doors are properly adjusted. If not,
adjust the top or bottom hinge by first removing and dis-
carding the two small shipping screws. See illustration 25.
Adjust the top door hinges left to right and in or out by
loosening the three allen head screws. Adjust the bottom
door hinge with a 1/8" allen wrench. Refer to illustration
26. The door will now be able to move left to right or in and
out.
600
SERIES
Illus. 25 Illus. 26
Illus. 27 Illus. 28
Dimensions in parentheses are in millimeters unless otherwise specified.
