Sub-Zero 632-2 Service Manual

Page 13
7-13
Built-In
Built-In
(600-
(600-
2
2
)
)
Series
Series
Component Access / Removal
#3758407 - Revision B - August, 2006
Freezer Drawer Assembly
(611-2/611G-2,650-2/650G-2 Prior to Serial #2354455)
To remove freezer drawer assembly (See Figure 7-29):
1. Open drawer fully.
2. Pull upper basket to front of drawer.
3. While holding upper basket in place, lift front of
drawer up while pulling forward.
Freezer Drawer Front Assembly
(611-2/611G-2,650-2/650G-2 Start w/Serial #2354455)
To remove a freezer drawer front assembly (See Figure
7-29A):
1. Open freezer drawer fully.
2. Extract the Allen-head screws that pass through the
drawer slide rail assemblies into the rear of the
drawer front assembly.
3. Pull drawer front assembly from drawer slide rails.
Freezer Drawer Side Trim
(611-2, 611G-2, 650-2, 650G-2)
The freezer drawer side trim slides down over trim clips
that are riveted to the sides of the drawer.
To remove freezer drawer side trim (See Figure 7-30):
1. Remove Freezer drawer handle.
2. Slide side trim up off of trim clips

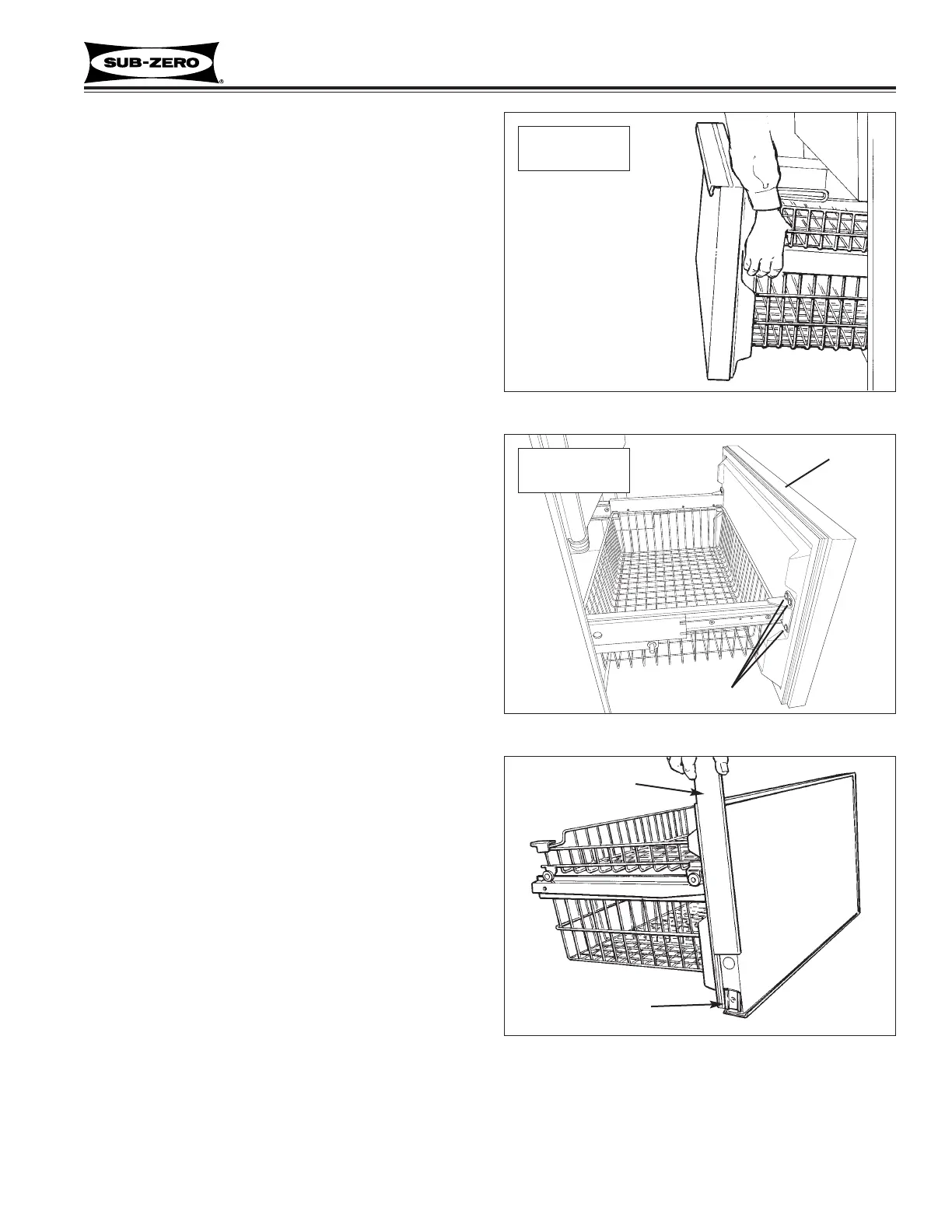

Figure 7-29. Drawer Assembly
Hold upper basket
in place, lift up and
pull forward.
Extract Screws
Drawer Front Assy
Figure 7-30. Drawer Trim
Side Trim
Trim Clip
Figure 7-29A. Drawer Front Assembly
Prior to Serial
#2354455
Starting w/Serial
#2354455
