Sub-Zero 632

70
PLANNING INFORMATION
Refer to the Installation Specifications for infor-
mation regarding area requirements, minimum
door clearance, electrical and plumbing place-
ment for all Sub-Zero Undercounter models.
The Model 315I can be ordered with or without
a pump. If you order the unit without a pump,
you must install a drain. Refer to the Installation
Specifications illustrations on the following
page. The drain must be located in a 2" (51) area
centered in the opening for the unit, 23" (651)
back from the front door.
PLUMBING REQUIREMENTS
For Models 245, 249FFI and 315I(P), rough in
the water supply line. Connect a
1
/4" OD copper
line to the house supply, being sure to use an
easily accessible shut-off valve between the
supply and the refrigerator.
Do not use self-piercing valves. A saddle valve
kit (4200880) is available from your Sub-Zero
dealer. An in-line filter is required when water
conditions have a high sediment content.
The ice maker operates on constant water
pressure between 20 psi (1.4 bar) and 100 psi
(6.9 bar).
IMPORTANT NOTE: In some cases, a reverse
osmosis water filter system may not be able to
maintain the minimum pressure consistently.
ELECTRICAL REQUIREMENTS
A 115 V AC, 60 Hz, 15 amp circuit breaker and
electrical supply are required. A separate circuit,
servicing only this appliance is required.
All Undercounter models are equipped with a
power supply cord with a 3-prong grounding
plug, which must be plugged into a mating
3-prong grounding-type wall receptacle. Follow
the National Electrical Code and local codes and
ordinances when installing the receptacle. Refer
to the Installation Specifications illustrations.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.

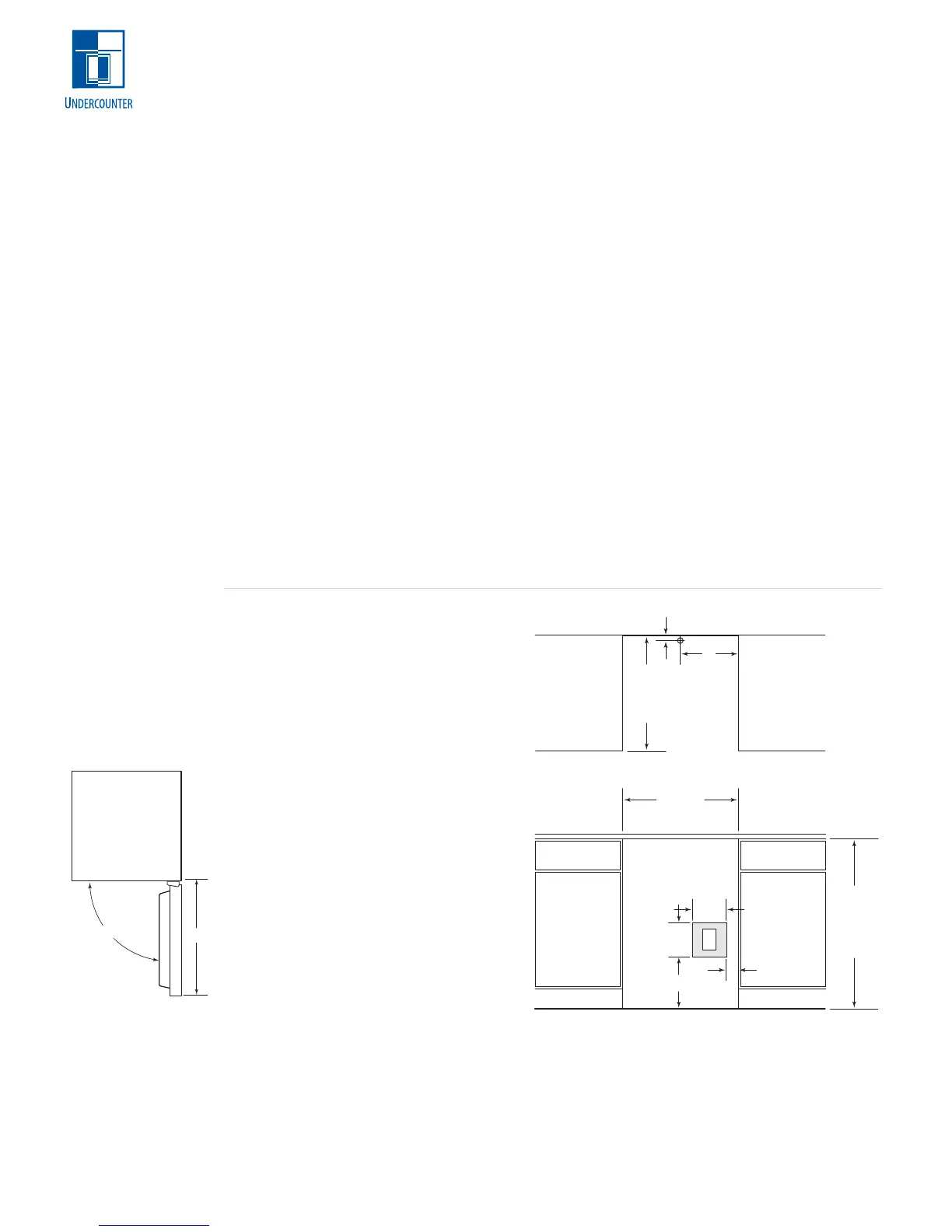

34
1
/2" (876)
ROUGH
OPENING
HEIGHT TO
FINISHED
FLOORING
24"(610)
ROUGH OPENING
WIDTH
7"
(178)
7"
(178)
E
B
24"
(610)
ROUGH
OPENING
DEPTH
TOP VIEW
FRONT VIEW
D
WATER
SUPPLY
LOCATION
LOCATE ELECTRICAL
WITHIN SHADED AREA
1
/2" (13)
C
INSTALLATION SPECIFICATIONS
Undercounter Models
Models 249RP and 249R
A) Min Door Clearance 25
3
/8" (644)
B) Location of Electrical 8
1
/2" (216)
C) Location of Electrical 10
1
/2" (267)
Models 249FF and 249FFI
A) Min Door Clearance 25
3
/8" (644)
B) Location of Electrical 2
1
/2" (63)
C) Location of Electrical 10
1
/2" (267)
D) Water Supply 18" (457)
Model 245
A) Min Door Clearance 25
13
/16" (656)
B) Location of Electrical 2" (51)
C) Location of Electrical 1" (25)
D) Water Supply 12" (305)
Model 315I and 315IP
A) Min Door Clearance 15
1
/4" (387)
D) Water Supply 8" (203)
Models without an ice maker will not require
the water line connection.
For Model 315I(P), electrical supply can be
located anywhere on the back wall.
Dimensions are for finished rough openings.
90˚
A
INSTALLATION
Refer to the
installation instruc-
tions shipped with
each Sub-Zero
product for detailed
specifications.
MODEL OPTIONS
Model 249RP
All Refrigerator
Model 249FF
All Freezer
Model 249FFI
All Freezer
with Ice Maker
Model 245
Refrigerator | Freezer
Model 249R
Refrigerator | Freezer
Model 315I
Ice Maker
Model 315IP
Ice Maker with
Drain Pump
