FRAMED PANEL ACCESSORY KITS
For framed models, the refrigerator door panel must
include a cut-out to accommodate the glasswell and bezel.
The thickness of the panel in this area can range from
1
/4"
(6) to a maximum of 1
1
/8" (29). If the panel is thicker,
p
rovisions must be made to rout out a space to accommo-
date the decorative bezel surrounding the glasswell.
If you choose not to use custom wood panels above or
below the glasswell for the framed application, a stainless
steel insert panel will be provided with the partial framed
accessory kit. This accessory kit includes partial framed
molding and classic stainless steel inset handle panel to
provide a spill-resistant finish above and below the glass-
well on the refrigerator door only. Refer to the specifica-
tions for this option in the chart below. Grille panel dimen-
sions will be the same as shown for framed panels.
With the fr
amed retr
ofit accessory kit, existing Model 690
door panels can be used on a new Model 695 framed unit.
This accessory kit includes framed retrofit moldings and
classic stainless steel inset handle panels to accommodate
existing Model 690 framed refrigerator and freezer door
panels.
IMPORTANT NOTE: When using a partial framed or framed
retrofit kit, a
1
/2" (13) reveal must be maintained on the
bezel side of the panel.
Both accessory kits are available through your Sub-Zero
dealer. To obtain local dealer information, visit the Locator
section of our website, subzero.com.
PARTIAL FRAMED PANEL DIMENSIONS
WIDTH
HEIGHT
Refriger
ator Door P
anel 17
15
/16" (456) 67
11
/16" (1719)
Freezer Door Panel 17
15
/16" (456) 67
1
1
/16" (1719)
WW
H

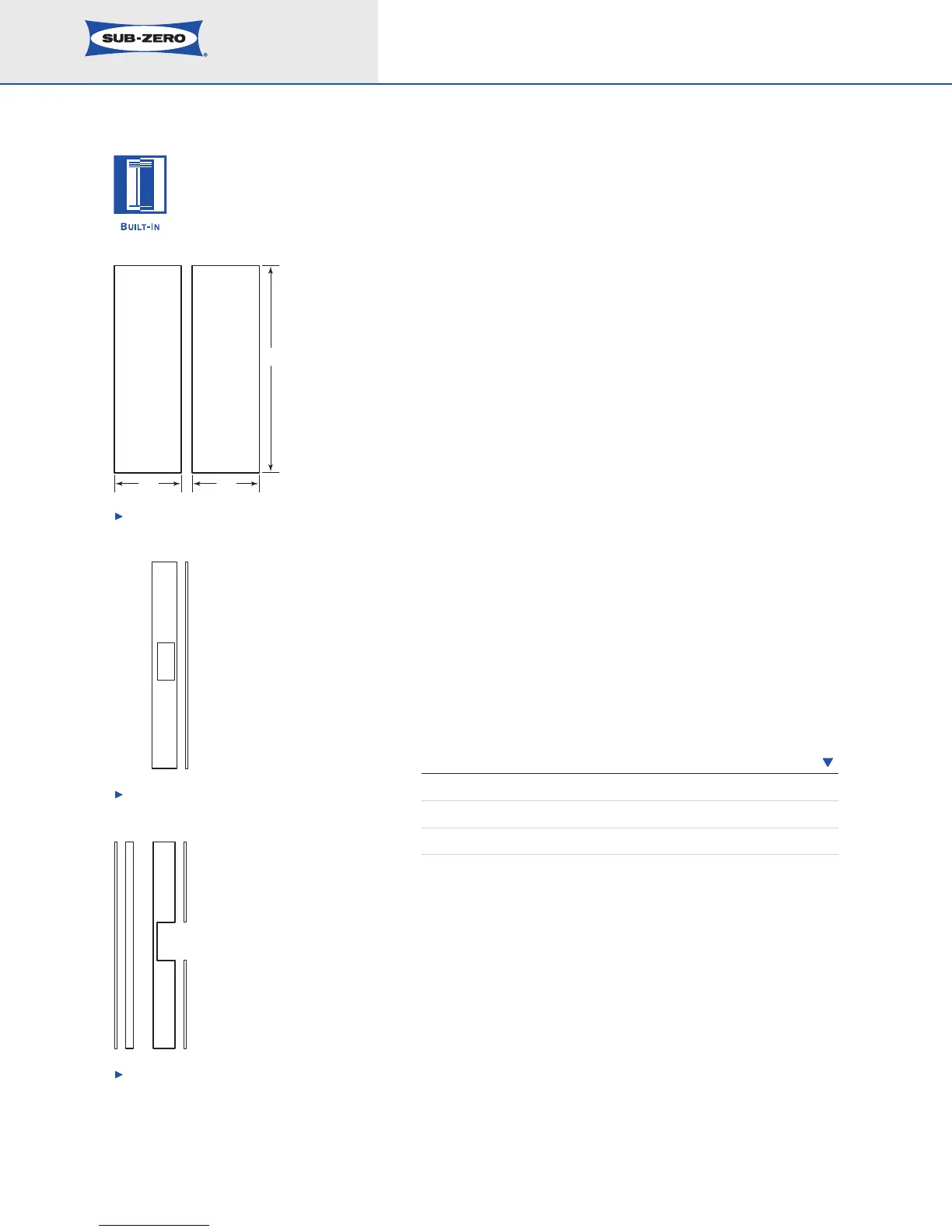

Partial Framed Door Panels
(identical in size)
Partial framed kit
F
ramed retrofit kit
