16
SUB-ZERO INTEGRATED USE & CARE
DRAWER COMPARTMENT LIGHTING
Each drawer compartment of Integrated tall
and base units have a standard 25-watt
a
ppliance bulb (part #3030060) recessed into
the top of the compartment. Refer to the
illustration below.
To replace the light bulb in a drawer compart-
ment, you must pull the drawer out to its full
extension or remove the drawer completely.
Refer to Drawer Removal on page 12.
Remove the bulb by unscrewing it from its
socket. Replace the bulb and follow the reverse
steps to reinstall the drawer.
LIGHTING INFORMATION
TOP COMPARTMENT LIGHTING
The top compartment of the Integrated tall
unit contains standard 40-watt appliance bulbs
(part #3030030).
To replace the light bulbs in the top compart-
ment, you’ll need to remove the light shield.
Place your hands under the light shield and
release the two clips on the back of the light
shield, then lift up and slide back slowly until
the key slots on the side of the light shield
drop past the mounting studs in the side walls.
Remove the light shield. The bulbs are now
accessible. Refer to the illustration below.
Replace the bulbs and follow the reverse steps
to reposition the light shield.

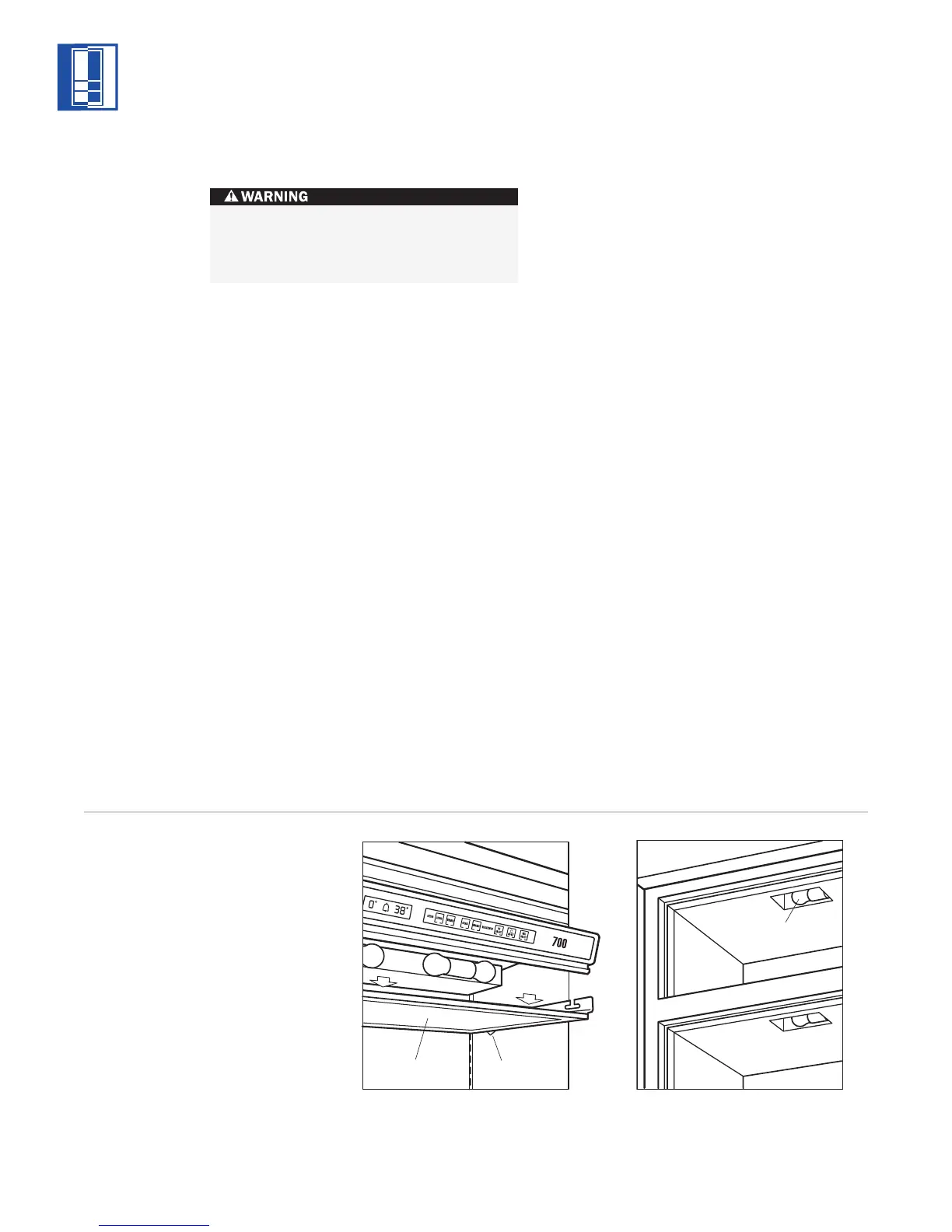

Drawer Compartment
Lighting
Light bulb location in top
compartment
Light bulb location in drawer
compartment
Shut off power to the unit at the circuit
breaker before replacing light bulbs. Wear
protective gloves when handling bulbs.
