Icemaker Operation
Integrated (
Integrated (
700-
700-
2) Series
2) Series
6-3
#3756780 - Revision D - July, 2005
Ejector Blade Stop Position
(about 1:30 o'clock)
Ejector Blade Stalls on Ice
Motor On, Heater On
(1/2 Minute to 5 Minutes
about 4:00 o'clock)
Start Position
Thermostat Closes
Motor On, Heater On
Water Valve Energized
7.5 Seconds
140cc. or 4-3/4oz. Fill
(about 11:00 o'clock)
Thermistor Opens
in This Range of Rotation
Heater Off
6:00 o'clock (reference)
Additional Icemaker Operation Notes
NOTE 1: The ICE ON/OFF key at the control panel activates the icemaker system. If “ICE” is not displayed on the
LCD, the icemaker system is OFF.
NOTE 2: To allow ice to freeze fully and reduce effects of low water pressure, the electronic control system disables
the icemaker system for 45 minutes after each ice harvest (this does not
apply to the 700BFI-2). To
bypass the 45 minute dwell, press the ICE key to switch the ice making system OFF, then press the ICE
key again to cycle the ice making system back ON.
NOTE 3: The ice bucket activates a switch when in place. If the ice bucket is not in proper position, ice production
will stop.
NOTE 4: The icemaker shut-off arm must be in the “down / on” position for the icemaker to operate.
NOTE 5: The icemaker relay on the control board also controls the fill tube heater and water valve.
What Happens During Ejector Blade Rotation

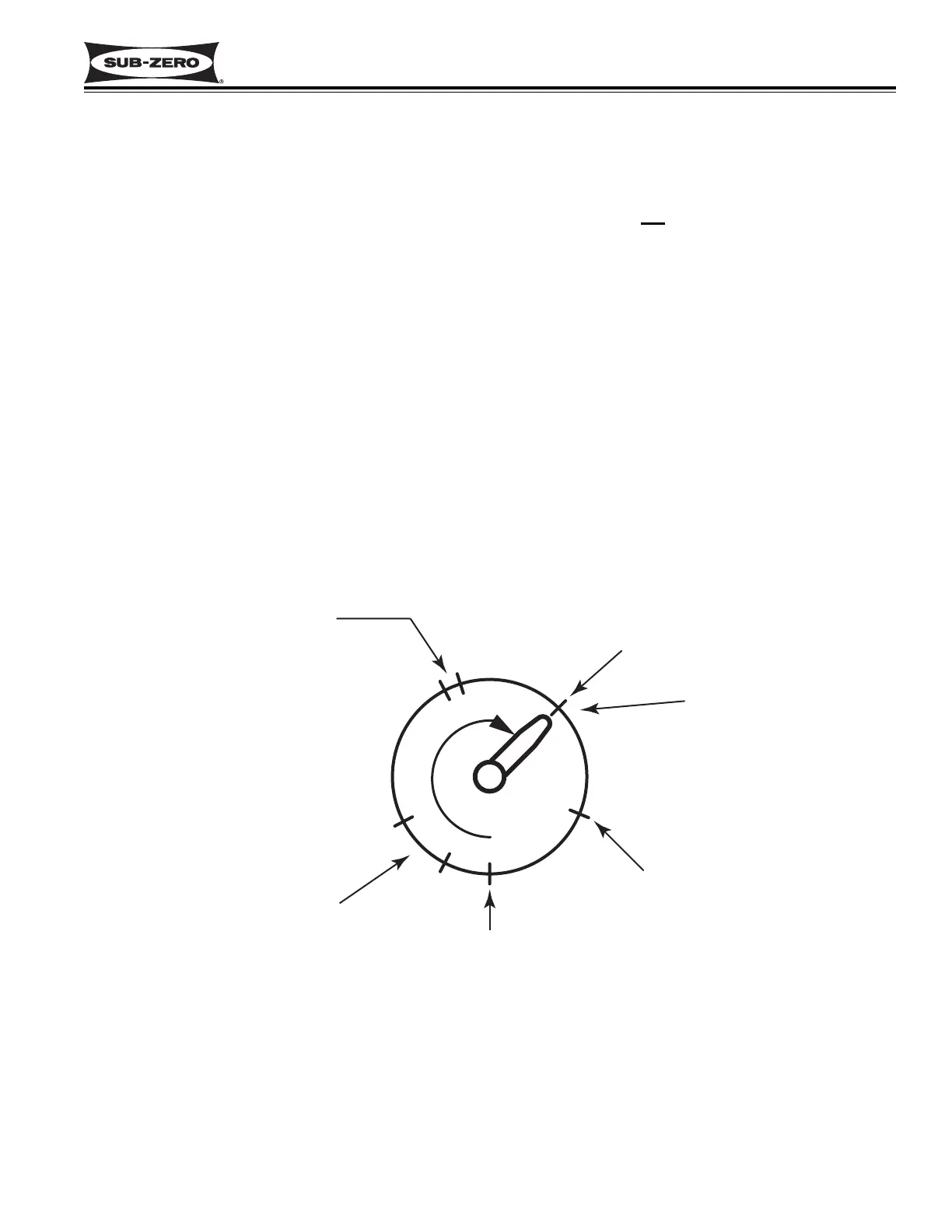

Figure 6-2 represents a view of the ejector blade from the front (or module side) of the icemaker. This diagram indi-
cates what happens during the rotation of the ejector blade and will assist the Service Technician in diagnosing ice-
maker problems
Figure 6-2. Ejector Blade Rotation Diagram
