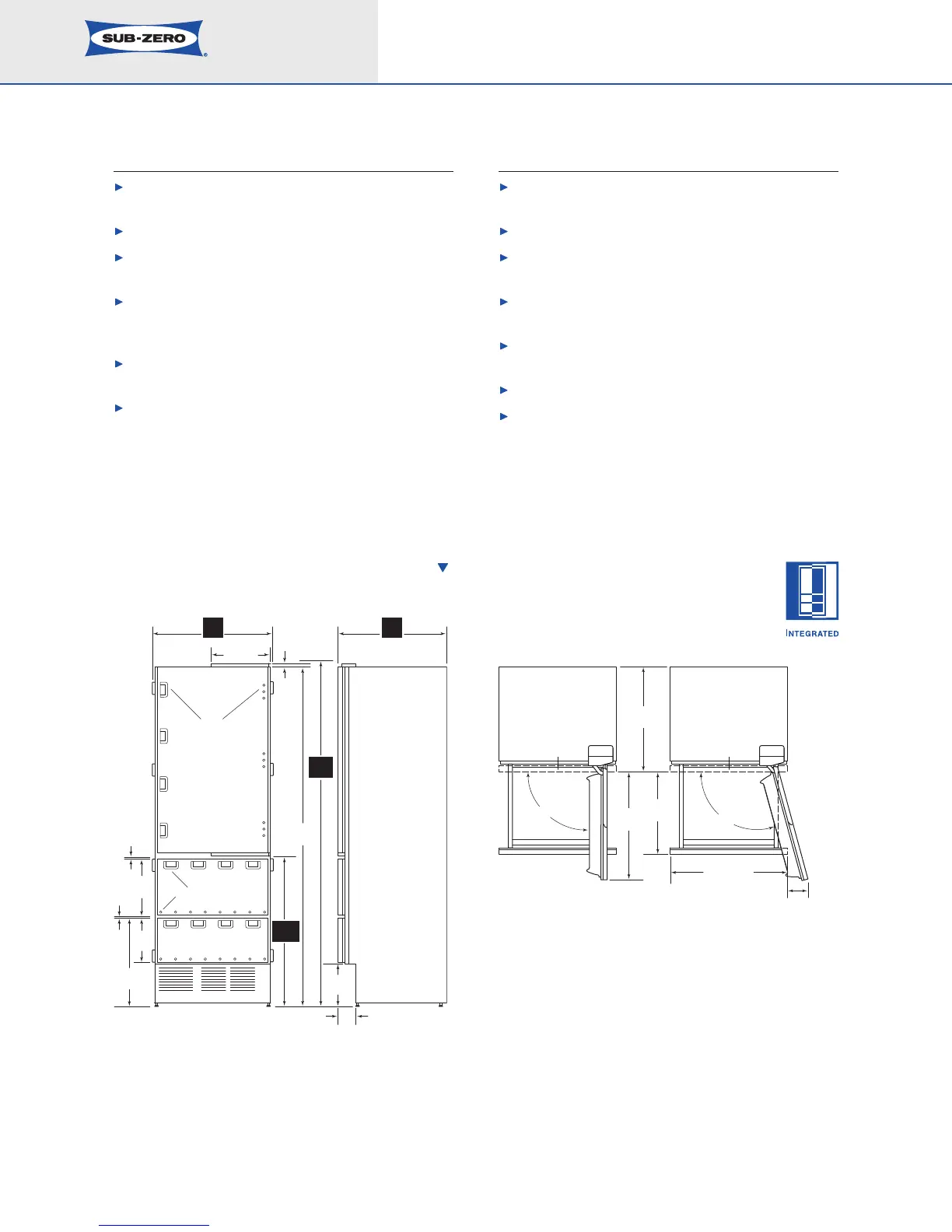

Planning Information
Integrated Model 700TC(I)
2
Dimensions may vary by ±
1
/8" (3).
Dimensions in parentheses are in
millimeters unless otherwise specified.
TOP OF
R
OUGH
OPENING
78
9
/16"*
(1995)
34
1
/2"*
(876)
1
4"
(356)
13
/16"
(21)
9
3
/4"
(248)
4"
(102)
80"*
(2032)
27"
(686)
24"
(610)
*
1
/2" (13)
+
_
ADJUSTMENT IN LEVELING LEGS
FRONT VIEW
SIDE VIEW
(UNIT DIMENSION) (UNIT DIMENSION)
3
/8"
(10)
13
1
/4"
(337)
1
/2"
(13)
10
1
/4"
(260)
20
3
/8"
(518)
DOOR
MOUNTING
DETAIL
DRAWER
MOUNTING DETAIL
OVERALL DIMENSIONS
105˚
90˚
90˚ DOOR OPENING
DOOR/ DRAWER
CLOSED
MAXIMUM DOOR OPENING
*
DOOR/ DRAWER PANEL THICKNESS NOT INCLUDED – DIMENSION WILL VARY WITH INSTALLATION
DOOR/ DRAWER
CLOSED
19
1
/2"*
(495)25
1
/2"*
(648)
24"
(610)
25
7
/8" (657)
4
5
/8"*(117)
TOP VIEW
FEATURES
Tall combination unit with upper cabinet
refrigerator and freezer storage drawers
Model 700TCI has automatic ice maker
Integrated design for "point-of-use" refriger-
ation anywhere in the home
Dual refrigeration system with two distinct
temperature zones ensures the freshest food
and energy efficiency
Electronic digital controls are up front and
easy to use
Flat to the ceiling bright lighting in cabinet
and drawers
Door alarm will let you know with an audible
beeping if a door or drawer is left open
Adjustable, spill-proof glass shelves
Refrigerator deli drawer for storage of
smaller items
The exclusive dual-action hinge has a built-in
90˚ door stop
Meets strict Department of Energy require-
ments
UL approved for US and Canada
Two, five and twelve year residential
warranty – exclusions apply; warranty
information can be found on our website,
subzer
o.com
