Panel Installation 32
Grille panel dimensions listed are for a standard 84" (2134)
finished height. For an 83" (2108) finished height, subtract
1"
(25) from grille panel height dimensions. For an 88" (2235)
finished height, add 4" (102) to height dimensions. An 83"
(2108) or 88" (2235) panel grille must be ordered to accept an
83"
(2108) or 88" (2235) custom panel. Width dimensions do
not vary.
Flush Inset Panel Specifications
Models BI-30U and BI-30UG
REFRIGERATOR WH
Flush Inset Panel 31" (787) 50
1
/8" (1273)
Spacer Panel 29
1
/8" (740) 49
5
/16" (1253)
Backer Panel 29
3
/4" (756) 49
15
/16" (1268)
FREEZER WH
Flush Inset Panel 31" (787) 19" (483)
Spacer Panel 29
1
/8" (740) 18
1
/16" (459)
Backer Panel 29
3
/4" (756) 18
11
/16" (475)
GRILLE WH
Flush Inset Panel 31" (787) 9
1
/4" (235)
Spacer Panel 29
1
/8" (740) 8
5
/16" (211)
Backer Panel 29
3
/4" (756) 8
15
/16" (227)
BI-30UG WH
Window Cut-Out 19
1
/2" (495) 39
5
/8" (1006)
AB
Cut-Out Location 5
3
/4" (146) 5
1
/4" (133)
Models BI-36R, BI-36RG and BI-36F
REFRIGERATOR / FREEZER WH
Flush Inset Panel 37" (940) 69
3
/4" (1772)
Spacer Panel 35
1
/8" (892) 68
15
/16" (1751)
Backer Panel 35
3
/4" (908) 69
9
/16" (1767)
GRILLE WH
Flush Inset Panel 37" (940) 9
1
/4" (235)
Spacer Panel 35
1
/8" (892) 8
5
/16" (211)
Backer Panel 35
3
/4" (908) 8
15
/16" (227)
BI-36RG WH
Window Cut-Out 25
1
/2" (648) 54
1
/8" (1375)
AB
Cut-Out Location 5
3
/4" (146) 10
3
/8" (264)
Models BI-36U and BI-36UG
REFRIGERATOR WH
Flush Inset Panel 37" (940) 50
1
/8" (1273)
Spacer Panel 35
1
/8" (892) 49
5
/16" (1253)
Backer Panel 35
3
/4" (908) 49
15
/16" (1268)
FREEZER WH
Flush Inset Panel 37" (940) 19" (483)
Spacer Panel 35
1
/8" (892) 18
1
/16" (459)
Backer Panel 35
3
/4" (908) 18
11
/16" (475)
GRILLE WH
Flush Inset Panel 37" (940) 9
1
/4" (235)
Spacer Panel 35
1
/8" (892) 8
5
/16" (211)
Backer Panel 35
3
/4" (908) 8
15
/16" (227)
BI-36UG WH
Window Cut-Out 25
1
/2" (648) 39
5
/8" (1006)
AB
Cut-Out Location 5
3
/4" (146) 5
1
/4" (133)

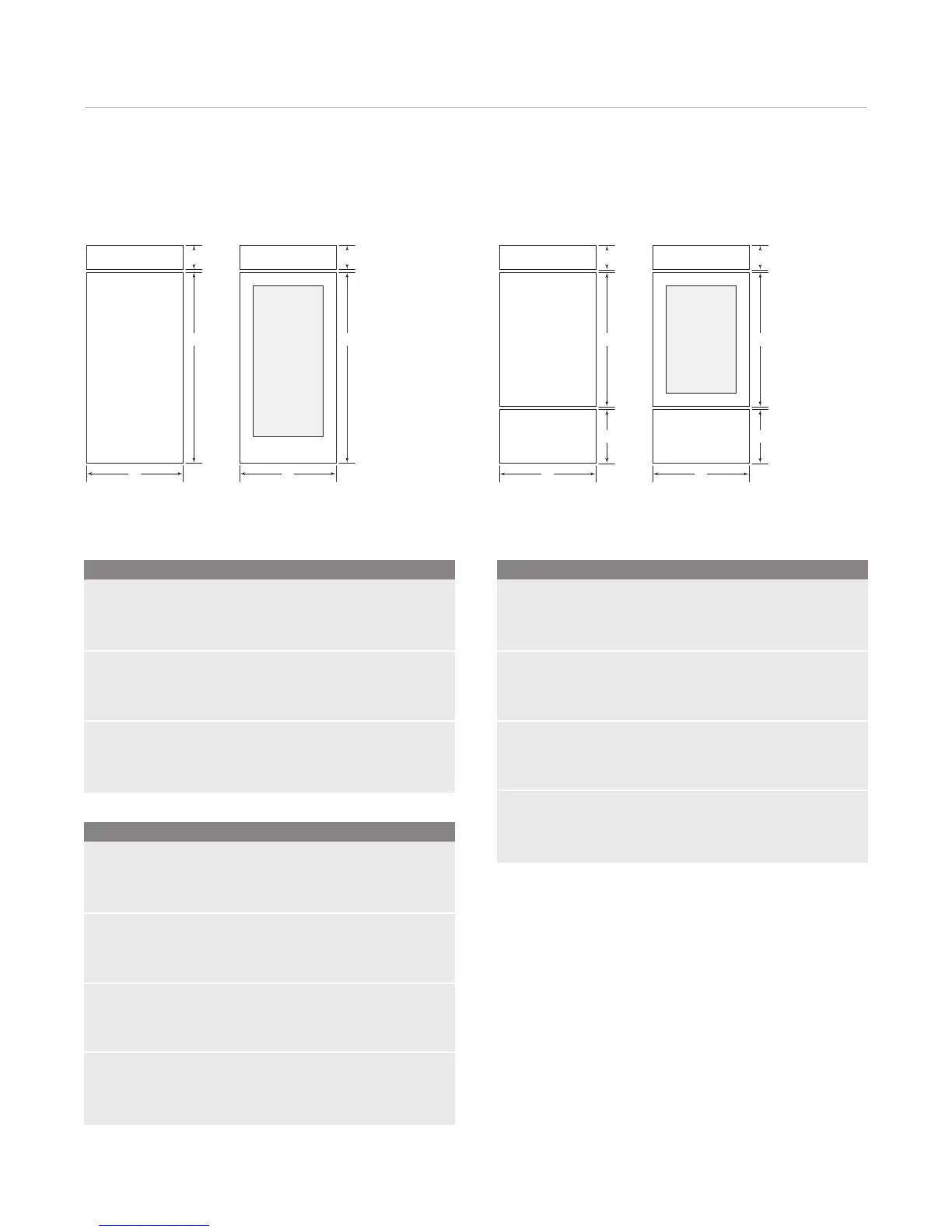

BI-36R / BI-36F BI-36RG
BI-30U / BI-36U BI-30UG / BI-36UG
H
H
W
H
H
W
AA
A
B
H
H
H
W
AA
B
B
H
H
H
W
