17
Dimensions in parentheses are in
millimeters unless otherwise specified.
PA N E L INSTALLATION
To help with the placement of the drawer
panels, examine the lower ’L’ bracket and
panel to determine the slotted holes on the
bracket that will be used. Then position screws
into the lower portion of the drawer that
correspond with these slots. Leave these
screws out just enough that the slotted holes
in the bracket will slide under the heads.
With the two mounting brackets in place,
install the drawer panel by engaging the top
tabbed bracket first, then s lide the lower ’L’
bracket onto the positioning screws. Each
drawer panel can be adjusted
1
/4" (6) up and
down and side to s ide. Fasten all screws to the
lower ’L’ bracket to secure the drawer panel.
Refer to illustration 16 on page 16.
IMPORTANT NOTE:
Once drawer panels have
been adjusted for proper spacing, be sure to
reconnect the control cable on the base unit
only after you have installed the drawer. Refer
to illustration 3 on page 10.
DUAL INSTALLATIONS
When two Integrated units are installed closer
than 2" (51) to one another, it is necessary to
use the Sub-Zero dual installation heater kit
(7007529 or 7007530). The heater plate from
this kit must be attached to the left side
exterior of the right hand unit before the units
are slid into position.
Contact your Sub-Zero dealer for the proper
components and installation instructions.
For questions relative to the installation, call
Sub-Zero at 800-222-7820.

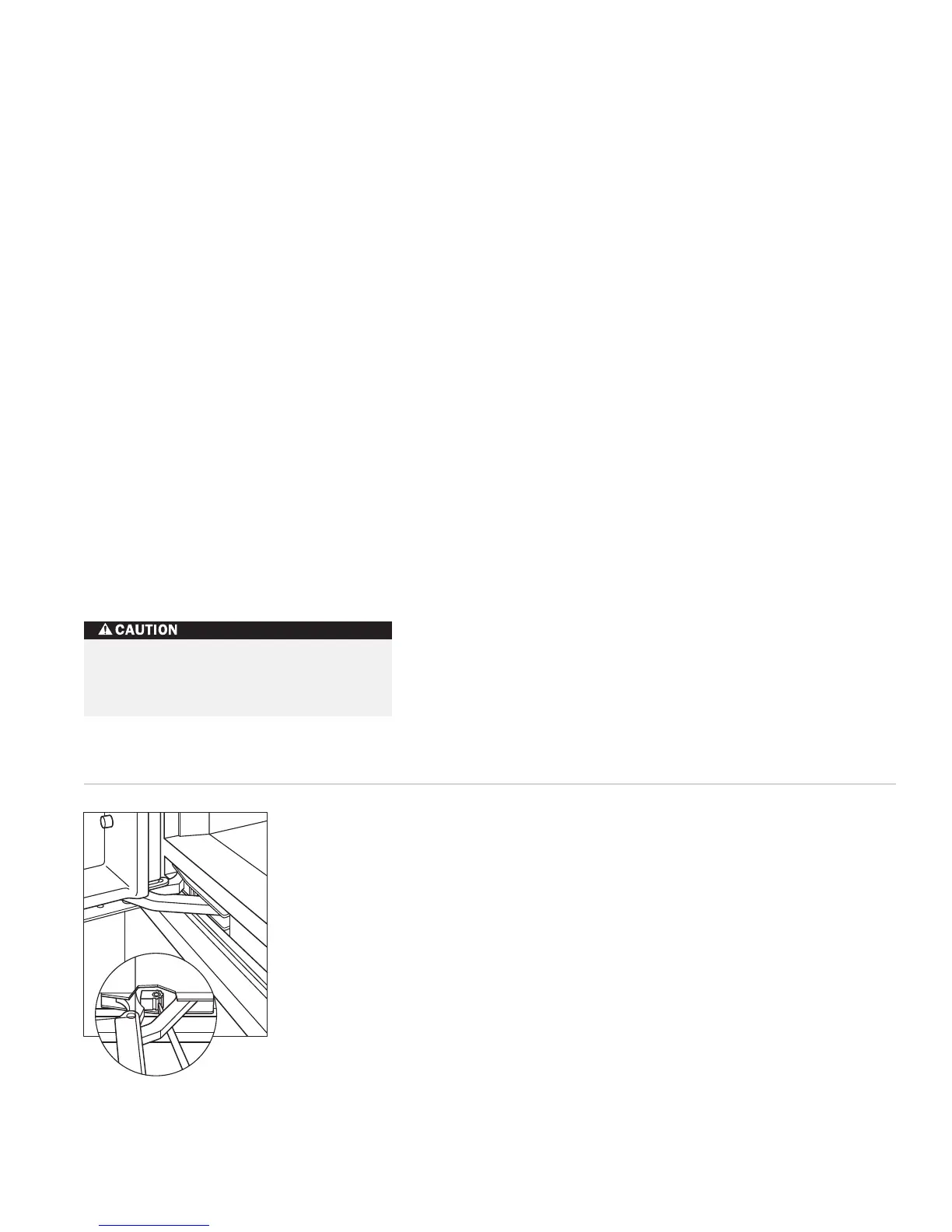

90-DEGREE DOOR STOP
All Integrated tall units have a 90-degree door
stop built into the hinge system. Use the blade
edge of a standard screwdriver and rotate the
brass cam in the center portion of the hinge
until you reach the stop. You must make this
adjustment to both the bottom and top hinge.
Refer to illustration 17 below.
INTEGRATED INSTALLATION INSTRUCTIONS
Illus. 17
Exercise caution when drilling holes for
mounting hardware. This is especially
critical with inset panels.
ACCESSORIES
Optional acces-
sories are available
through your
Sub-Zero dealer. To
obtain local dealer
information, visit
the Showroom
Locator section of
our website,
subzero.com. For
questions relative
to the installation,
call Sub-Zero at
800-222-7820.
