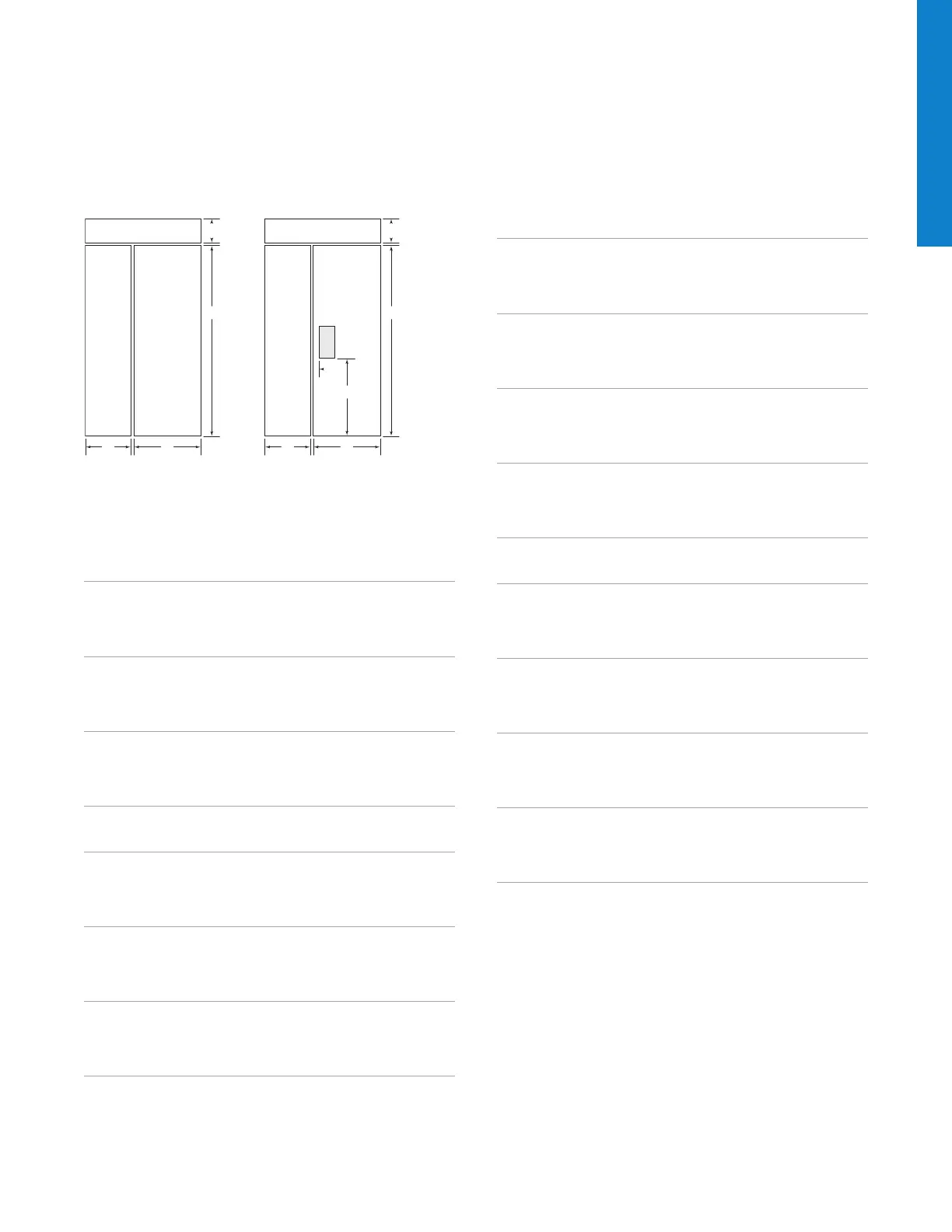

Overlay Panel Dimensions
BUILT-IN REFRIGERATION
H
H
H
W
AA
A
A
H
H
W
H
H
W
H
H
W
AA
A
B
H
H
H
W
H
W
H
H
WW
B
A
H
H
W
W W
H
H
H
W
AA
A
A
H
H
W
H
H
W
H
H
W
AA
A
B
H
H
H
W
H
W
H
H
WW
B
A
H
H
W
W W
MODEL BI-42UFD(ID)
REFRIGERATOR (2 PANELS) W H
Overlay Panel 20
7
/8" (530) 50
1
/8" (1273)
Spacer Panel 20" (508) 49
5
/16" (1253)
Backer Panel 20
5
/8" (524) 49
15
/16" (1268)
FREEZER W H
Overlay Panel 42" (1067) 19" (483)
Spacer Panel 41
1
/8" (1045) 18
1
/16" (459)
Backer Panel 41
3
/4" (1060) 18
11
/16" (475)
GRILLE W H
Overlay Panel 42" (1067) 9
1
/4" (235)*
Spacer Panel 41
1
/8" (1045) 8
5
/16" (211)
Backer Panel 41
3
/4" (1060) 8
15
/16" (227)
MODEL BI-36S
REFRIGERATOR W H
Overlay Panel 20
1
/16" (510) 69
3
/4" (1772)
Spacer Panel 19
3
/16" (487) 68
15
/16" (1751)
Backer Panel 19
13
/16" (503) 69
9
/16" (1767)
FREEZER W H
Overlay Panel 15
11
/16" (398) 69
3
/4" (1772)
Spacer Panel 14
13
/16" (376) 68
15
/16" (1751)
Backer Panel 15
7
/16" (392) 69
9
/16" (1767)
GRILLE W H
Overlay Panel 36" (914) 9
1
/4" (235)*
Spacer Panel 35
1
/8" (892) 8
5
/16" (211)
Backer Panel 35
3
/4" (908) 8
15
/16" (227)
MODEL BI-42S, BI-42SID, BI-42SD
REFRIGERATOR W H
Overlay Panel 25
1
/16" (637) 69
3
/4" (1772)
Spacer Panel 24
3
/16" (614) 68
15
/16" (1751)
Backer Panel 24
13
/16" (630) 69
9
/16" (1767)
FREEZER W H
Overlay Panel 16
11
/16" (424) 69
3
/4" (1772)
Spacer Panel 15
13
/16" (402) 68
15
/16" (1751)
Backer Panel 16
7
/16" (418) 69
9
/16" (1767)
GRILLE W H
Overlay Panel 42" (1067) 9
1
/4" (235)*
Spacer Panel 41
1
/8" (1045) 8
5
/16" (211)
Backer Panel 41
3
/4" (1060) 8
15
/16" (227)
BI-42SD W H
Dispenser Cut-Out 5
7
/8" (149) 12
7
/16" (316)
A B
Cut-Out Location 2" (51) 28
13
/16" (732)
MODEL BI-48S, BI-48SID, BI-48SD
REFRIGERATOR W H
Overlay Panel 28
3
/4" (730) 69
3
/4" (1772)
Spacer Panel 27
7
/8" (708) 68
15
/16" (1751)
Backer Panel 28
1
/2" (724) 69
9
/16" (1767)
FREEZER W H
Overlay Panel 19" (483) 69
3
/4" (1772)
Spacer Panel 18
1
/8" (460) 68
15
/16" (1751)
Backer Panel 18
3
/4" (476) 69
9
/16" (1767)
GRILLE W H
Overlay Panel 48" (1219) 9
1
/4" (235)*
Spacer Panel 47
1
/8" (1197) 8
5
/16" (211)
Backer Panel 47
3
/4" (1213) 8
15
/16" (227)
BI-48SD W H
Dispenser Cut-Out 5
7
/8" (149) 12
7
/16" (316)
A B
Cut-Out Location 2" (51) 28
13
/16" (732)
*Panel height may be increased by
7
/16" (11) to hide upper main frame. Also
refer to built-in panel congurator at subzero.com/trade/panels.
Grille panel dimensions are for standard 84"
(2134) overall unit height. For
83"
(2108) height, subtract 1" (25) from grille panel height dimensions and for
88"
(2235) height, add 4" (102). A specic panel grille must be ordered for an
83" or 88" overall unit height.
