WINE STORAGE
Custom Panel—WS-30 | BW-30
FLUSH INSET
The ush inset application is an overlay model with ush
inset panels. It is not a separate model.
The ush inset design allows custom panels to be installed
ush with adjacent cabinets. Similar to overlay, ush inset
panels are typically created by combining a
3
/4" (19) custom
panel, a .10"
(3) spacer panel and a
1
/4" (6) backer panel.
Refer to the illustrations for overlay panels on the previous
page.
For ush inset panels thicker than
3
/4" (19), a 90° door stop
may be required to prevent interference with adjacent cabi-
nets. Refer to the full-scale template on page 85.
PANEL REQUIREMENTS
WEIGHT PER PANEL MAX
Door 75 lb (34 kg)
Grille 13 lb (6 kg)
PANEL THICKNESS MIN
Flush Inset
5
/8" (16)

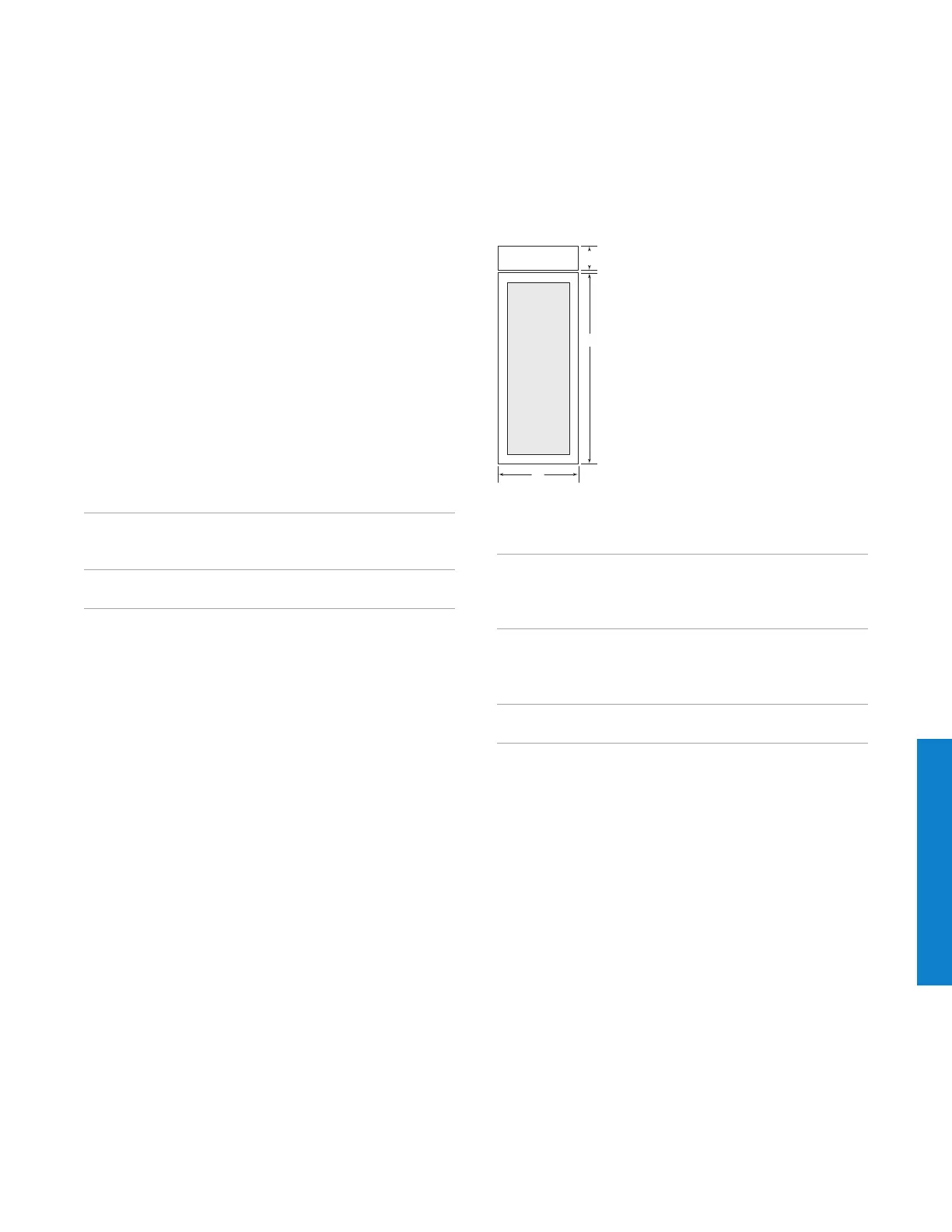

FLUSH INSET PANEL DIMENSIONS
H
H
W
A
A
WS-30, BW-30
FLUSH INSET PANELS
DOOR W H
Flush Inset Panel 31" (787) 69
3
/4" (1772)
Spacer Panel 29
1
/8" (740) 68
15
/16" (1751)
Backer Panel 29
3
/4" (756) 69
9
/16" (1767)
GRILLE W H
Flush Inset Panel 31" (787) 9
1
/4" (235)
Spacer Panel 29
1
/8" (740) 8
5
/16" (211)
Backer Panel 29
3
/4" (756) 8
15
/16" (227)
STILES | RAILS A
Minimum 3
3
/4" (95)
Grille panel dimensions are for standard 84"
(2134) overall unit height. For
83"
(2108) height, subtract 1" (25) from grille panel height dimensions and for
88"
(2235) height, add 4" (102). A specic panel grille must be ordered for an
83" or 88" overall unit height.
