Side Panel
The custom side panels must be a minimum of 24" (610)
deep and
1
/2" (13) thick. Routing will be necessary for the
side panel to t ush against the side of the unit. Refer to
the illustrations below.
When installing a built-in unit with a custom side panel, an
accessory kit is required. Stainless steel and white enamel
side panels are available through an authorized Sub-Zero
dealer. For local dealer information, visit the nd a show-
room section of our website, subzero.com.
84"
(2134)
24"
(610)
ROUT TO
3
/16" (5)
(OVER-AND-UNDER
MODELS)
OPTIONAL
TOE KICK
CUT-OUT
4" (102)
20
1
/2"
(521)
5
3
/4"
(146)
1
7
/8"(48)
1" (25)
4
1
/4" (108)
ROUT TO
1
/
8
"
(3)
FRONT
OF SIDE
PA NEL
2
5
/8"
(67)
MAIN
FRAME
SIDE PANEL
ROUTING
1" (25)
1
7
/8" (48)
1
/8" (3)
1
/2" (13)

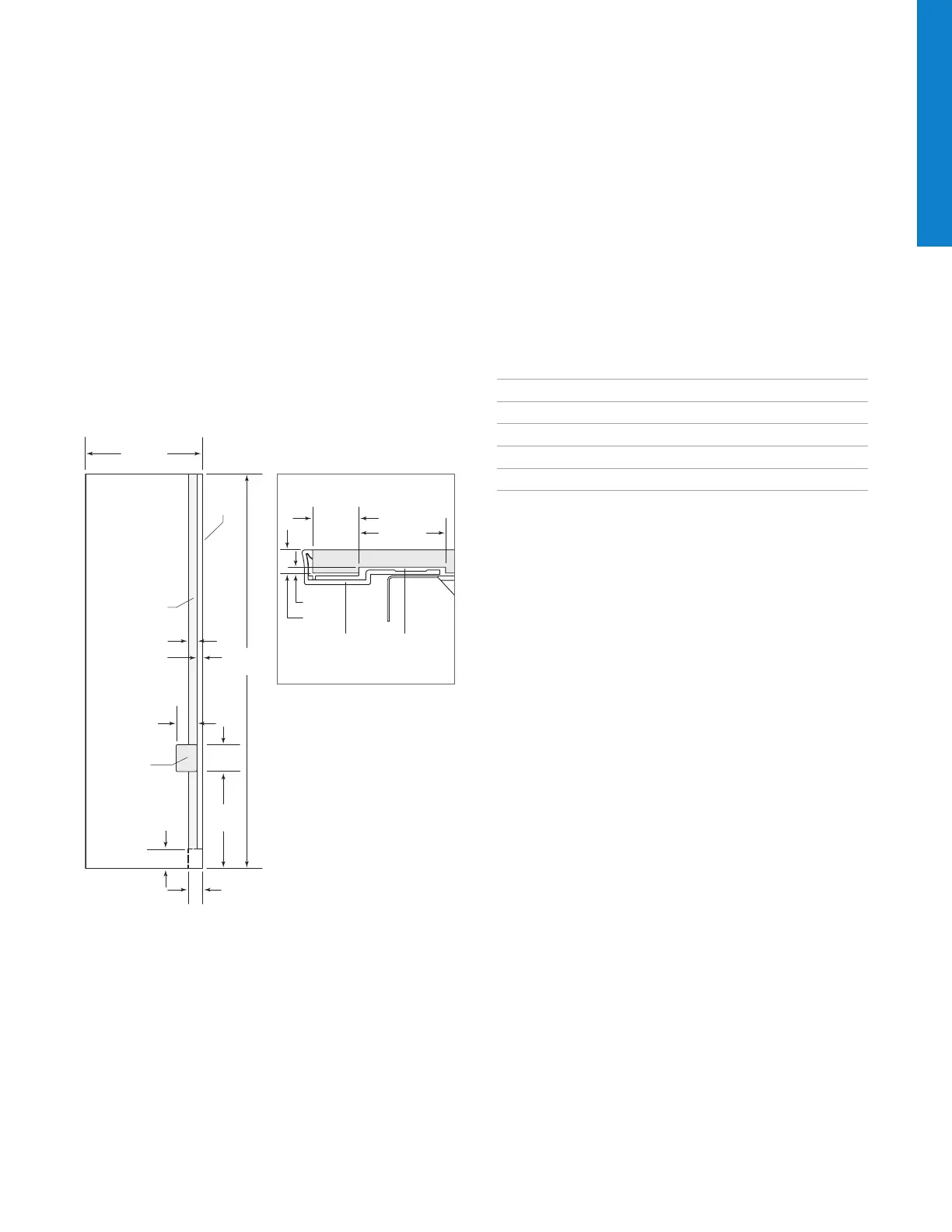

Side panel dimensions.
Routing detail.
BUILT-IN REFRIGERATION
Standard Handles
Optional stainless steel tubular and pro handles are avail-
able through an authorized Sub-Zero dealer. For local dealer
information, visit the nd a showroom section of our
website, subzero.com.
Refer to the chart below for standard handle lengths for
built-in models.
HANDLE LENGTH
TUBULAR PRO
Full Door 63
7
/8" (1622) 45
3
/16" (1147)
Over-and-Under Door 44
1
/4" (1124) 37
1
/2" (952)
30" Drawer 24
5
/16" (633) 17
9
/16" (447)
36" Drawer 30
5
/16" (770) 23
5
/8" (600)
42" Drawer 36
5
/16" (922) 29
5
/8" (753)
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
