77
WINE STORAGE

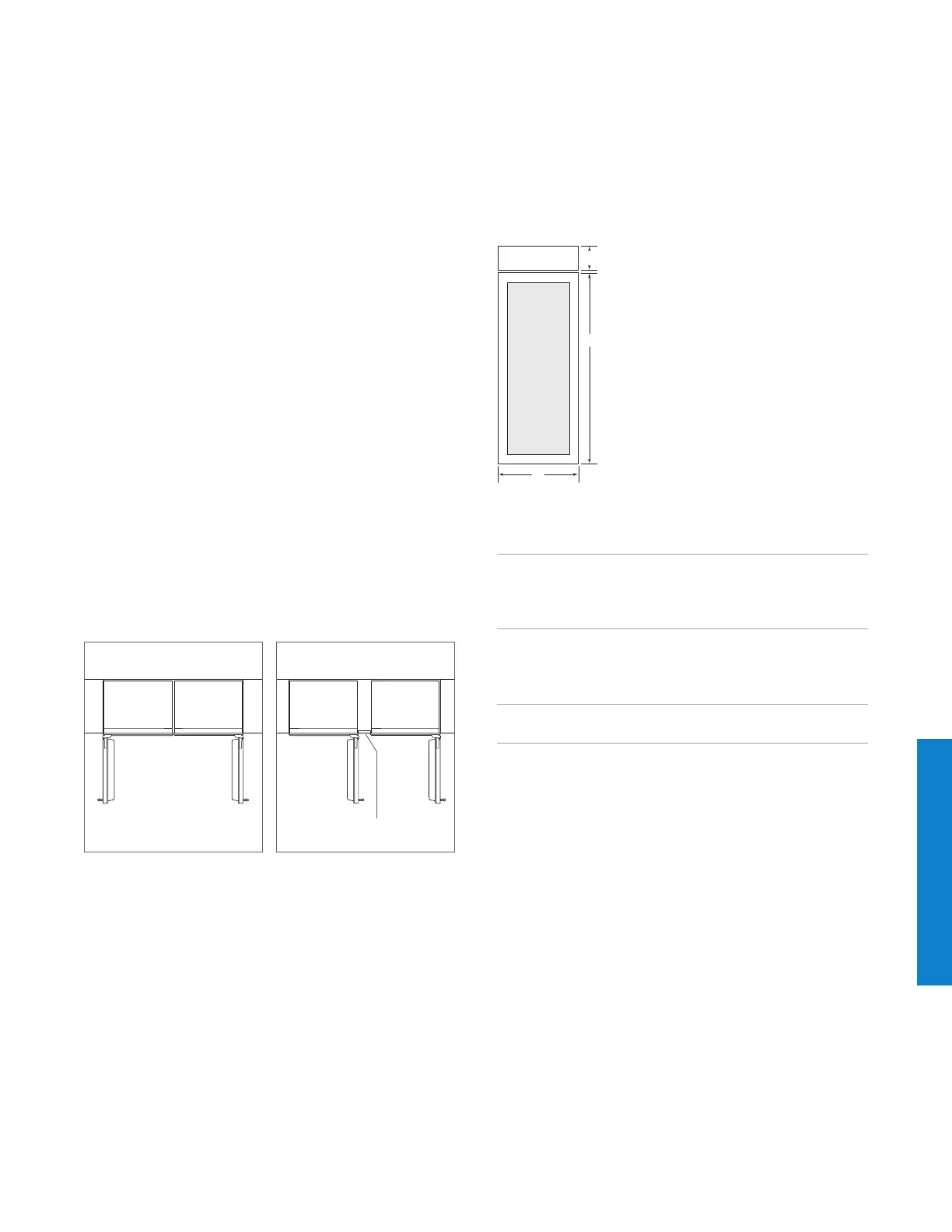

DUAL FLUSH INSET PANEL DIMENSIONS
H
H
W
A
A
WS-30, BW-30
DUAL FLUSH INSET PANELS
DOOR W H
Flush Inset Panel 30
1
/2" (775) 69
3
/4" (1772)
Spacer Panel 29
1
/8" (740) 68
15
/16" (1751)
Backer Panel 29
3
/4" (756) 69
9
/16" (1767)
GRILLE W H
Flush Inset Panel 30
1
/2" (775) 9
1
/4" (235)
Spacer Panel 29
1
/8" (740) 8
5
/16" (211)
Backer Panel 29
3
/4" (756) 8
15
/16" (227)
STILES | RAILS A
Minimum 3
3
/4" (95)
Grille panel dimensions are for standard 84"
(2134) overall unit height. For
83"
(2108) height, subtract 1" (25) from grille panel height dimensions and for
88"
(2235) height, add 4" (102). A specic panel grille must be ordered for an
83" or 88" overall unit height.
Custom Panel—WS-30 | BW-30
DUAL INSTALLATIONS
A dual installation kit may be required if two models WS-30
or a model WS-30 and built-in unit are installed side by side,
or two models BW-30 or a model BW-30 and built-in unit.
Installations without a custom ller strip require a dual instal-
lation kit. If a dual installation kit is not specied, a 2"
(51)
ller strip is recommended between units. Dual installations
without a ller strip can only be accomplished using two
units with opposite hinges. Refer to the illustrations below.
Dual installation kits are available through an authorized
Sub-Zero dealer. For local dealer information, visit the nd a
showroom section of our website, subzero.com. For ques-
tions regarding the installation, call Sub-Zero customer care
at 800-222-7820.
For dual standard installations, panel dimensions are the
same as for single installations. Refer to the chart on page
74. Panel dimensions and offsets for dual ush inset instal-
lations are listed on the following pages.
WITHOUT FILLER STRIP
FILLER STRIP
Opposite hinges.
Same side hinges.
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
