WINE STORAGE
DUAL INSTALLATION

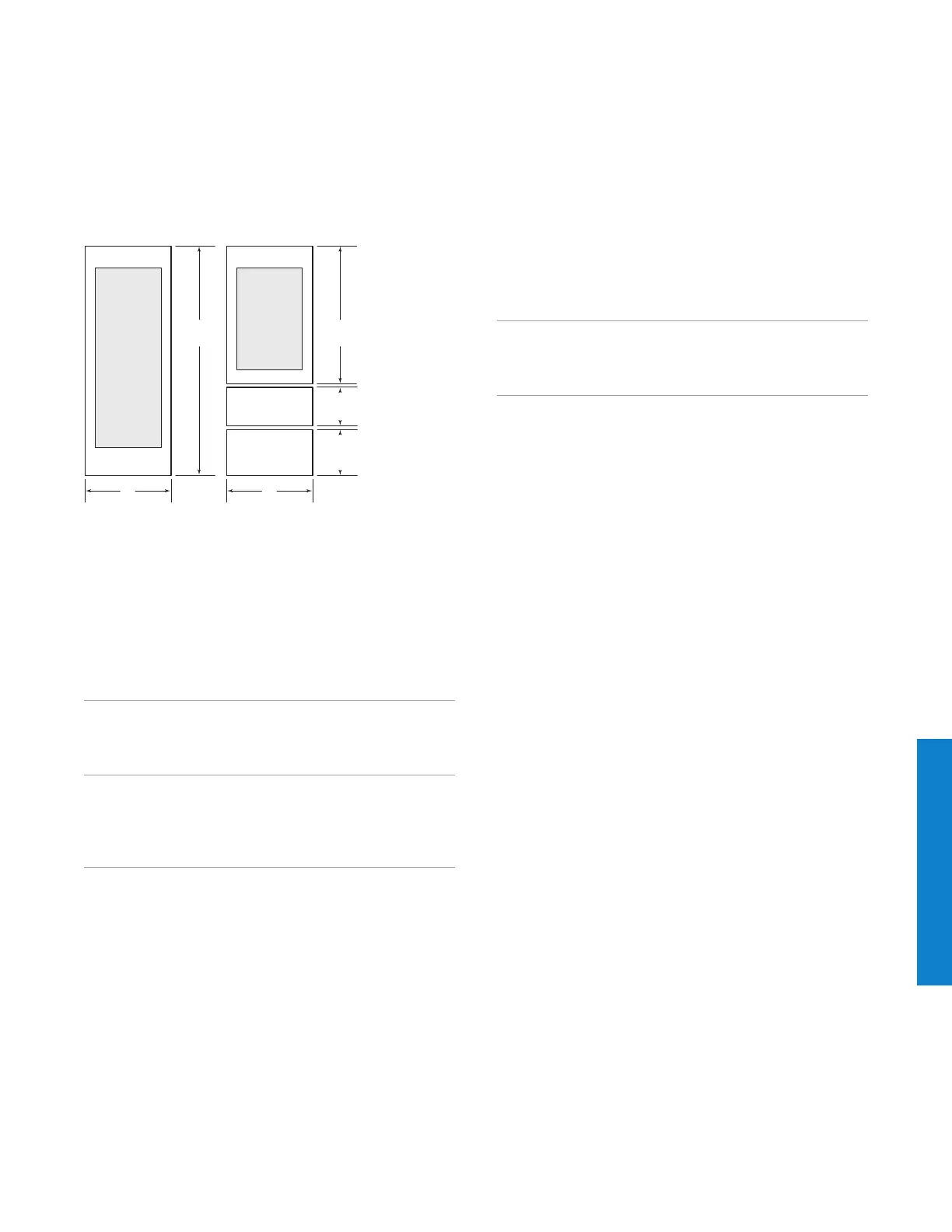

For dual installations, refer to the illustration for panel height
and the chart below for panel width.
PANEL WIDTH
MODEL W
18" Model 17
13
/16" (452)
24" Model 23
13
/16" (605)
30" Model 29
13
/16" (757)
BUILT-IN PRO 48 INTEGRATED WINE UNDERCOUNTER
Custom Panel—Integrated
TYPICAL PANEL DIMENSIONS
W
49
3
/8"
(1254)
13
9
/16"
(345)
16
11
/16"
(424)
W
79
7
/8"
(2029)
Column Tall
Typical panel dimensions are based on an 84" (2134) nished
height, 4"
(102) toe kick and
1
/8" (3) reveals. Panel dimen-
sions must be adjusted accordingly for all other installations.
Refer to the illustration for panel height and the chart below
for panel width.
PANEL WIDTH
MODEL W
18" Model 17
3
/4" (451)
24" Model 23
3
/4" (603)
30" Model 29
3
/4" (756)
STILES | RAILS MIN
Stiles 3
1
/4" (83)
Top Rail 7
3
/4" (197)
Bottom Rail (column) 9
1
/2" (241)
Bottom Rail (tall) 4
1
/2" (114)
