Model UC-15I (Undercounter Ice Machine)
Theory of Operation

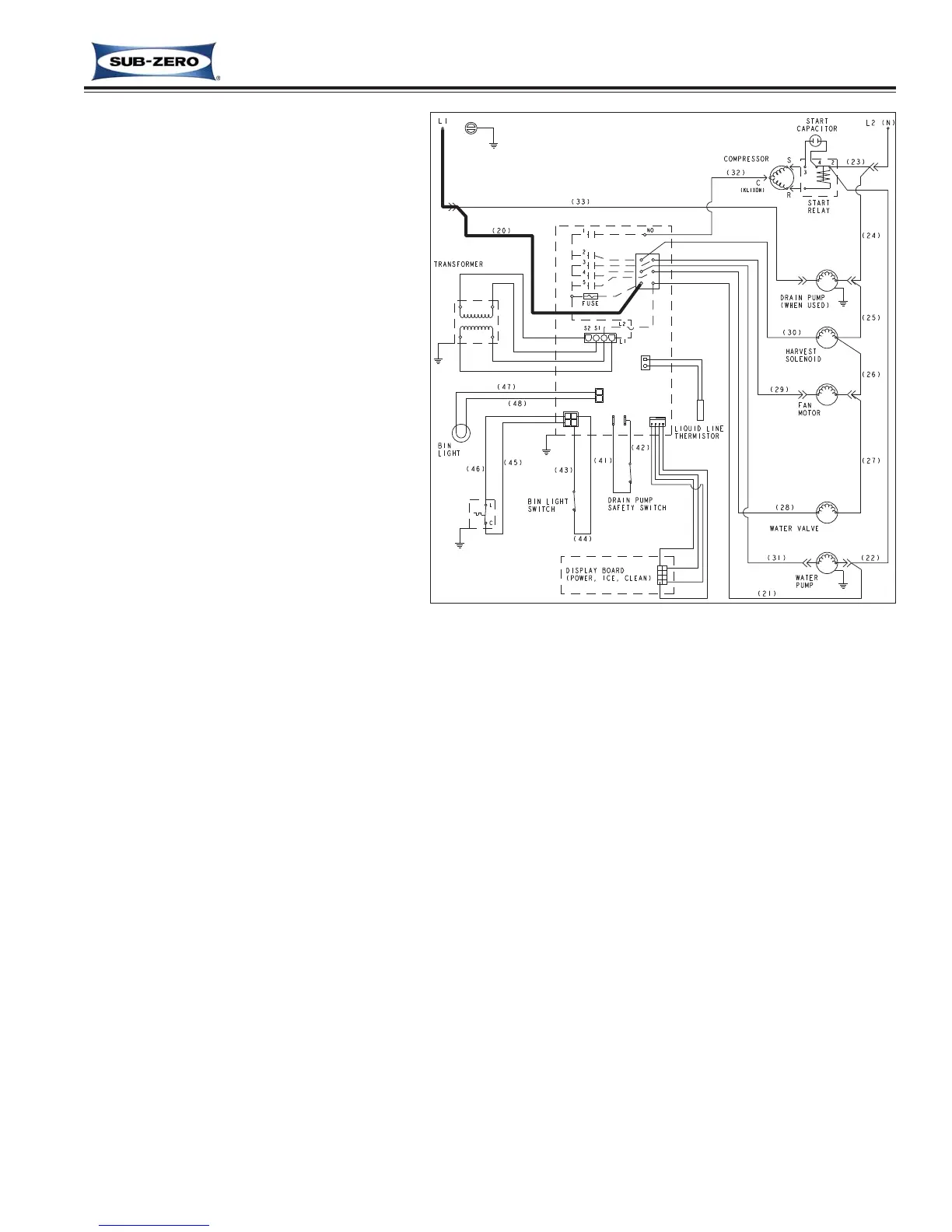

Figure 3-11. Wire Diagram - Automatic Shut-Off
Automatic Shut-off
If/when the ice in the bin reaches the bin
level thermostat, the thermostat will open,
interrupting ice production until enough ice
is removed/used or after enough ice melts
(See Figure 3-11).
NOTE: The bin level thermostat cut-in is
40°F (4.5°C) and cut-out is 34°F (1.0°C).
