Sub-Zero UC-15I

5-4
#7012423 - Revision A - August, 2009
Component Access / Removal
Model UC-15I (Undercounter Ice Machine)
Door
Door
Mounting
Screws

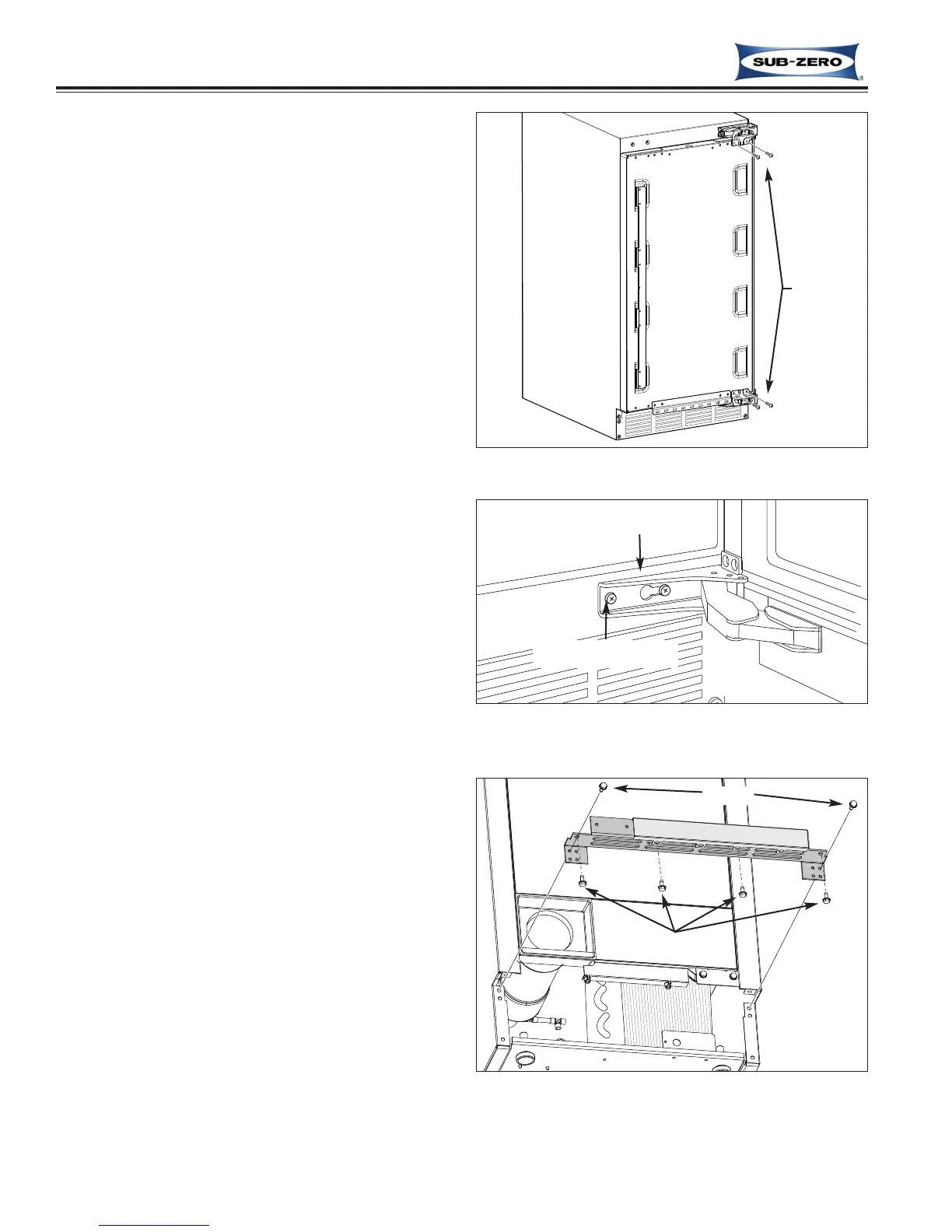

Figure 5-4. Door Removal
Figure 5-5. Hinge Removal
Bottom Hinge Shown
Door Assembly Removal
The door assembly is attached to the top and bottom
hinge assemblies with screws passing through the
hinge assemblies, from front to back, into the face of
the door.
To remove the door (See Figure 5-4):
1. Remove the door panel.
2. Extract the door mounting screws from the bottom
and top hinge assemblies, then pull the door from
the unit.
NOTE: To remove the door with the hinges, see Hinge
Assembly Removal instructions below, following steps 3
through 5 for both hinges.
Hinge Assembly Removal
The hinges are secured to the unit with screws that
pass through the hinge assembly, a hinge spacer
behind each hinge, and into the cabinet frame.
To remove a door hinge assembly (See Figure 5-5):
1. Remove the door panel.
2. Remove the door.
3. Extract outer most hinge screw from hinge bracket.
4. Loosen the screw at keyhole slot of hinge bracket.
5. Slide hinge assembly toward hinge side of unit until
screw head clears the keyhole slot, then pull hinge
assembly from the unit.
Trim Plate / Slide Cover Bracket Removal
The trim plate / slide cover bracket is held in place by
screws passing through the front flanges of the side
panels into the bracket. There are also screws that
pass up through the trim plate and slide cover into the
filter panel
To remove the trim plate and slide cover bracket, the
kickplate, door and lower hinge assembly must be
removed first, then (See Figure 5-6):
1. Extract the screws that hold the bracket to the side
panels and filter panel.
2. Lean the bracket forward, then pull the bracket from
behind the side panels and remove from unit.
Keyhole Slot With Screw
Extract Screw First
Figure 5-6. Trim Plate / Slide Cover Removal
Screws
Screws
