#7012423 - Revision A - August, 2009
Model UC-15I (Undercounter Ice Machine)
Component Access / Removal
Water Trough Removal
To remove the water trough (See Figure 5-22):
1. Depress tabs on right and left side of the water
trough.
2. Allow front of trough to drop as you pull forward to
disengage the rear pins, then pull from bin.
Spray Bar Assembly Removal and Disassembly
To remove the spray bar assembly, the ice chute and
water trough will need to be removed first, then (See
Figure 5-23):
1. At water pump outlet, disengage tube clamp teeth
and remove clamp from tube and pump outlet, then
pull tube up off of pump outlet.
2. Lift spray bar assembly up and pull forward out of
evaporator/spray bar enclosure.
3. With spray bar assembly removed, disengage
clamp from tube at spray bar inlet, then pull tube
from spray bar.
4. Unscrew water nozzles from spray bar.
5. Pull nozzle inserts out from spray bar outlets.
NOTES:
• The spray bar also disassembles for easy cleaning.
• When reassembling, apply food grade lubricant to
spray bar components when necessary.
Water Pump Removal
To remove the water pump, first remove the ice chute,
water trough and spray bar assembly, then (See Figure
5-24):
1. From inside ice bin, extract the mounting screw and
eccentric washer securing water pump to upper bin
liner.
2. Grasp pump and pull straight down until water
pump disengages and electrical connector is visi-
ble, then disconnect electrical leads.
3. Extract grounding screw and wire from top of pump
and pull pump from bin.

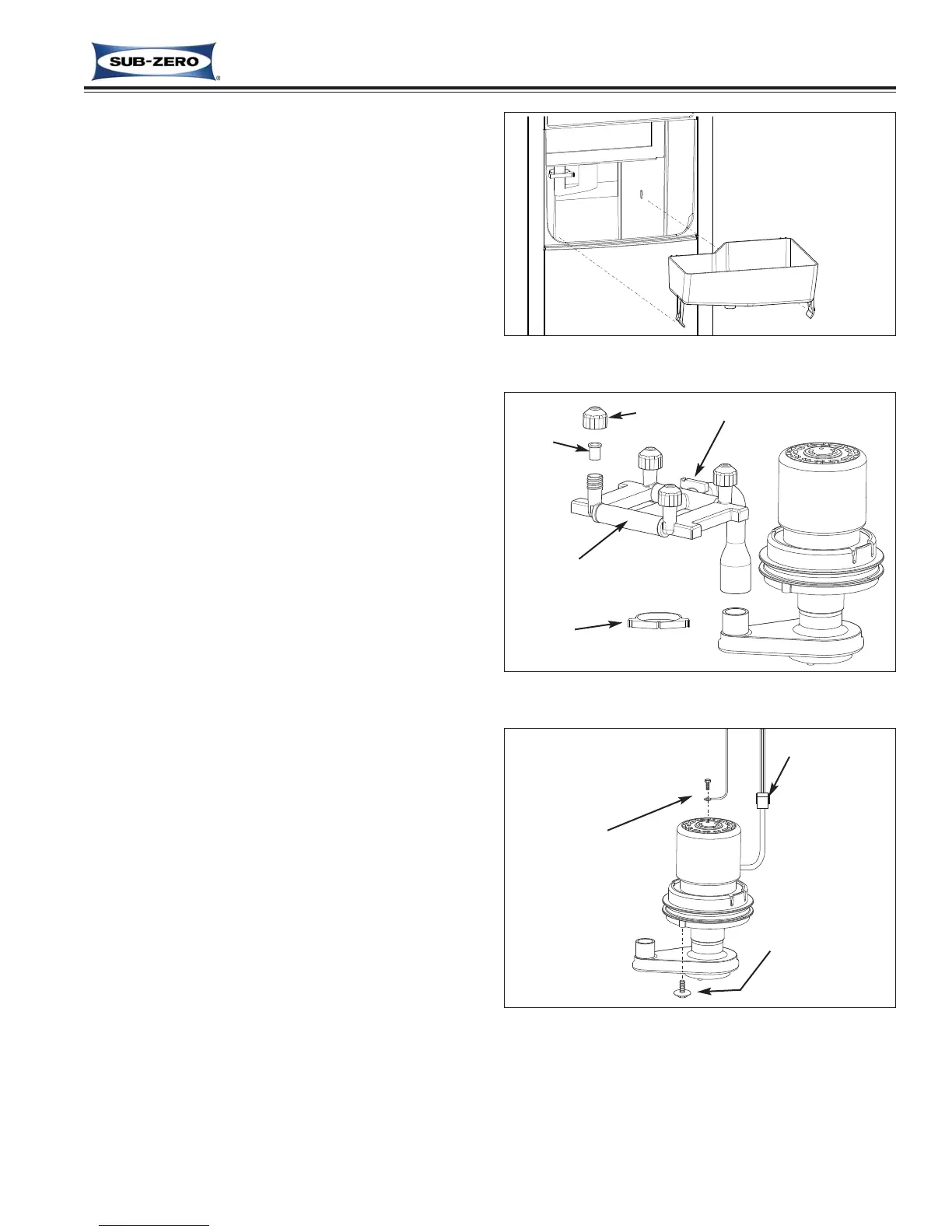

Figure 5-22. Water Trough Removal
Water Trough
Figure 5-23. Spray Bar Removal & Disassembly
Clamp
Water
Nozzle
Nozzle
Insert
Clamp
Spray Bar Assy
Water
Pump
Figure 5-24. Water Pump Removal
Ground Wire
and Screw
Electrical
Connections
Mounting Screw
and Washer
Water
Pump
