5-17
#7012423 - Revision A - August, 2009
Model UC-15I (Undercounter Ice Machine)
Component Access / Removal
Condenser Removal
The condenser has a mounting bracket that is secured
with screws to the condenser. The mounting bracket is
then secured to the unit base tray with screws along the
flange of the mounting bracket.
To remove the condenser, first remove the kickplate,
door, lower hinge assembly, trim plate, slide cover
bracket, water filter panel, back panel and lower back
utility panel, then after capturing the refrigerant from the
sealed system (See Figure 5-36):
1. Cut condenser inlet and outlet tubes approximately
1” from condenser stubs.
NOTE: Do not sweat tubing apart. Doing so will
induce moisture into the sealed system.
2. Remove fan motor mounting bracket.
3. Extract screws securing flange of the condenser
side brackets to the unit base tray.
4. Remove condenser from unit.
NOTE: Always replace the filter-drier when opening the
sealed system for service.

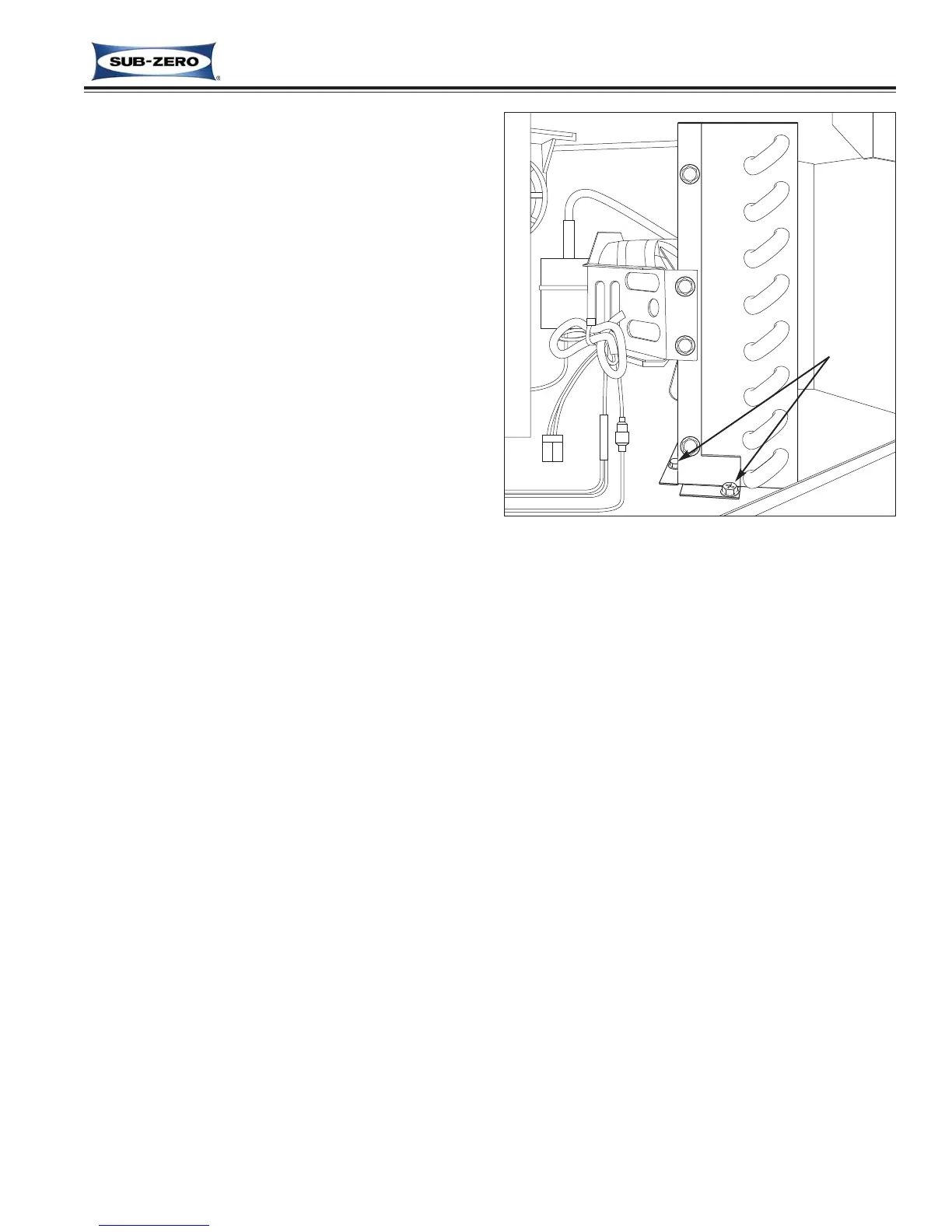

Figure 5-36. Condenser Removal (Front View)
Screws
Securing
Bracket to
Tray
